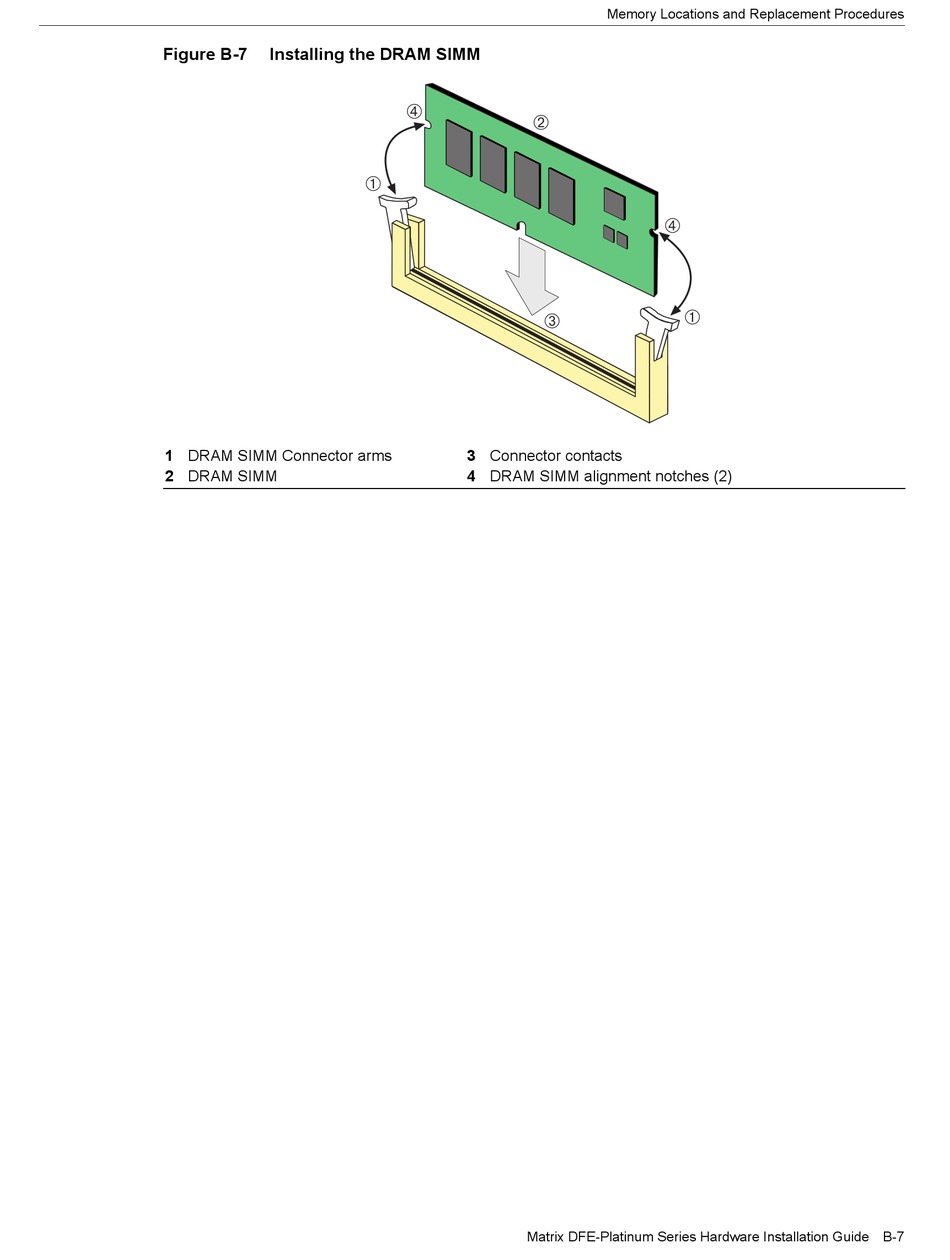

Figure B-7

Installing the DRAM SIMM

1 DRAM SIMM Connector arms
2 DRAM SIMM
Ã
Á
À
3 Connector contacts
4 DRAM SIMM alignment notches (2)
Matrix DFE-Platinum Series Hardware Installation Guide B-7
Memory Locations and Replacement Procedures
Ã
À
Â
