Four-Wire Crossover Cable Rj45 Pinouts, Connections Between Hub Devices; Four-Wire Straight-Through Cable Rj45 Pinouts, Connections Between Switches And End User - Enterasys Matrix 2G4082-25 Hardware Installation Manual

Connecting to the Network

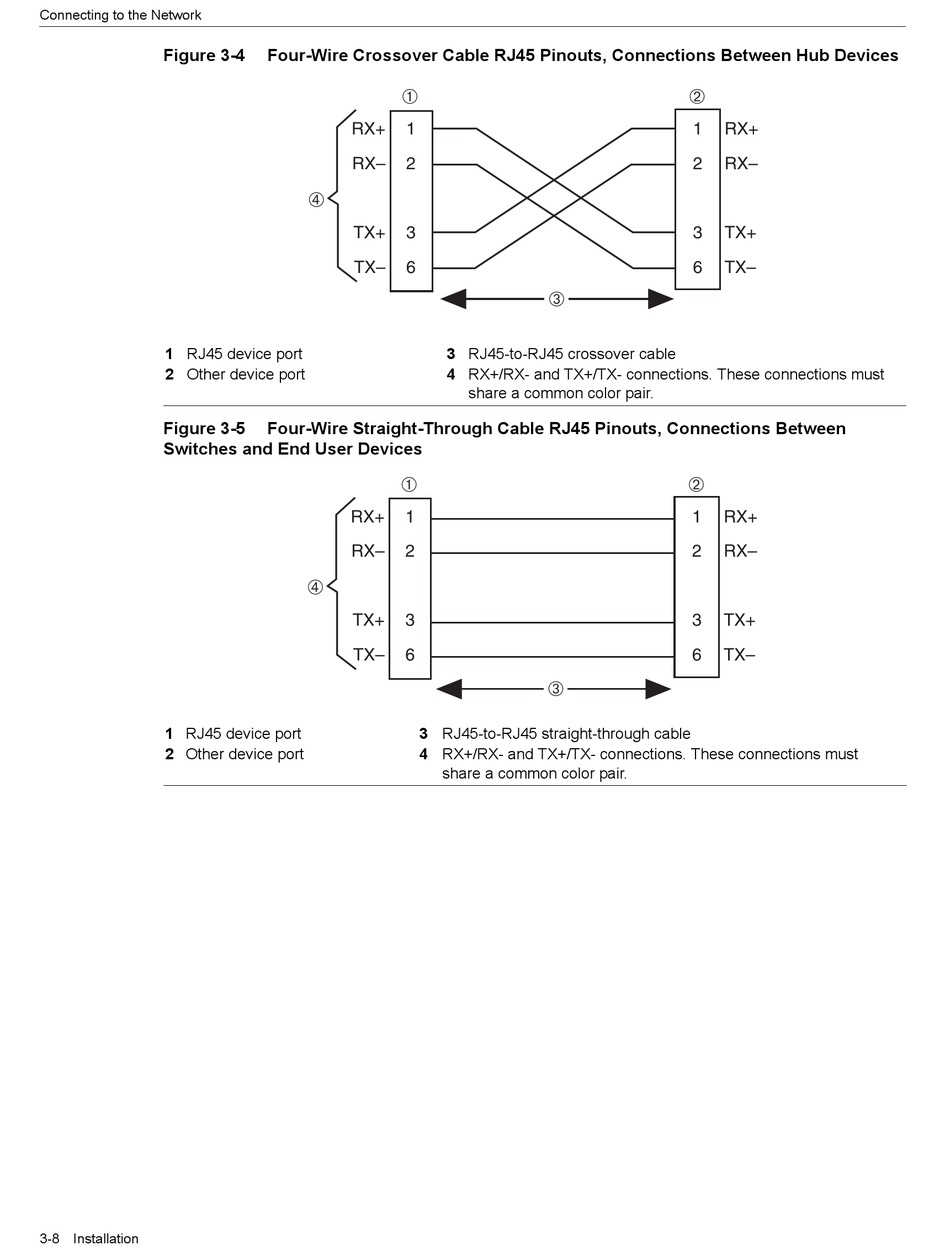

Figure 3-4
1 RJ45 device port
2 Other device port
Figure 3-5
Switches and End User Devices
1 RJ45 device port
2 Other device port
3-8 Installation

Four-Wire Crossover Cable RJ45 Pinouts, Connections Between Hub Devices

À
Ã
Four-Wire Straight-Through Cable RJ45 Pinouts, Connections Between
À
Ã
3 RJ45-to-RJ45 straight-through cable
4 RX+/RX- and TX+/TX- connections. These connections must
share a common color pair.
Â
3 RJ45-to-RJ45 crossover cable
4 RX+/RX- and TX+/TX- connections. These connections must
share a common color pair.
Â
Á
Á
