Installing the DIMM

Caution: Observe all Electrostatic Discharge (ESD) precautions when handling sensitive electronic
equipment.
Precaución: Al trabajar con equipos electrónicos sensibles, tome todas las precauciones de
seguridad para evitar descargas de electricidad estática.
To install a DIMM, refer to Figure
1. Insert the DIMM down between the connector fingers.
2. Pivot the DIMM downward so the tabs on the connector arms align with the two DIMM
alignment notches. With the two connector arms spread outward, push the DIMM down
between the connector arms. Then release the two connector arms to lock the DIMM into
place.

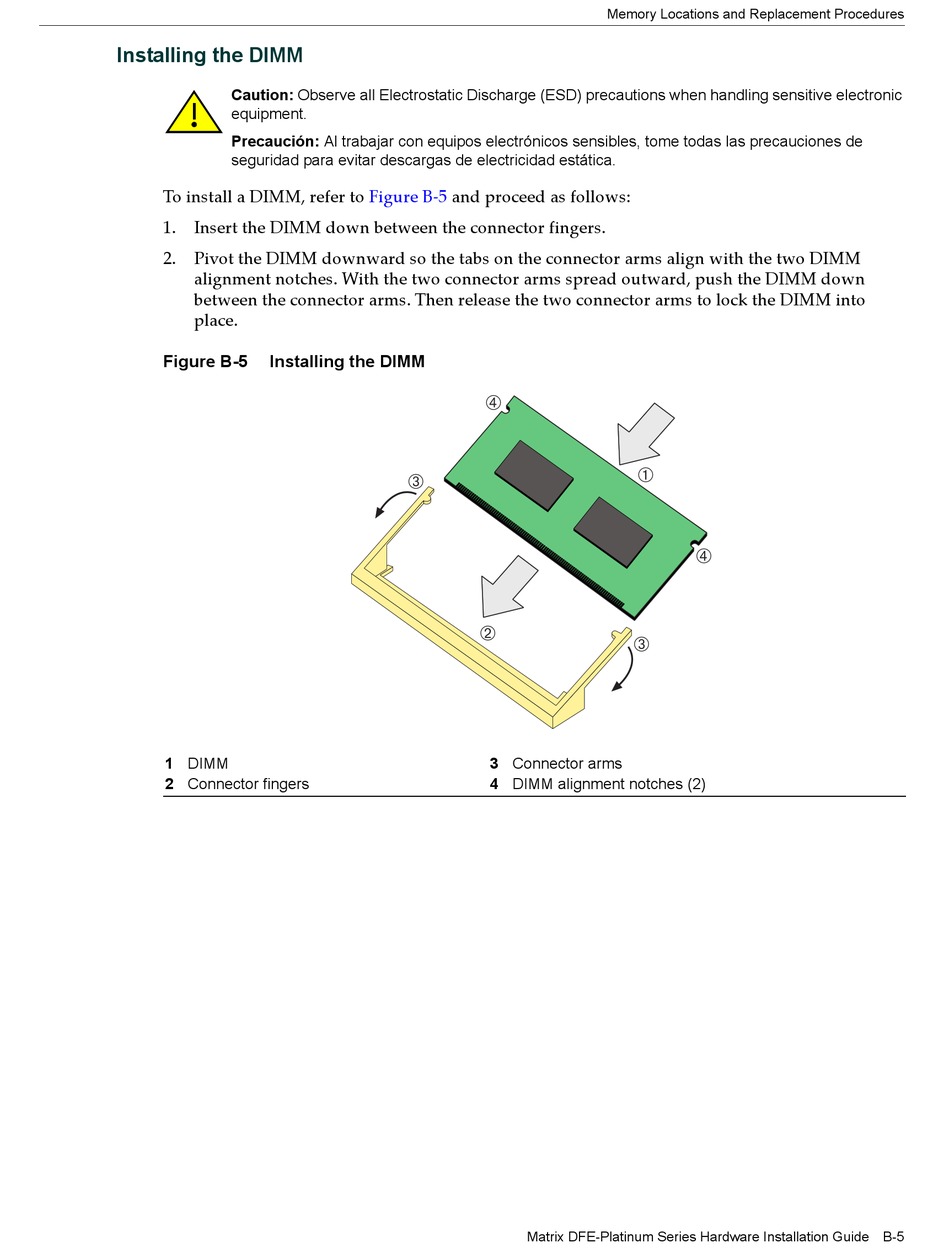

Figure B-5 Installing the DIMM
1 DIMM
2 Connector fingers
B‐5 and proceed as follows:
Ã
Â
Á
3 Connector arms
4 DIMM alignment notches (2)
Matrix DFE-Platinum Series Hardware Installation Guide B-5
Memory Locations and Replacement Procedures
