Location of Memory Modules

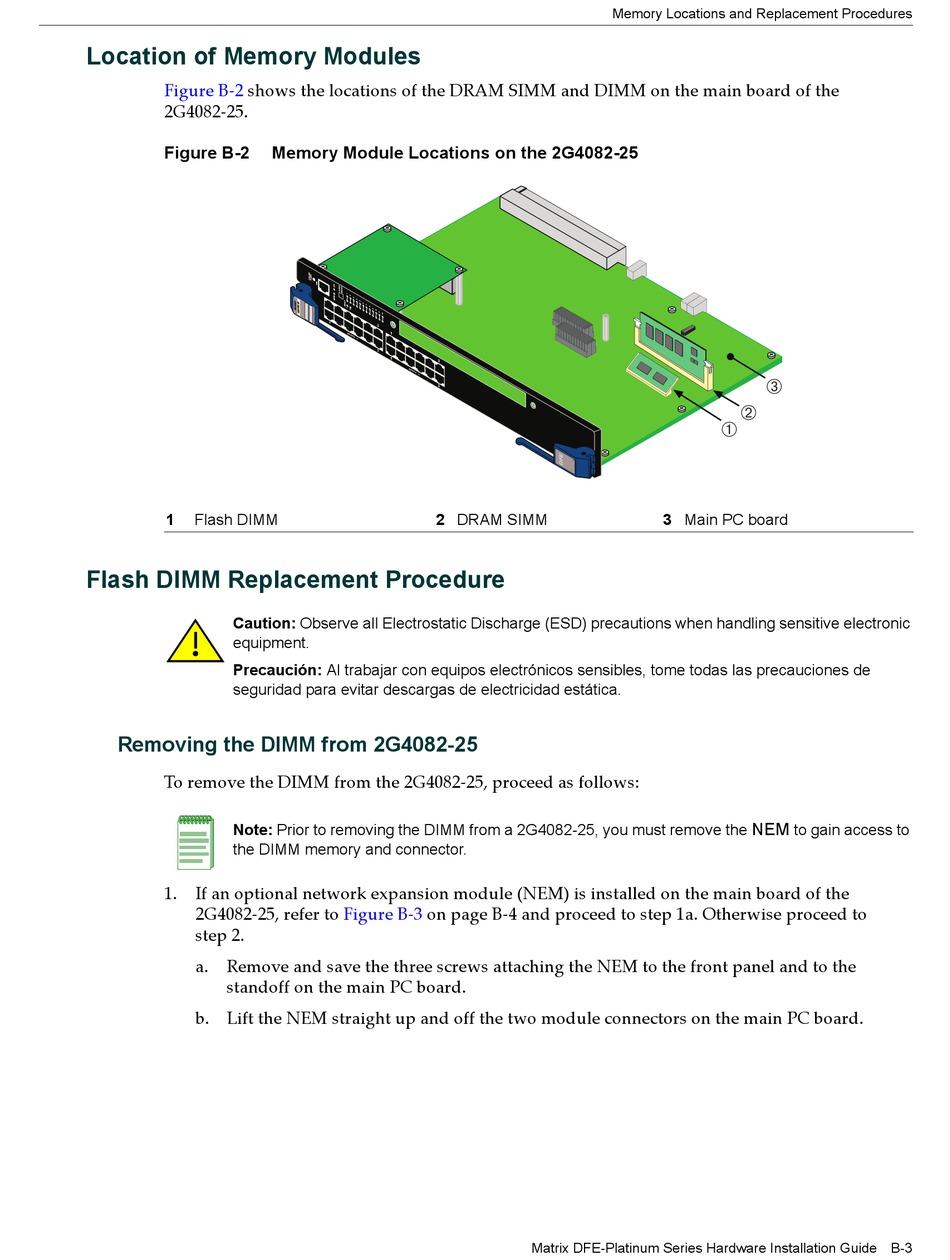

Figure B‐2 shows the locations of the DRAM SIMM and DIMM on the main board of the
2G4082‐25.
Figure B-2
1 Flash DIMM

Flash DIMM Replacement Procedure

Caution: Observe all Electrostatic Discharge (ESD) precautions when handling sensitive electronic
equipment.
Precaución: Al trabajar con equipos electrónicos sensibles, tome todas las precauciones de
seguridad para evitar descargas de electricidad estática.
Removing the DIMM from 2G4082-25
To remove the DIMM from the 2G4082‐25, proceed as follows:
Note: Prior to removing the DIMM from a 2G4082-25, you must remove the
the DIMM memory and connector.
1. If an optional network expansion module (NEM) is installed on the main board of the
2G4082‐25, refer to Figure
step 2.
a. Remove and save the three screws attaching the NEM to the front panel and to the
standoff on the main PC board.
b. Lift the NEM straight up and off the two module connectors on the main PC board.

Memory Module Locations on the 2G4082-25

2 DRAM SIMM
B‐3 on page B‐4 and proceed to step 1a. Otherwise proceed to
Memory Locations and Replacement Procedures
3 Main PC board
