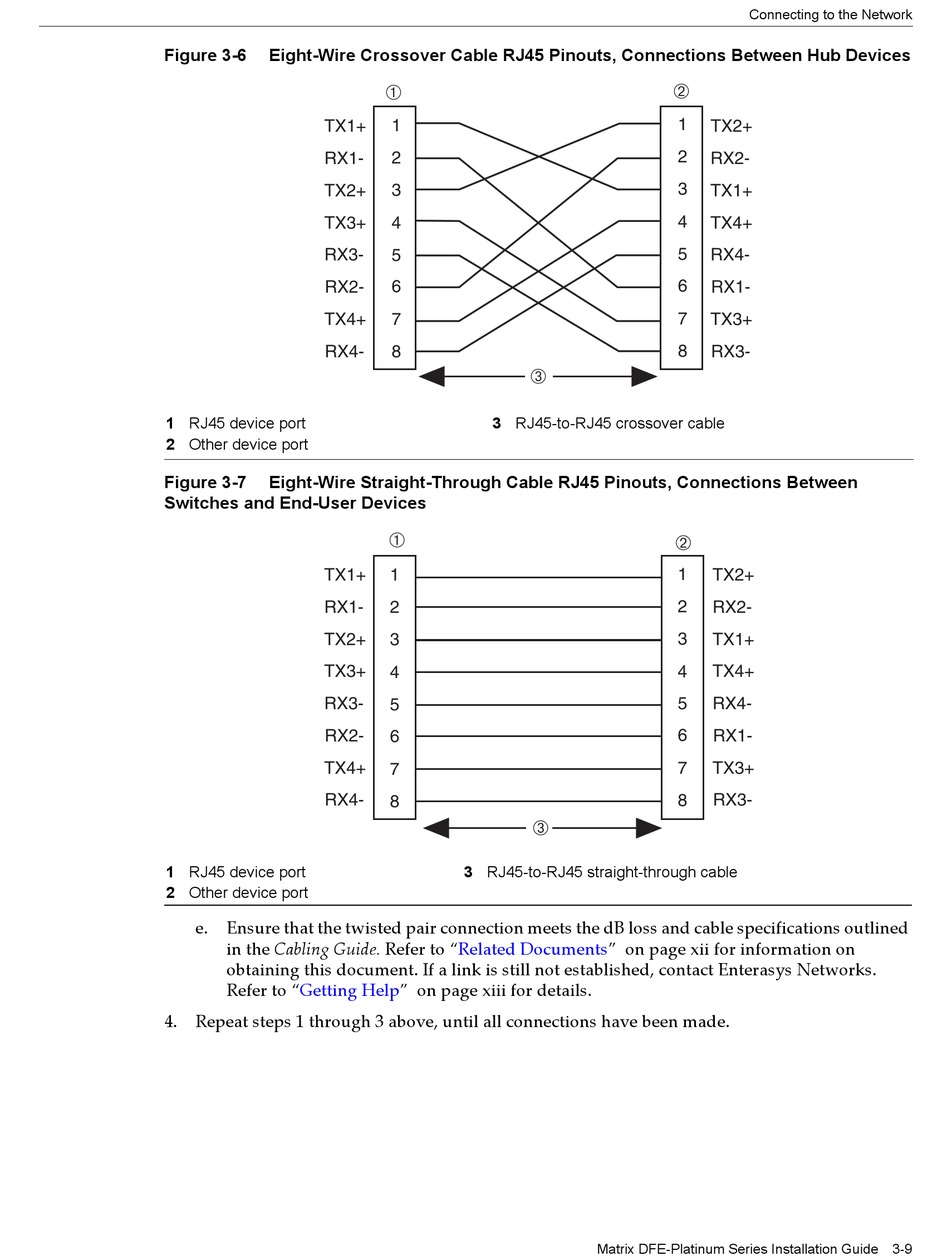

Figure 3-6 Eight-Wire Crossover Cable RJ45 Pinouts, Connections Between Hub Devices
1 RJ45 device port
2 Other device port
Figure 3-7 Eight-Wire Straight-Through Cable RJ45 Pinouts, Connections Between
Switches and End-User Devices
1 RJ45 device port
2 Other device port
e. Ensure that the twisted pair connection meets the dB loss and cable specifications outlined
in the Cabling Guide. Refer to "Related Documents" on page xii for information on
obtaining this document. If a link is still not established, contact Enterasys Networks.
Refer to "Getting Help" on page xiii for details.
4. Repeat steps 1 through 3 above, until all connections have been made.
À
Â
3 RJ45-to-RJ45 crossover cable
À
Â
3 RJ45-to-RJ45 straight-through cable
Connecting to the Network
Á
Á
Matrix DFE-Platinum Series Installation Guide 3-9
