Memory Locations and Replacement Procedures

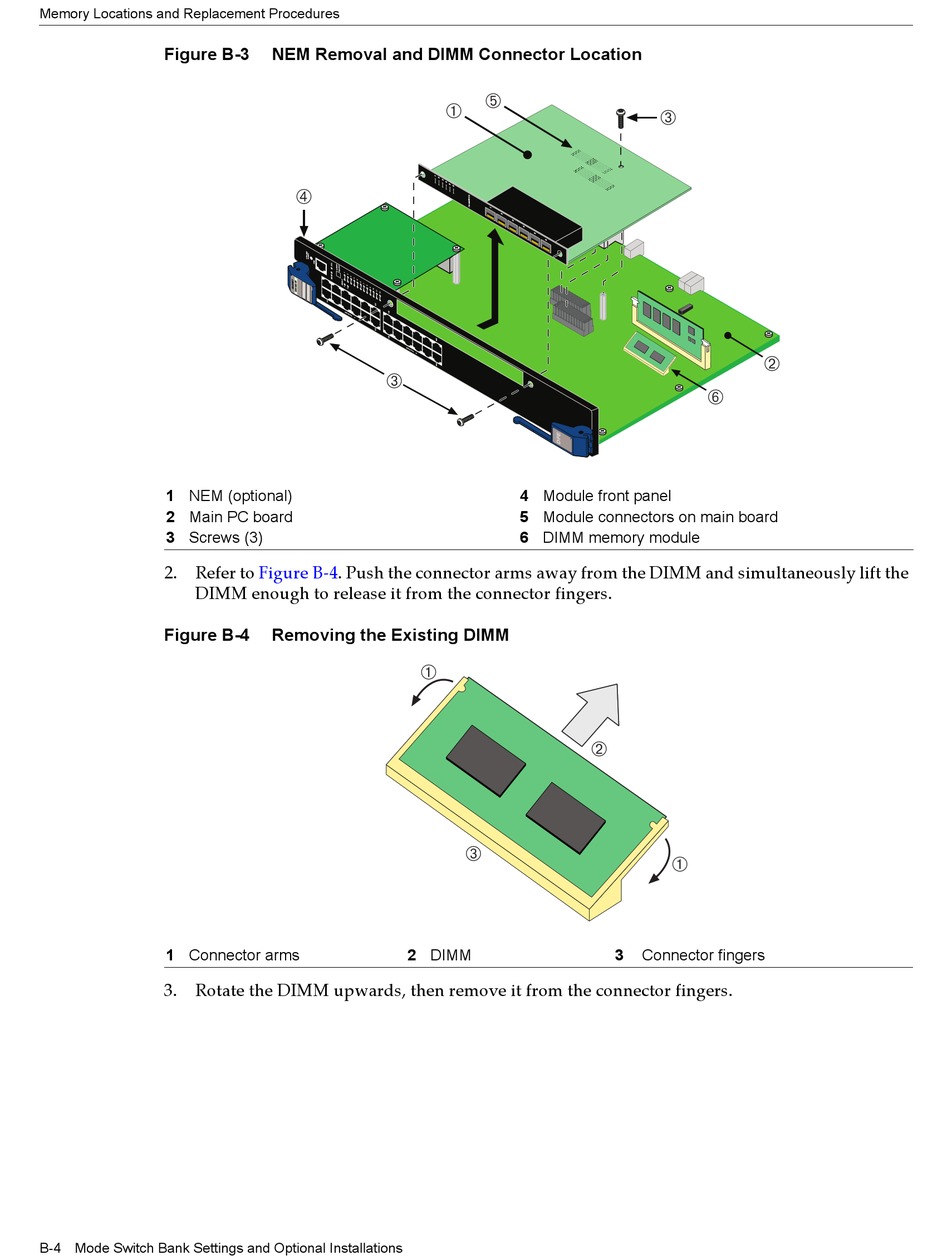

Figure B-3

1 NEM (optional)

2 Main PC board

3 Screws (3)

Refer to Figure

DIMM enough to release it from the connector fingers.

Figure B-4

1 Connector arms

Rotate the DIMM upwards, then remove it from the connector fingers.

B-4 Mode Switch Bank Settings and Optional Installations

NEM Removal and DIMM Connector Location

B‐4. Push the connector arms away from the DIMM and simultaneously lift the

2 DIMM

4 Module front panel

5 Module connectors on main board

6 DIMM memory module

Connector fingers
