Table 4-2 Troubleshooting Checklist (continued)
Problem
User parameters
(IP address, device
and module name,
etc.) were lost
when the module
power was cycled,
the front panel
OFFLINE/RESET
switch was
pressed.

Overview of DFE-Platinum Module Shutdown Procedure

The DFE‐Platinum module must shut down in an orderly fashion to ensure that the other modules
in the system and other devices on the network are notified of the impending change. The devices
can then make intelligent decisions and stabilize the network before the change is made; thereby
increasing network availability.
You can shut down a DFE‐Platinum module in an operating system using the
shown in Figure
switch
• "Recommended Shutdown Procedure" (page 4‐6)
• "Last Resort Shutdown Procedure" (page 4‐6)

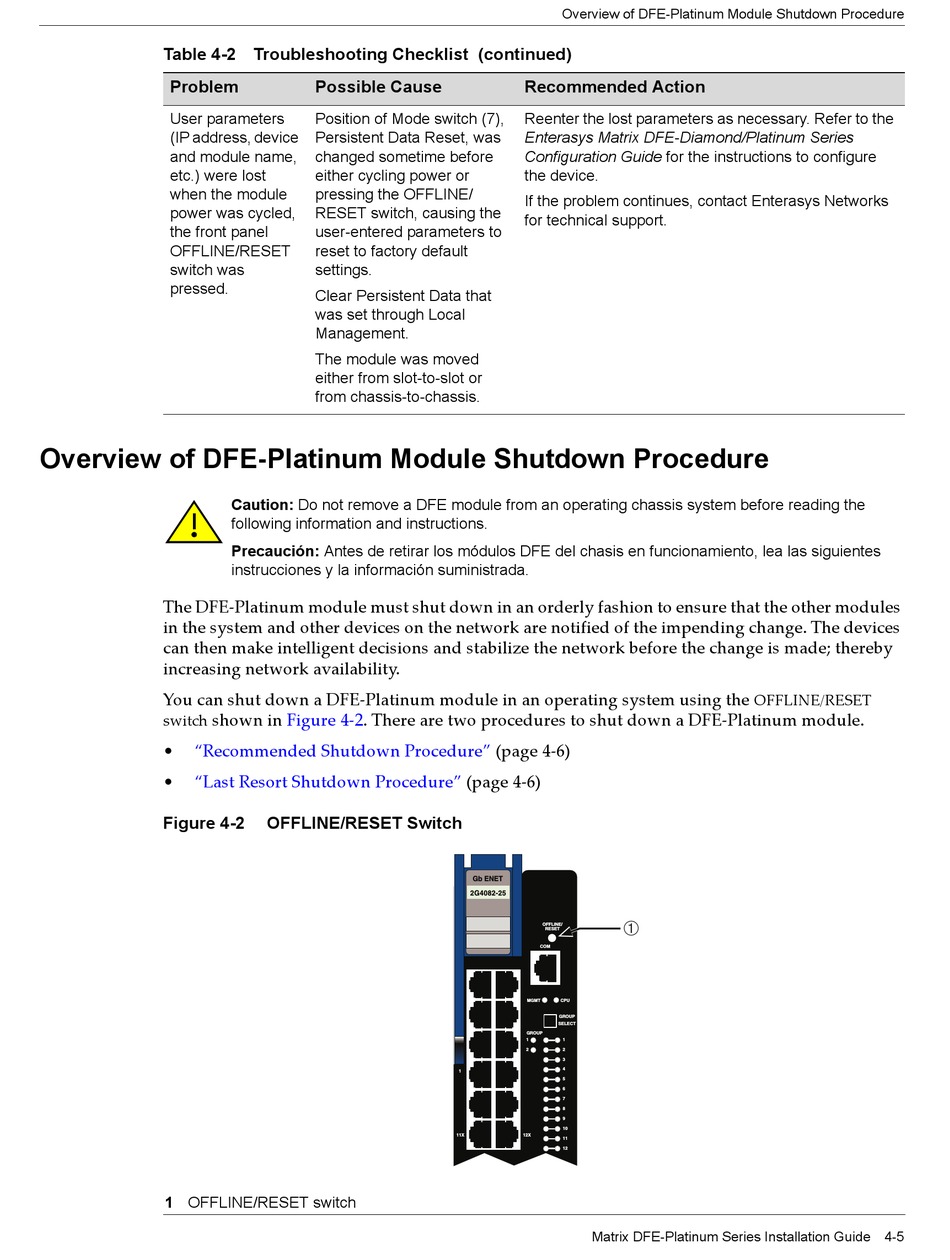

Figure 4-2

1 OFFLINE/RESET switch

Possible Cause
Position of Mode switch (7),
Persistent Data Reset, was
changed sometime before
either cycling power or
pressing the OFFLINE/
RESET switch, causing the
user-entered parameters to
reset to factory default
settings.
Clear Persistent Data that
was set through Local
Management.
The module was moved
either from slot-to-slot or
from chassis-to-chassis.
Caution: Do not remove a DFE module from an operating chassis system before reading the
following information and instructions.
Precaución: Antes de retirar los módulos DFE del chasis en funcionamiento, lea las siguientes
instrucciones y la información suministrada.
4‐2. There are two procedures to shut down a DFE‐Platinum module.
OFFLINE/RESET Switch
Overview of DFE-Platinum Module Shutdown Procedure
Recommended Action
Reenter the lost parameters as necessary. Refer to the
Enterasys Matrix DFE-Diamond/Platinum Series
Configuration Guide for the instructions to configure
the device.
If the problem continues, contact Enterasys Networks
for technical support.
À
Matrix DFE-Platinum Series Installation Guide 4-5
