Enabling Tv Display - EUROCOM D900T PHANTOM User Manual

Video & Audio Controls

Enabling TV Display

To display desktop images on a TV, connect the TV to your computer by using
an S-Video cable from the TV to the S-Video-Out jack on the left side of the
3
computer (see "System Map: Left View" on page 1 - 10).
You will need to enable the TV display from the nView Display Settings tab
(see "Attaching Other Displays" on page 3 - 8). The TV will appear as a dis-
play option (select the display option from the Primary Display/ Secondary
Display dropbox) when attached to the S-Video-Out jack.

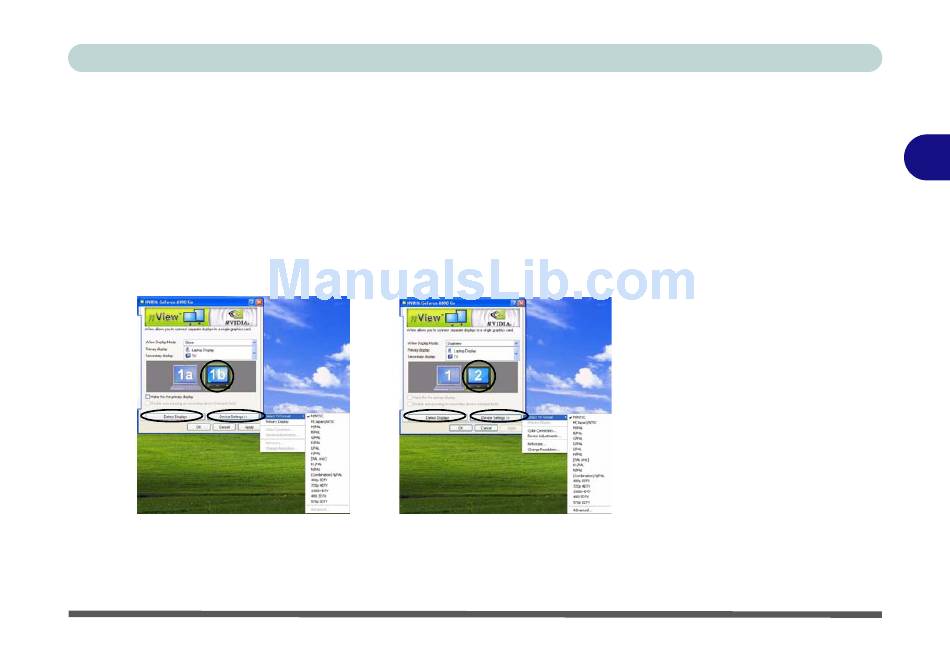

Figure 3 - 7
TV Settings
Clone Mode Dualview Mode
To get a full range of options from the Device Settings menu click the Detect
Displays button. Click to select the TV icon, then click the Device Settings
button.
Enabling TV Display 3 - 11
