CSX WAN Configuration
The information in this window includes:
RsPort#
A unique number assigned to the synchronous port.
SigName
IdentiÞes the type of input or output signal that has been received or transmitted.
The types of signals are as follows:
rts
cts
dsr
dtr
ri
dcd
sq
srs
srts
scts
sdcd
State
Displays the current signal state: none, on, or off.
Changes
Displays the number of times the signal has changed from ÔonÕ to ÔoffÕ or ÔoffÕ
to ÔonÕ.
4-32

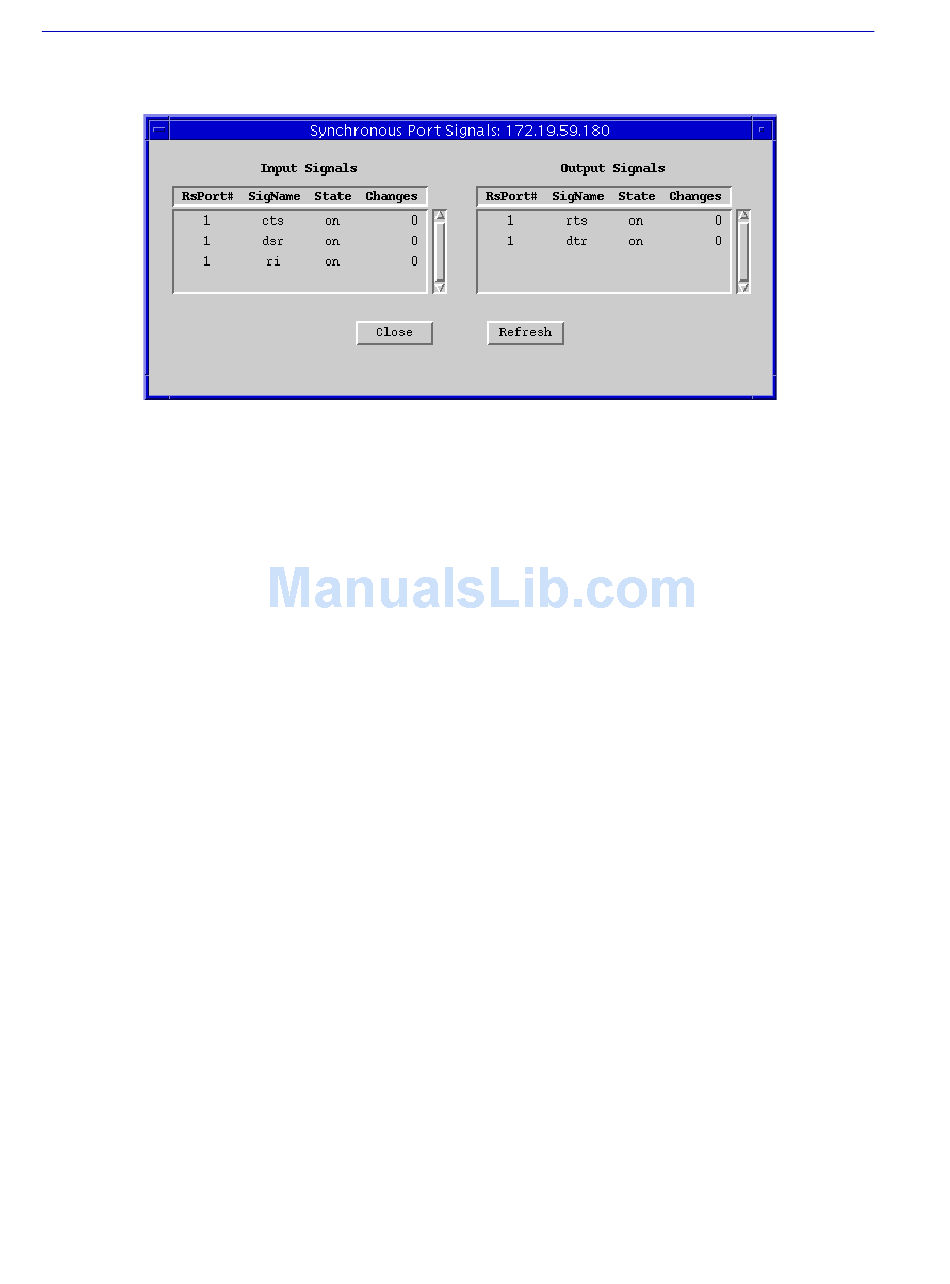

Figure 4-16. The Synchronous Port Signals Window
Request to Send
Clear to Send
Data Set Ready
Data Terminal Ready
Ring Indicator
Received Line Signal Detector
Signal Quality Detector
Data Signaling Rate Selector
Secondary Request to Send
Secondary Clear to Send
Secondary Received Line Signal Detector
Checking Statistics
