CSX Bridge View
3. Select the desired Bridge Port index number from the list. The port entry will

The Bridge Status Window

You can set or change the device time, date, name, or locationÑall of which
display in the Bridge TrafÞc View Front PanelÑin the Bridge Status window.
The Contact Þeld is the only Bridge Status window Þeld not displayed in the
Bridge TrafÞc View Front Panel. Use the Contact box to record the name and
phone number of the person responsible for the device.
To set or change information for any of the Bridge Status window Þelds:
1. Display the Device menu by clicking on the Front Panel
2. In the Device menu, drag down to Status and release.
3. In the Status window, highlight a text box, type in the new information; press
3-12
display information for the newly selected port.
Enter or Return on the keyboard to set your changes before selecting a new
field.

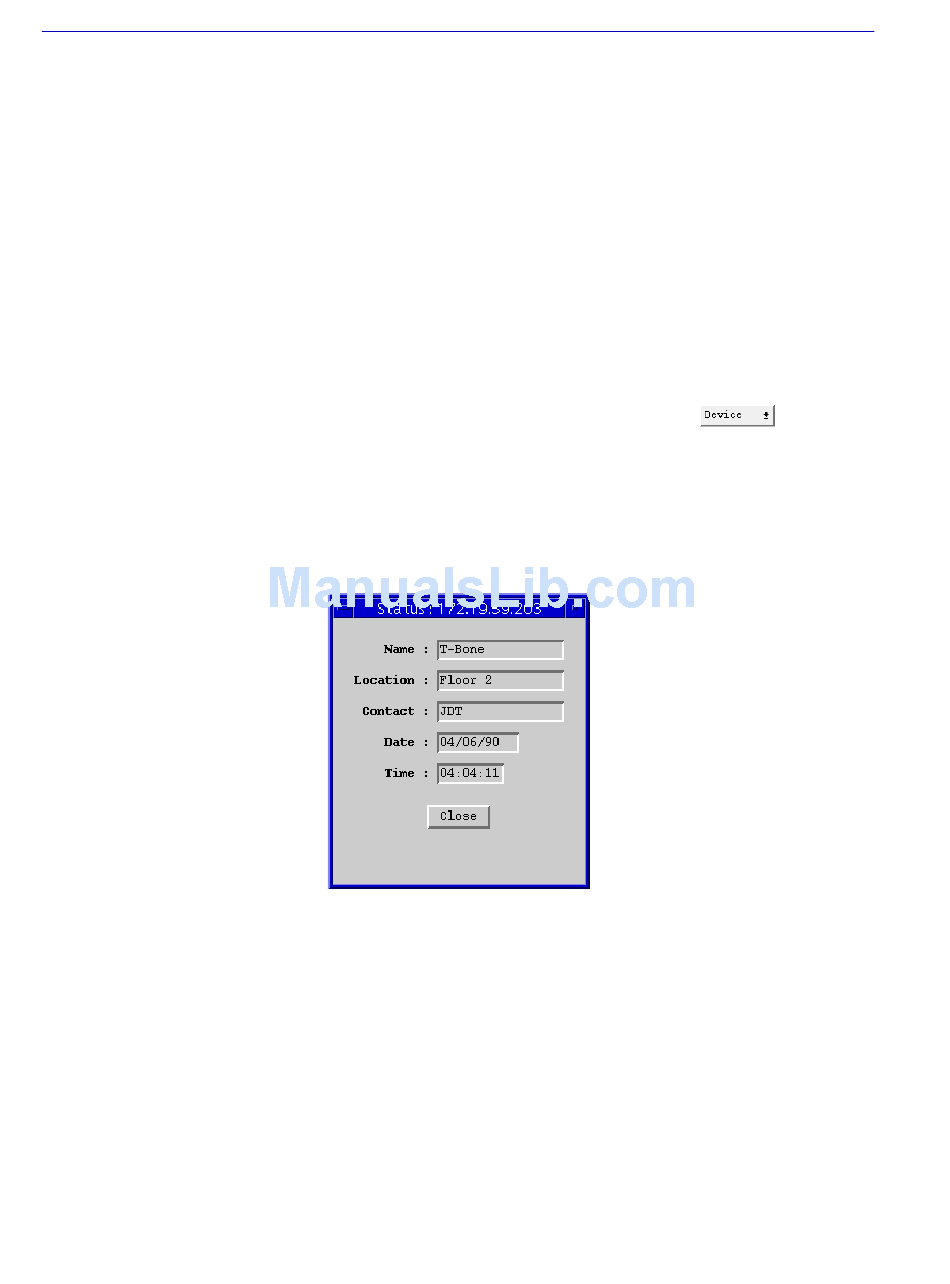

Figure 3-5. Bridge Status Window
button.
