CSX Bridge View
Virtual Ports
Each list entry represents a bridge port. Click
button 1 on a Bridge Port list entry to select it.
Once a port is selected, click button 3 on the
Port Menu button to display the Port menu.
Click button 1 on a bridge port to select it for
display in the Detail View (at least two must be
selected to activate the Detail View button).
Depending on the type of WAN connection(s) you have on your CSX200/400, the Bridge
TrafÞc View window may display a number of virtual bridge ports, for which only a
NOTE
port index is visible. The Bridge TrafÞc View window displays all of the virtual bridge
ports available through your WAN interface(s). The virtual ports are not conÞgurable
from this window Ñ nor will there be any visible information beyond port index Ñ
unless they are in use.
To display the Device menu:
1. Click on
3-4

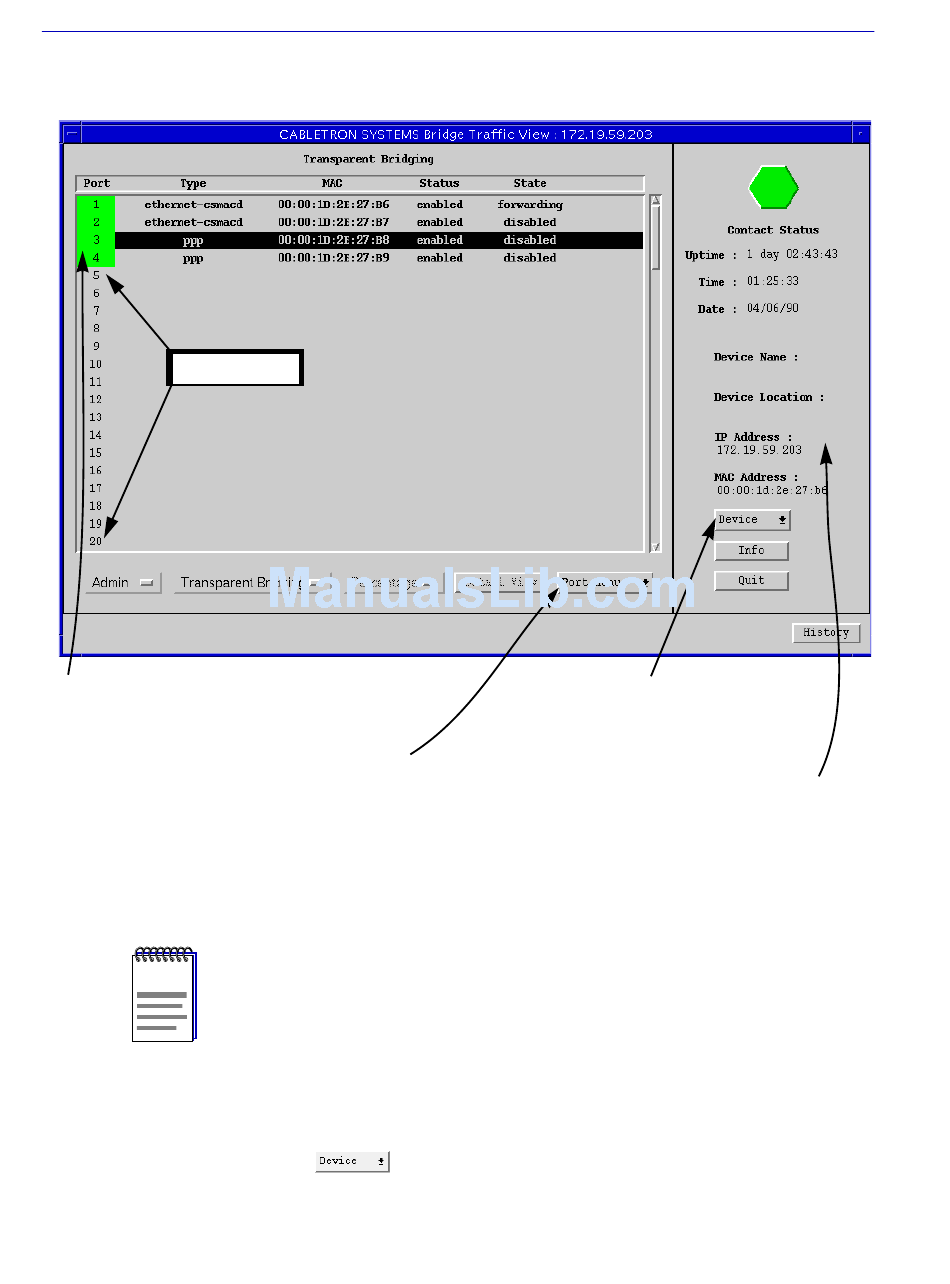

Figure 3-1. Mousing Around the CSX Bridge TrafÞc View
in the Bridge Traffic View front panel.
Click on the Device button
to display the Device menu
The Front Panel shows device-level
summary information.
Accessing the Bridge Traffic View Window
