CSX WAN Configuration

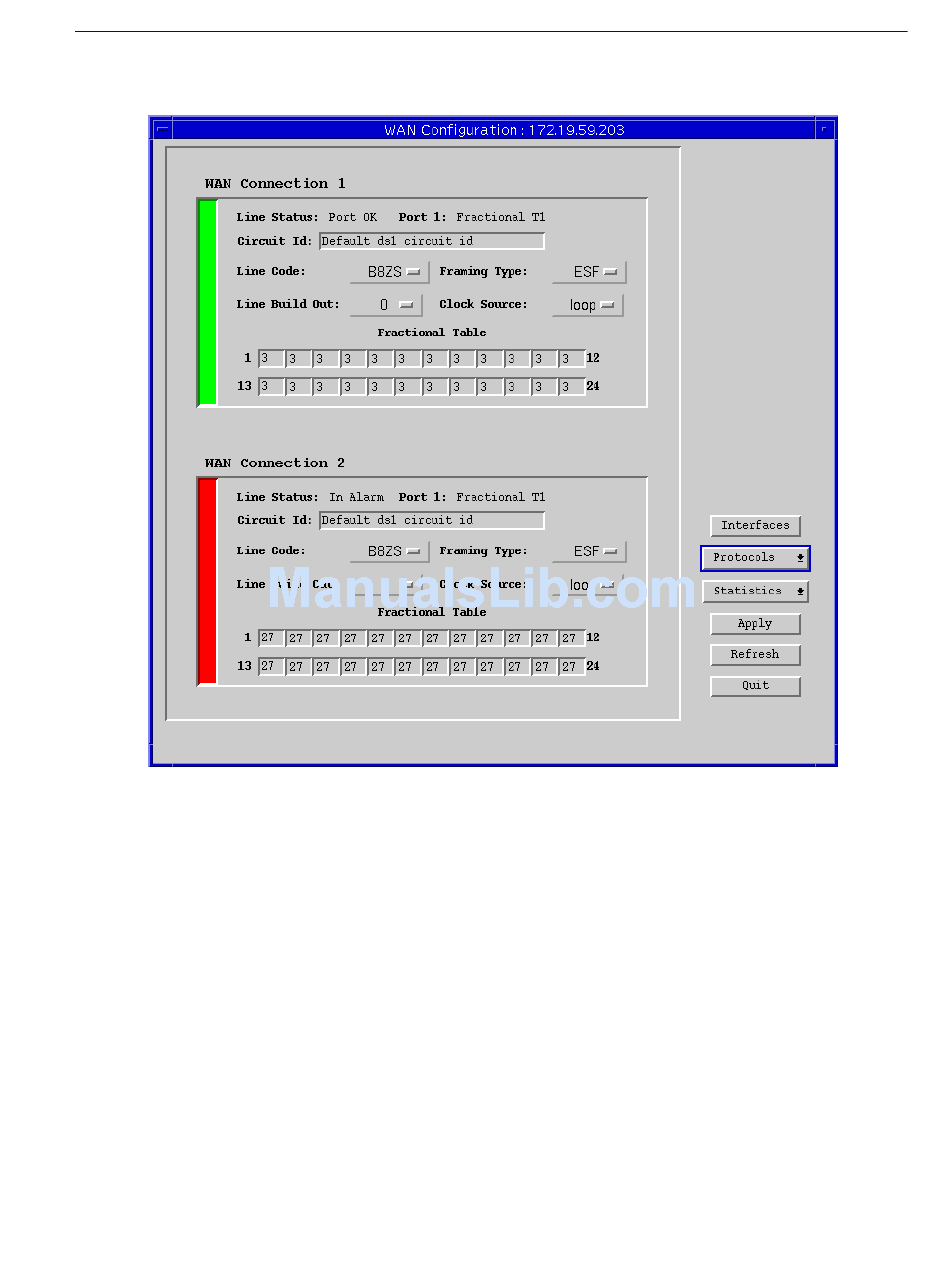

Figure 4-1. CSX400 WAN ConÞguration Window
The WAN ConÞguration window for the CSX400 is divided into two sections. The
upper and lower portions display the conÞguration of the Þrst and second WAN
ports, respectively.
Since all CSX200s contain only one WAN interface, the WAN ConÞguration
window for the CSX200 series is half the size
(Figure
4-2). Note that the CSX200
WAN ConÞguration window on the following page is displaying different
information. This is because the content of a WAN ConÞguration window
depends on the type of WPIM(s) installed.
Accessing the CSX WAN Configuration Window
4-3
