Frame Relay DLCMI Last Error

The Frame Relay DLCMI Last Error window contains a line for each interface
conÞgured to use the Frame Relay protocol. It displays the last error for each
interface. To open this window:
1. Click on
2. Drag down to Frame Relay Dlcmi Errors and release.
Following are descriptions of each of the errors which are recorded in this
window.
If#
The interface number to which the collected statistics in the row are related.
Type
Displays the type of the last error seen on this interface. The possible error
types are:
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
Time
The sysUpTime at the time that the error was detected in hundredths of a second.
Checking Statistics
appear.

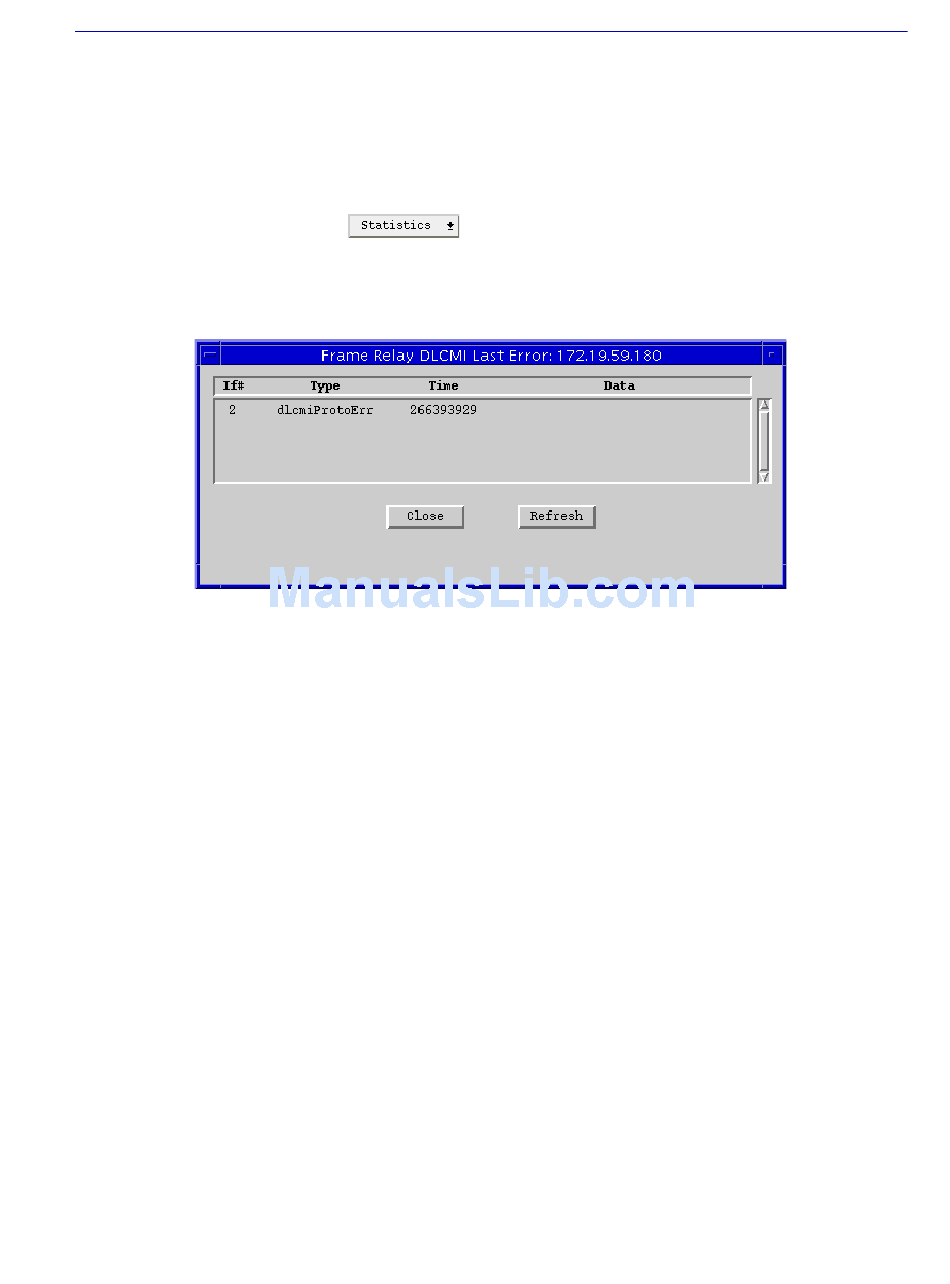

Figure 4-12. The Frame Relay DLCMI Last Error Window
unknownError
receiveShort
receiveLong
illegalDLCI
unknownDLCI
dlcmiProtoErr
dlcmiUnknownIE
dlcmiSequenceErr
dlcmiUnknownReport
noErrorSinceReset
. A pull-down menu will appear.
CSX WAN Configuration
Figure 4-12 will
4-27
