Lucent Technologies PARTNER Advanced Communications System System Planner Manual page 31

Template Instructions
•
If desired, write in line number, pool access code
•
If desired, write in Line Ringing (Imm, Del, or No) from Form B2
•
If desired, write in Line Access Restriction or Pool Access Restriction
(Out, In, or No) from Form B2
† Available with ACS R2.0 or later only.
Intercom Intercom
* In Hybrid mode only, if pool 880 is assigned, these two buttons are associated with this pool.
(ACS R2.0 or later only)
Specify Automatic Line Selection: ________________________________________________________________
Identify extensions programmed as shown: ___________________________________________________
Make as many copies as you need. Use template and/or checklist. For additional instructions, see pages 8 through 13.
† , dial code feature, or auto dial number
†
Ext.

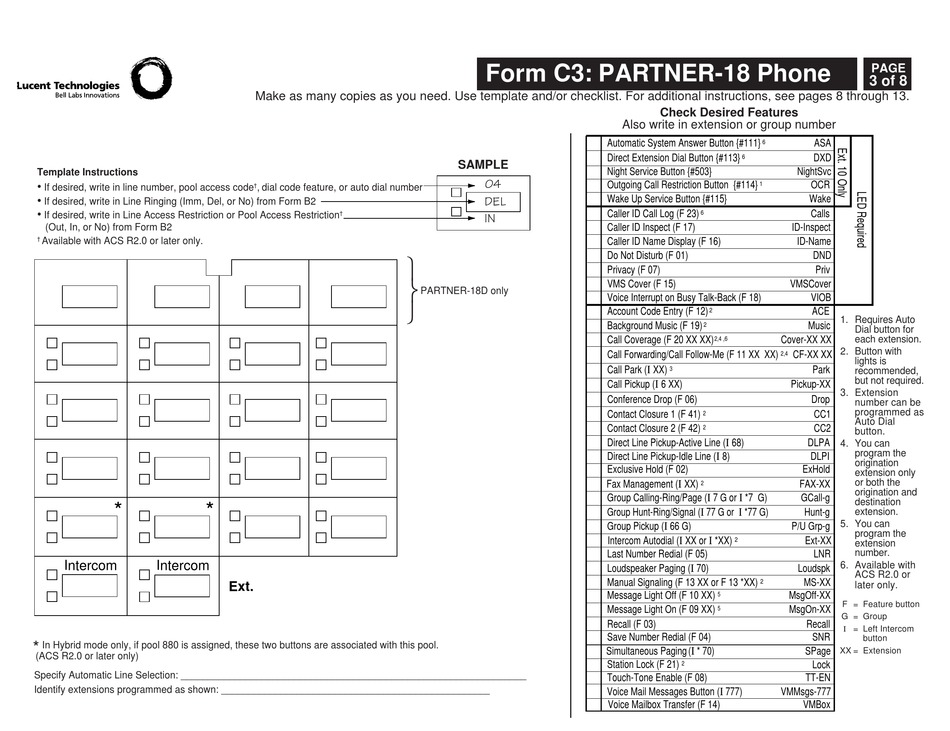

Form C3: PARTNER-18 Phone
SAMPLE
04
DEL
IN
PARTNER-18D only
Check Desired Features
Also write in extension or group number
Automatic System Answer Button {#111} 6
Direct Extension Dial Button {#113} 6
Night Service Button {#503}
Outgoing Call Restriction Button {#114}
1
Wake Up Service Button {#115}
Caller ID Call Log (F 23) 6
Caller ID Inspect (F 17)
Caller ID Name Display (F 16)
Do Not Disturb (F 01)
Privacy (F 07)
VMS Cover (F 15)
Voice Interrupt on Busy Talk-Back (F 18)
Account Code Entry (F 12)
2
Background Music (F 19)
2
Call Coverage (F 20 XX XX) Cover-XX XX
2,4 ,6
Call Forwarding/Call Follow-Me (F 11 XX XX)
2,4
Call Park (I XX)
3
Call Pickup (I 6 XX)
Conference Drop (F 06)
Contact Closure 1 (F 41)
2
Contact Closure 2 (F 42)
2
Direct Line Pickup-Active Line (I 68)
Direct Line Pickup-Idle Line (I 8)
Exclusive Hold (F 02)
Fax Management (I XX) 2
Group Calling-Ring/Page (I 7 G or I *7 G)
Group Hunt-Ring/Signal (I 77 G or I *77 G)
Group Pickup (I 66 G)
Intercom Autodial (I XX or I *XX) 2
Last Number Redial (F 05)
Loudspeaker Paging (I 70)
Manual Signaling (F 13 XX or F 13 *XX) 2
Message Light Off (F 10 XX) 5
Message Light On (F 09 XX)
5
Recall (F 03)
Save Number Redial (F 04)
Simultaneous Paging (I * 70)
Station Lock (F 21) 2
Touch-Tone Enable (F 08)
Voice Mail Messages Button (I 777) VMMsgs-777
Voice Mailbox Transfer (F 14)
PAGE
3 of 8
ASA
DXD
NightSvc
OCR
Wake
Calls
ID-Inspect
ID-Name
DND
Priv
VMSCover
VIOB
ACE
1. Requires Auto
Music
Dial button for
each extension.
2. Button with
CF-XX XX
lights is
Park
recommended,
but not required.
Pickup-XX
3. Extension
Drop
number can be
programmed as
CC1
Auto Dial
CC2
button.
DLPA
4. You can
program the
DLPI
origination
ExHold
extension only
or both the
FAX-XX
origination and
GCall-g
destination
Hunt-g extension.
5. You can
P/U Grp-g
program the
Ext-XX
extension
number.
LNR
6. Available with
Loudspk
ACS R2.0 or
MS-XX
later only.
MsgOff-XX
F = Feature button
MsgOn-XX
G = Group
Recall
I = Left Intercom
SNR
button
SPage XX = Extension
Lock
TT-EN
VMBox
