6

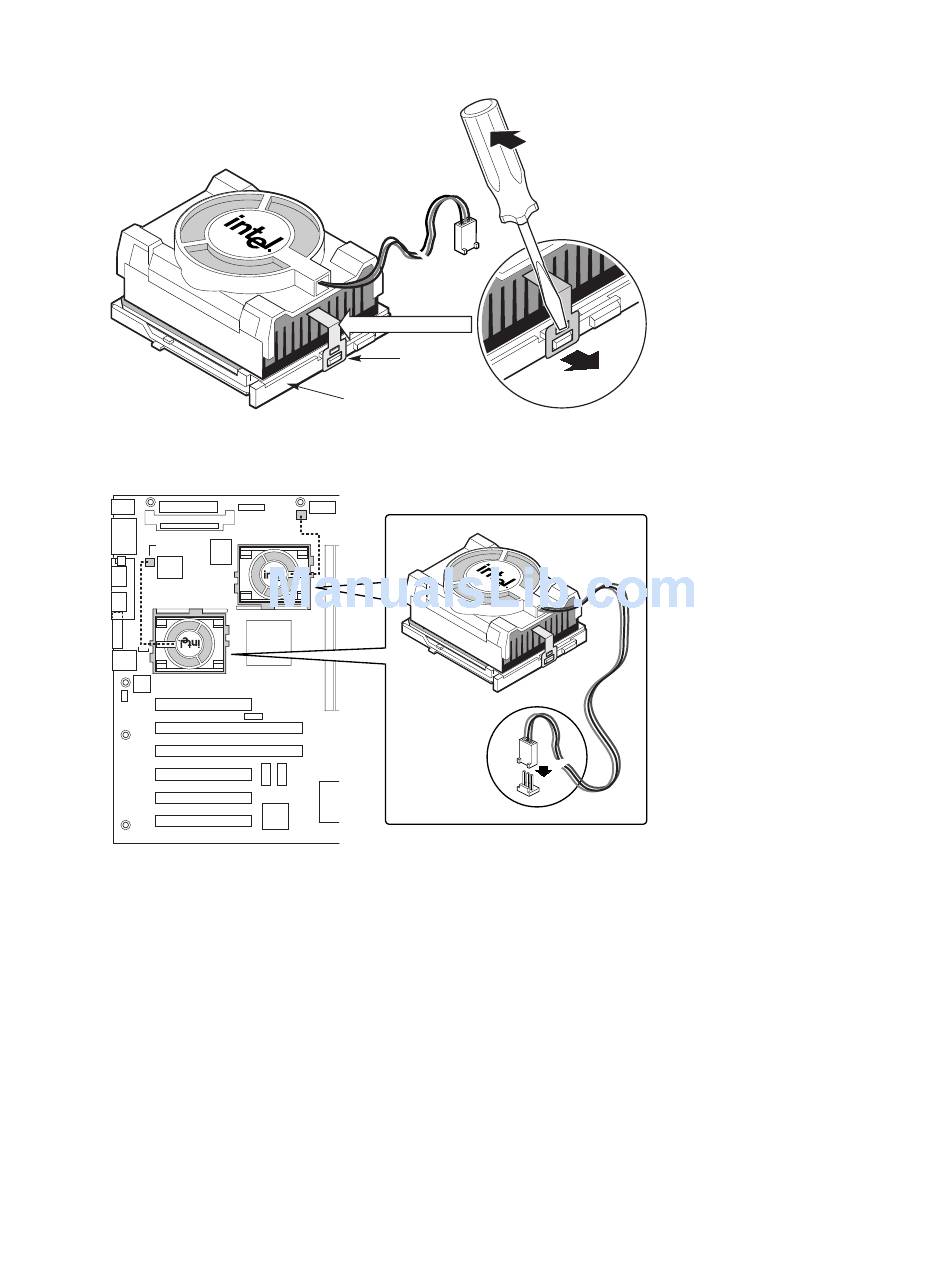

Attach the fan heatsink clip to the processor socket. We recommend
attaching the side away from the fan cable first. Then use a screw driver or
other tool to attach the remaining side.
7
Connect the processor fan cable to the processor fan connector.
P36
P12
Intel Server Board STL2 Quick Start Guide
A
B
OM10681
OM10671
13
