Rearrange the Standoffs

Your chassis may have metal standoffs already installed. You must rearrange
them so they match the holes in the server board. Failure to properly rearrange
the metal standoffs may cause the server board to malfunction and may
permanently damage the server board.

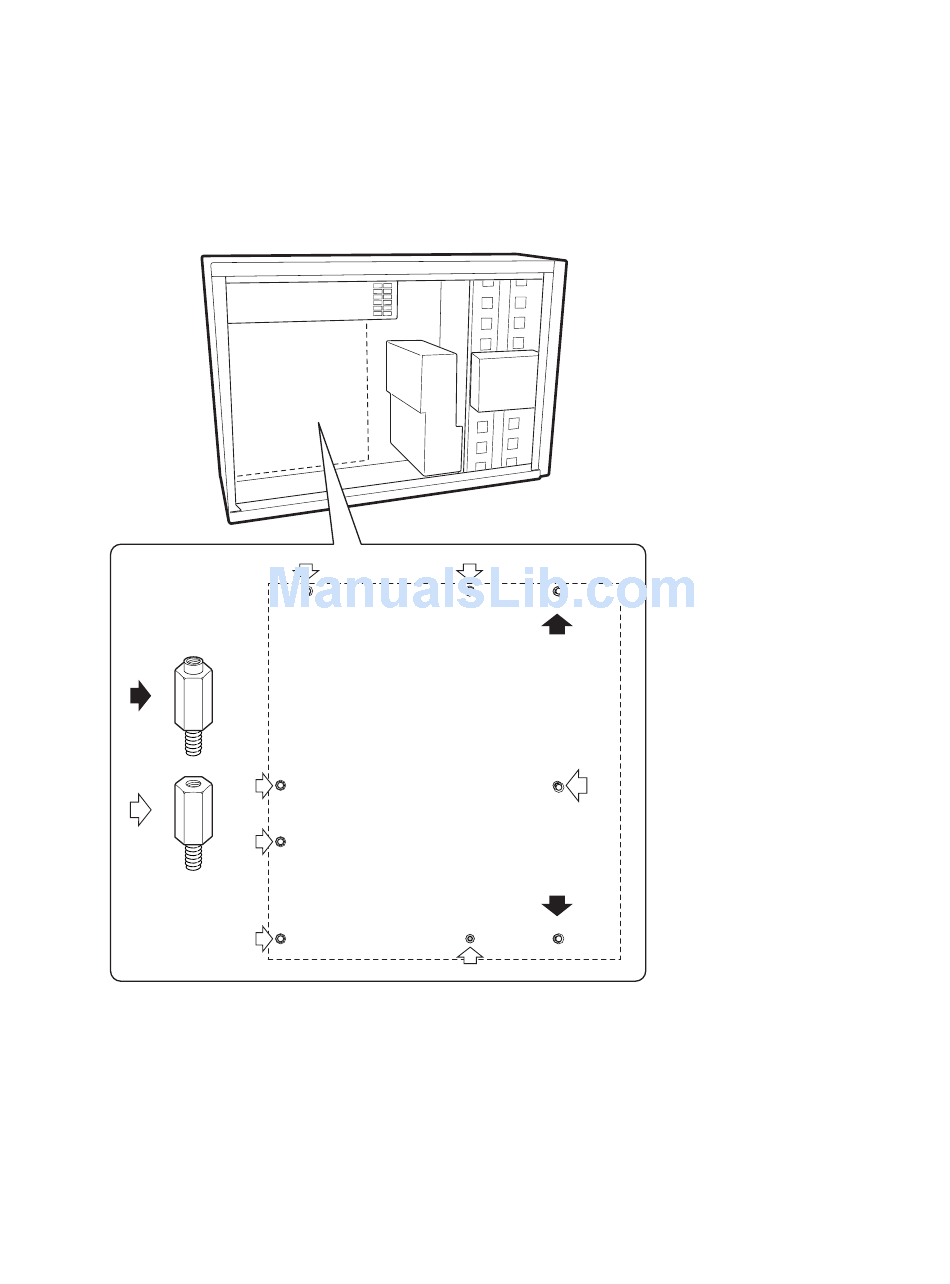

The following illustration shows the Intel
standoffs in the chassis must be installed in screw holes 1, 4, 5, 6, 7, 13, 17,
18, 19. The hole numbers are stamped in the chassis sheet metal. Make sure the
two positioning standoffs are in holes 17 and 19. You chassis may be different
from the illustration.
=
4
=
5
6
Intel Server Board STL2 Quick Start Guide
®
SC5000 Server Chassis. The
1 7
13
17
18
19
OM10675
19
