Connecting Video Input - HP LD4200tm - Widescreen LCD Interactive Digital Signage Display User Manual

Connecting Video Input

1. Connect the video cable (sold separately) as shown in the following illustration, and then connect
the power cable.
a.
b.

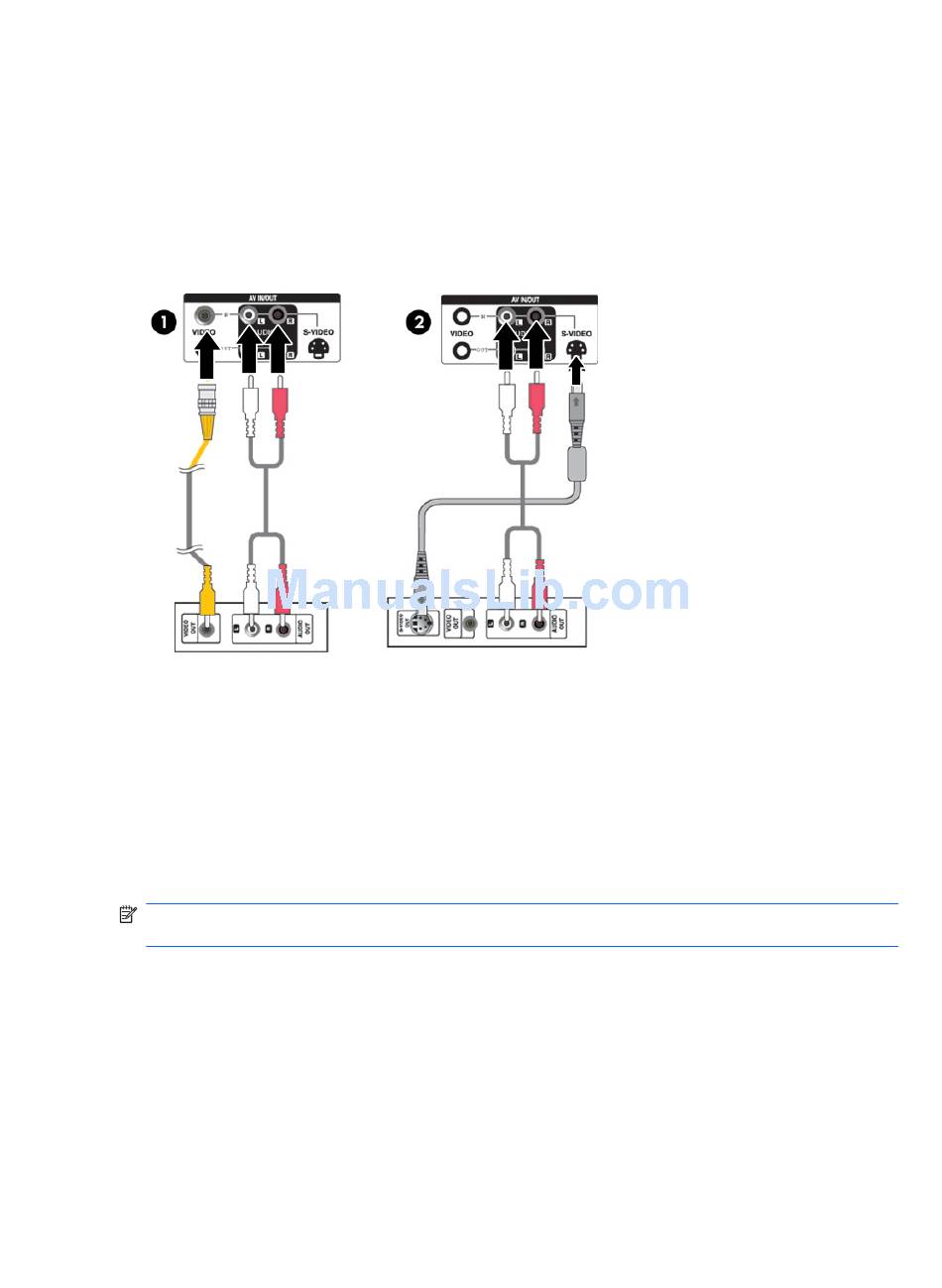

Figure 3-19
2. Select an input signal.
Press the INPUT button on the remote control to select the input signal. Press the SET button to
save your change.
Or, press the SOURCE button on the back side of the monitor panel. Press the AUTO/SET button
to save your change.
a.
b.
NOTE:
has a priority.
14 Chapter 3 Setting Up the Monitor
When connecting with a BNC cable (1), connect the input terminal to the monitor and VCR/
DVD receiver.
When connecting with an S-Video cable (2), connect the S-Video input terminal to the monitor
and VCR/DVD receiver to watch high image quality movies.
Connecting with the BNC and Audio Cables to VCR/DVD Receiver
When connecting with a BNC cable, select AV from the Input menu.
When connecting with an S-Video cable, select AV from the Input menu.
When the BNC cable is connected simultaneously with S-Video cable, the S-Video input
