Connecting Component Input (480p/576p/720p/1080p/1080i/576i/480i)

Connect the video/audio cable (sold separately) as shown in the following illustration, and then

connect the power cord. Connect the Component1 (1) or Component2 (2) input terminal to the

monitor and HDTV receiver.

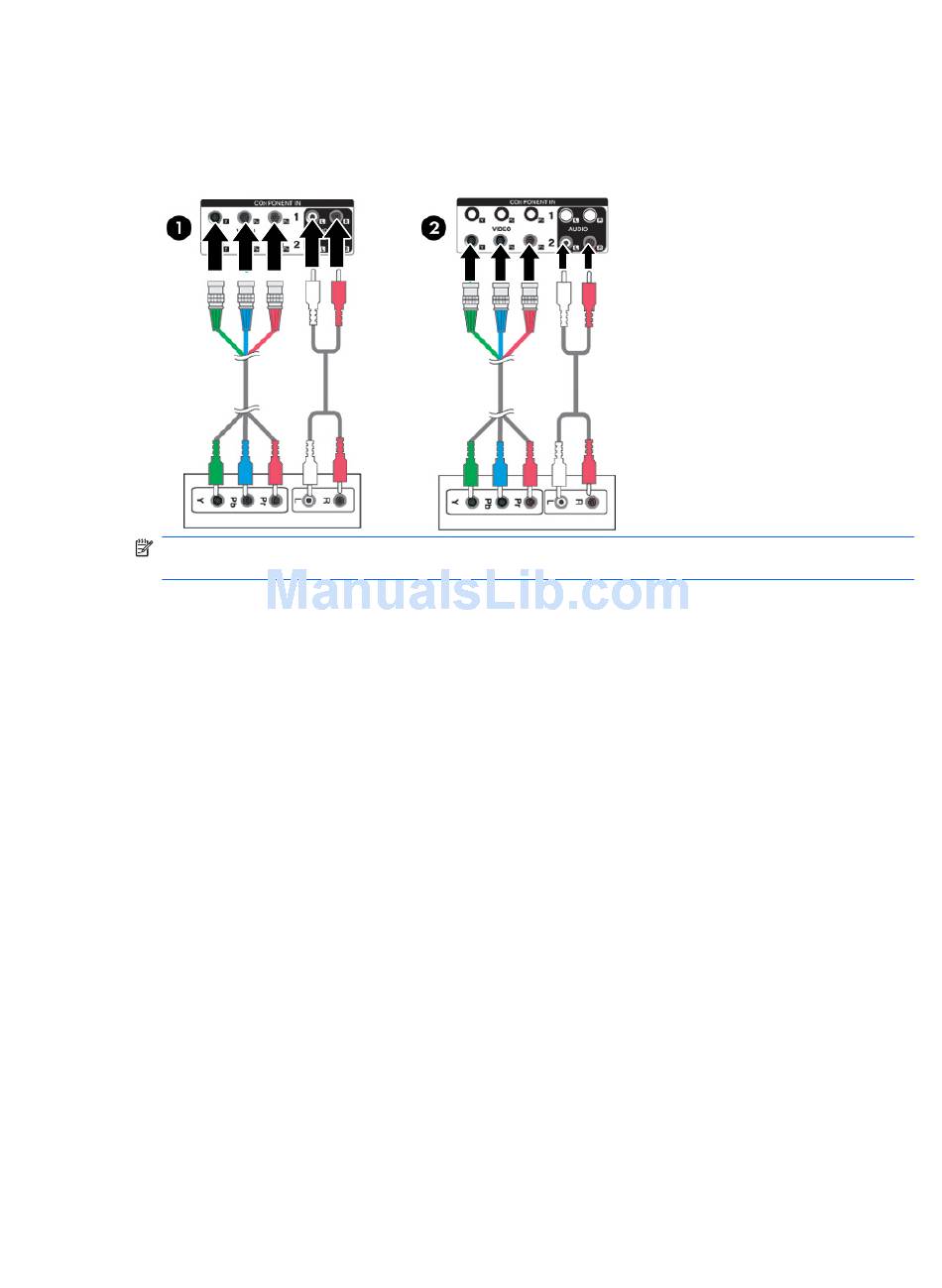

Figure 3-20

NOTE:

support HDCP.

Select an input signal.

Press the INPUT button on the remote control to select the input signal. Press the SET button to

save your change.

Or, press the SOURCE button on the back side of the monitor panel. Press the AUTO/SET button

to save your change.

Select Component1 from the Input menu.

Select Component2 from the Input menu.

ENWW

Connecting the BNC and Audio Cables to HDTV Receiver

Some devices may require HDCP in order to display HD signals. Component does not

Connecting to External Devices
