Epson EPL-6200 Reference Manual page 319

w

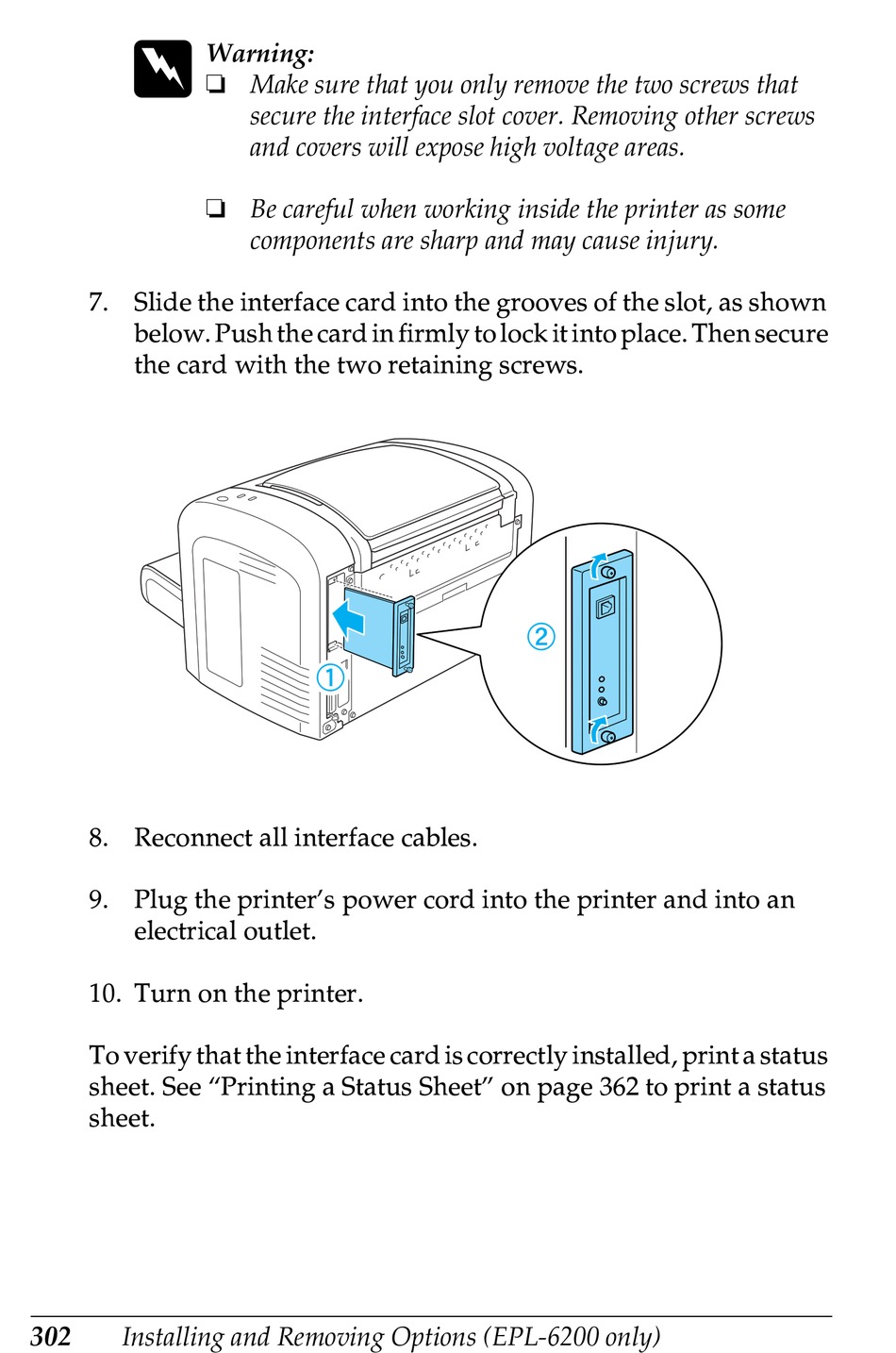

7. Slide the interface card into the grooves of the slot, as shown
below. Push the card in firmly to lock it into place. Then secure
the card with the two retaining screws.
8. Reconnect all interface cables.
9. Plug the printer's power cord into the printer and into an
electrical outlet.
10. Turn on the printer.
To verify that the interface card is correctly installed, print a status
sheet. See "Printing a Status Sheet" on page 362 to print a status
sheet.
302
Installing and Removing Options (EPL-6200 only)
Warning:
Make sure that you only remove the two screws that
secure the interface slot cover. Removing other screws
and covers will expose high voltage areas.
Be careful when working inside the printer as some
components are sharp and may cause injury.
