Paper separator removal
1. Remove the top cover. See
2. Remove the print unit from the base. See
page
4-29.
3. Remove the Paper Select lever.

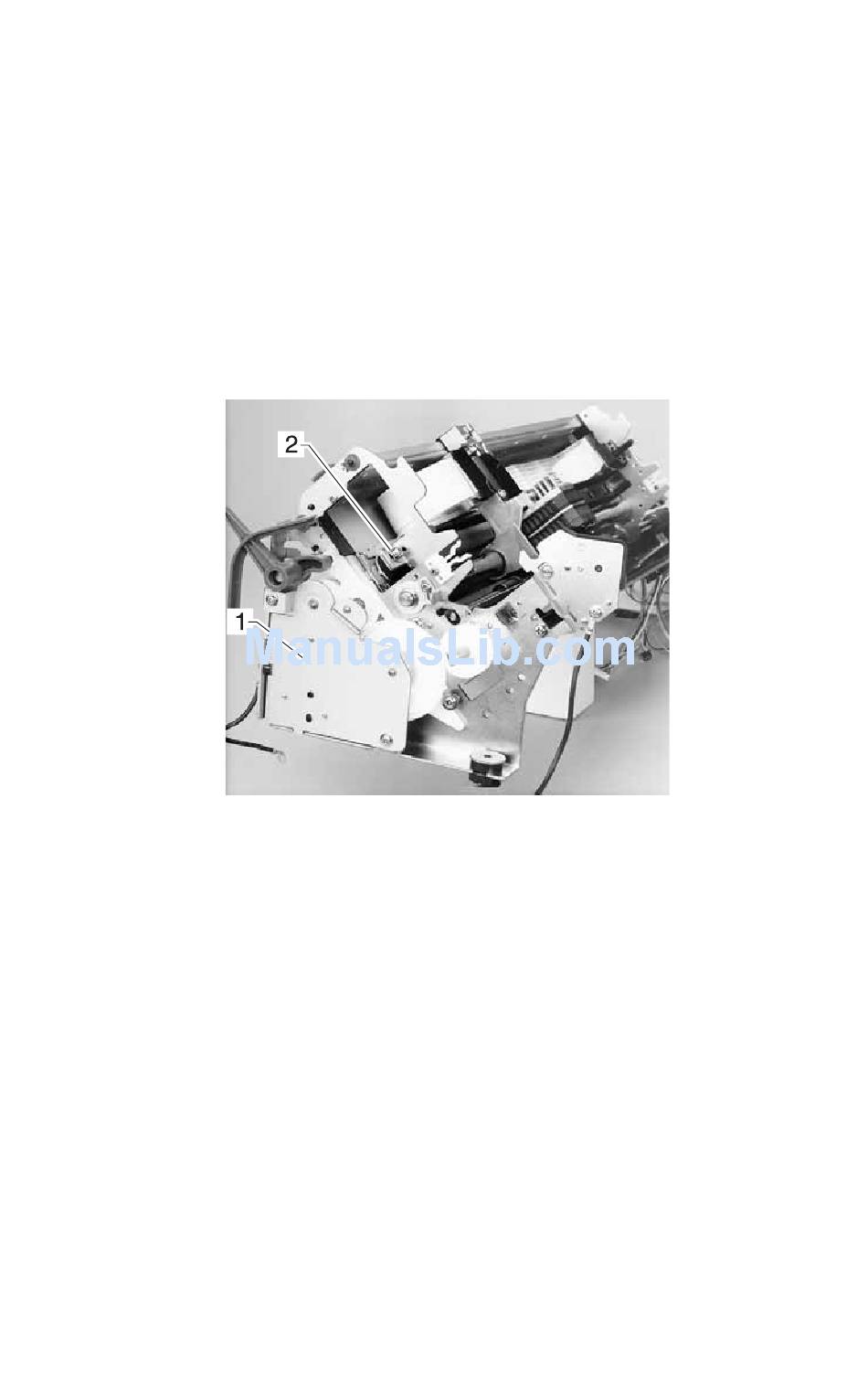

4. Remove the gear shaft support plate and the two gears with
their springs (1).
5. Remove the large screw (2) holding the tension pulley plate to
the side frame.
"Top cover removal" on page
"Print unit removal" on
Repair information
4-5.
4-27
