4227-300

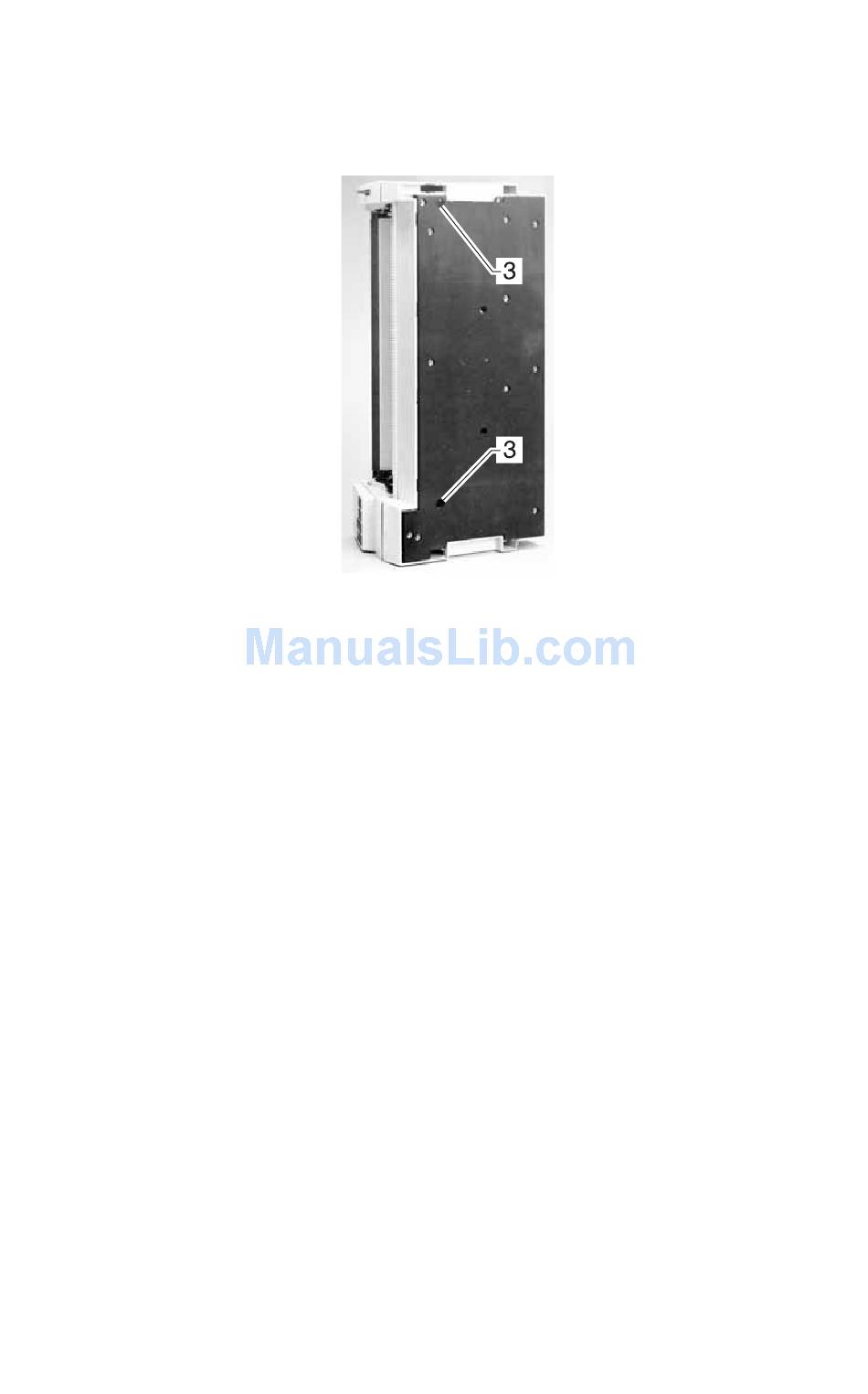

9. Slide the printer partway off the edge of the table. From the
bottom, remove the screw (3) holding the front of each side
frame to the base.
10.Lift the print unit from the base.
To Reinstall
For ease of reassembly, remove the flexible signal cable from the
main logic board and connect it to the sub logic board before
reinstalling the print unit.
Repair information
4-31
