Upper feed roller removal

1. Remove the top cover. See

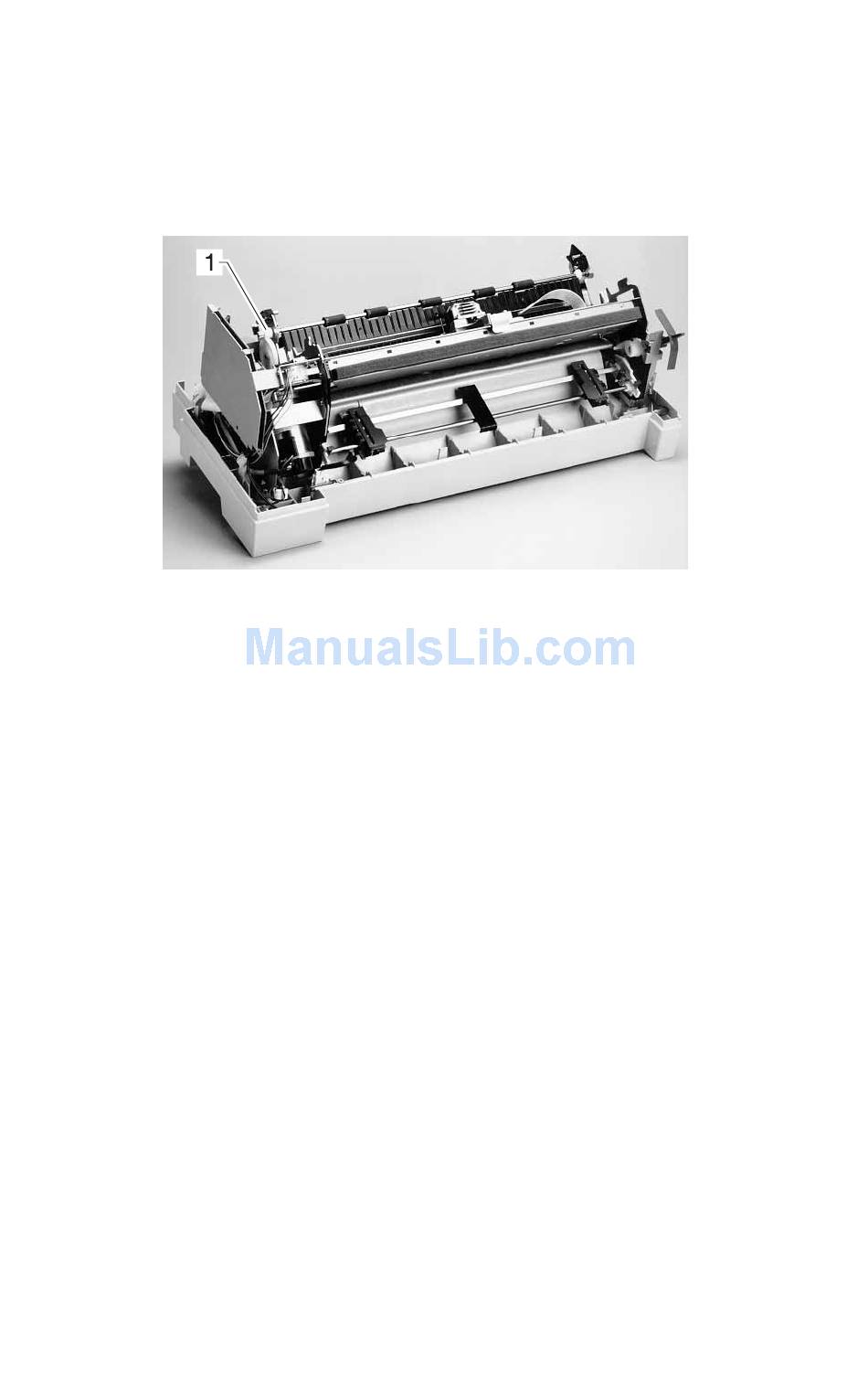

2. Release the latches and remove the gear (1) from the left end of
the shaft.
3. Remove the clip from the left end.
4. Slide the shaft to the left, making sure the right bearing comes
out of the side frame with the shaft.
5. Lift the shaft out to the right. Be sure not to lose the bearings;
they are both free to come off the shaft.
4-38
Service Manual
"Top cover removal" on page 4-5.
