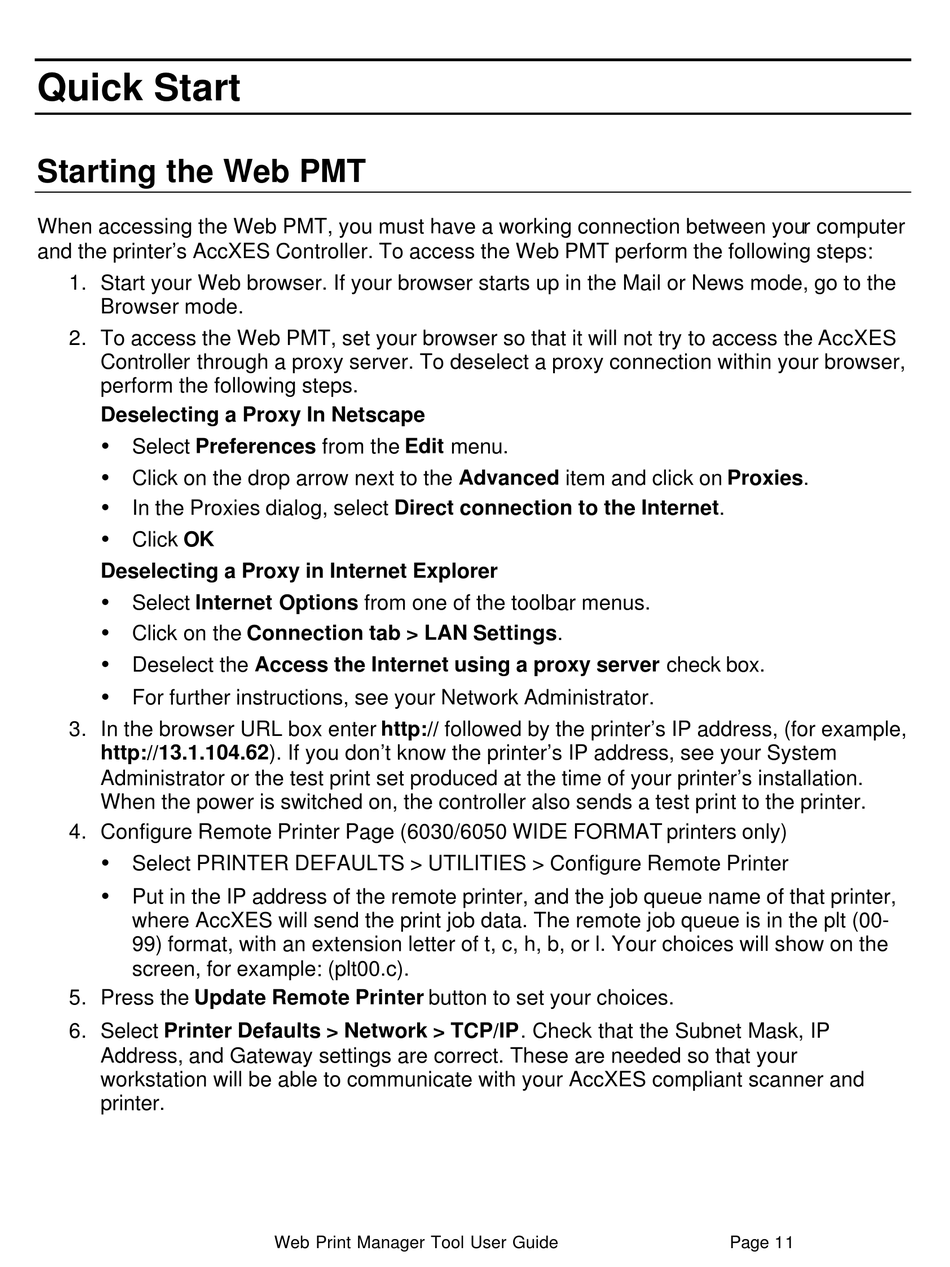

Quick Start

Starting the Web PMT

When accessing the Web PMT, you must have a working connection between your computer
and the printer's AccXES Controller. To access the Web PMT perform the following steps:
1. Start your Web browser. If your browser starts up in the Mail or News mode, go to the
Browser mode.
2. To access the Web PMT, set your browser so that it will not try to access the AccXES
Controller through a proxy server. To deselect a proxy connection within your browser,
perform the following steps.
Deselecting a Proxy In Netscape
Ÿ Select Preferences from the Edit menu.
Ÿ Click on the drop arrow next to the Advanced item and click on Proxies.
Ÿ In the Proxies dialog, select Direct connection to the Internet.
Ÿ Click OK
Deselecting a Proxy in Internet Explorer
Ÿ Select Internet Options from one of the toolbar menus.
Ÿ Click on the Connection tab > LAN Settings.
Ÿ Deselect the Access the Internet using a proxy server check box.
Ÿ For further instructions, see your Network Administrator.
3. In the browser URL box enter http:// followed by the printer's IP address, (for example,
http://13.1.104.62). If you don't know the printer's IP address, see your System
Administrator or the test print set produced at the time of your printer's installation.
When the power is switched on, the controller also sends a test print to the printer.
4. Configure Remote Printer Page (6030/6050 WIDE FORMAT printers only)
Ÿ Select PRINTER DEFAULTS > UTILITIES > Configure Remote Printer
Ÿ Put in the IP address of the remote printer, and the job queue name of that printer,
where AccXES will send the print job data. The remote job queue is in the plt (00-
99) format, with an extension letter of t, c, h, b, or l. Your choices will show on the
screen, for example: (plt00.c).
5. Press the Update Remote Printer button to set your choices.
6. Select Printer Defaults > Network > TCP/IP. Check that the Subnet Mask, IP
Address, and Gateway settings are correct. These are needed so that your
workstation will be able to communicate with your AccXES compliant scanner and
printer.
Web Print Manager Tool User Guide Page 11
