Quick Start Guide

Addendum for Xerox
Integrated Fiery Color Server
For the

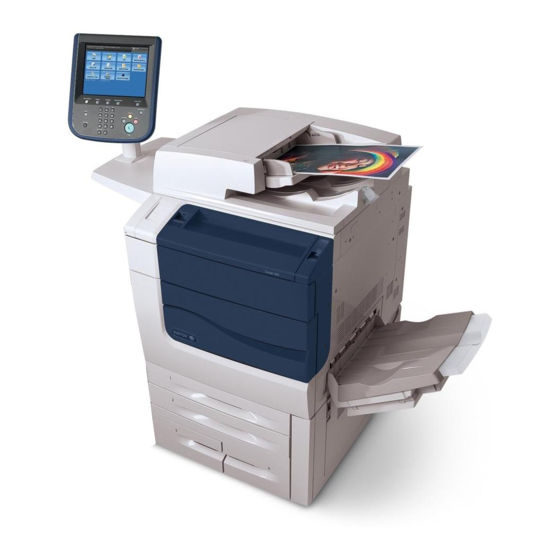

Xerox Color 550 Production Printer
August 2010
45084799

Advertisement

loading

  Related Manuals for Xerox Integrated Fiery Color Server

  Summary of Contents for Xerox Integrated Fiery Color Server

  • Page 1: Quick Start Guide

    Quick Start Guide Addendum for Xerox Integrated Fiery Color Server For the Xerox Color 550 Production Printer August 2010 45084799...
  • Page 2: Module 1 Introduction

    By the end of this module you will be able to do the following:  Identify required training modules  Locate information on the Integrated Fiery Color Server in the Installation and Service Guide  Describe Integrated Fiery Color Server features ...
  • Page 3: Training Overview

    INTRODUCTION Integrated Fiery Color Server Training overview This course is designed for both the Xerox Analyst and the Service Representative.  For Xerox Analysts, Module 2: Configuration of the Integrated Fiery Color Server is required and Module 3: Servicing the Integrated Fiery Network Controller is optional.
  • Page 4: Specifications

    WorkStation can be used to download additional fonts.  Use built-in ColorWise™ color management and NetWise™ networking features. Specifications The Integrated Fiery Color Server Hardware specifications include:  Celeron M440 Solo Intel 1.86GHz CPU  512 MB Memory (minimum) ...
  • Page 5: Network Connectivity

    How the Fiery Network Controller Operates To gain an understanding of how the Fiery Color Server Operates, consult the Integrated Fiery Color Server for the WC 7700 Series MFP Installation and Service Guide, Introduction. Service Documentation This training document is intended to provide general procedures.
  • Page 6: Module Summary

    Module Summary This module provided you with an overview of this training program and the Integrated Fiery Color Server. Review the objectives at the beginning of the module. If you do not feel comfortable with you ability to perform any objective, review the materials for that objective.
  • Page 7 INTRODUCTION Integrated Fiery Color Server Notes 8/09 CONFIGURATION TRAINING GUIDE...
  • Page 8 Fiery Color Server Introduction Module overview This Module (Configuration of the Integrated Fiery Color Server) provides you with information on how to setup the Integrated Fiery Color Server Procedural information on configuring the Integrated Fiery Color Server will be referenced to the Integrated Fiery Color...
  • Page 9: Preparing For Fiery Setup

    550 Production Printer (Optional) Consult the Fiery Installation Instructions for the Xerox Color 550 Production Printer, section: Network Switch Connection (Optional) for information on setting up the Fiery to connect to the Xerox Color 550 Production Printer using a Network Switch (purchased separately).
  • Page 10 Setup from the copier touch panel To setup the Fiery from the Copier touch panel, consult the Integrated Fiery Color Server for Xerox Color 550 Production Printer Configuration and Setup Guide, section: Setting up the copier, EFI Xerox Color 550 Config.
  • Page 11 CONFIGURATION Integrated Fiery Color Server Accessing and using Configure To set up the Fiery from a network computer, use Configure. You can access Configure in these ways:  WebTools from a supported Internet browser  Command WorkStation, Windows Edition. To access configure from an Internet Browser 1.
  • Page 12 Integrated Fiery Color Server CONFIGURATION Module Summary This module provided you with information on how to setup the Integrated Fiery Color Server. Review the objectives at the beginning of the module. If you do not feel comfortable with your ability to perform any objective, review the materials for that objective.
  • Page 13 CONFIGURATION Integrated Fiery Color Server Notes 8/09 CONFIGURATION TRAINING GUIDE...
  • Page 14 Servicing the Integrated Fiery Color Server Introduction Module Overview This Servicing the Integrated Fiery Color Server Module will provide you with information on how to service the Integrated Fiery Color Server. NOTE This module is intended to familiarize you with general service procedures.
  • Page 15: Service Documentation

    SERVICING Integrated Fiery Color Server for Xerox Color 550 Production Printer Fiery Media Pack The Fiery media pack contains the following:  System Software DVDs (1), for service use only  User Software (Utilities) DVD  User Documentation CD ...
  • Page 16: Installation

    User Documentation CD onto any client computer. Installation Installation Preparation and Procedures If you will be installing the Integrated Fiery Color Server, consult the Integrated Fiery Color Server, Xerox Color 550 Production Printer Installation and Service Guide, Installation. ...
  • Page 17 Integrated Fiery Color Server for Xerox Color 550 Production Printer Copier mode DHCP Setup To connect the Integrated Fiery Color Server to the Xerox Color 550 Production Printer, the Systems settings network protocol must be set to DHCP for the Fiery to properly print to the copier. The below steps describe the procedure for setting the copier protocol to DHCP.
  • Page 18: Led Diagnostic Codes

    Checking Integrated Fiery Color Server Internal Connections For the procedures to Check the Integrated Fiery Color Server Internal Connection, consult the Integrated Fiery Color Server for Xerox Color 550 Production Printer Installation and Service Guide Series for Xerox Color 550 Production Printer, Service Procedures.
  • Page 19: Installing System Software

    SERVICING Integrated Fiery Color Server for Xerox Color 550 Production Printer Removing and replacing Fiery Controller components If you would to like learn the procedures to replace the various components in the Integrated Fiery Color Server, consult the Integrated Fiery Color Server for Xerox Color 550 Production Printer Installation and Service Guide Series for Xerox Color 550 Production Printer, Service Procedures.
  • Page 20 PS test file found on the Service/Training CD titled “Color550ColorTest-Letter.ps” or “Color550ColorTest-A4.ps” can be printed to both the Fiery and the internal Xerox Color 550 Production Printer Controller to assist in isolating printing issues. Note: The test Color550ColorTest-Letter.ps will print on US Letter LEF paper (Long Edge Feed).
  • Page 21 SERVICING Integrated Fiery Color Server for Xerox Color 550 Production Printer To print the PS Test file to the Xerox Color 550 Production Printer internal controller. Note: The test Color550ColorTest-Letter.ps will print on US Letter SEF paper (Short Edge Feed). Please ensure that US Letter paper is load accordingly.
  • Page 22: Error Messages

    If the print quality if different between the Fiery and the internal controller, consult the Integrated Fiery Color Server for Xerox Color 550 Production Printer Installation and Service Guide Series for Xerox Color 550 Production Printer.
  • Page 23 SERVICING Integrated Fiery Color Server for Xerox Color 550 Production Printer Module Summary This module provided you with information on how to service the Integrated Fiery Color Server. Review the objectives at the beginning of the module. If you do not feel comfortable with you ability to perform any objective, review the materials for that objective.
  • Page 24 Copyright © 2010 Electronics for Imaging, Inc. All rights reserved.
