Low Voltage Wiring

Valve Actuators
The Pro Logic can control up to four (PS-4/8) or eight (PS-16) 24V automatic valve actuators. Two of the valve
outputs are dedicated to the pool/spa suction (Valve2) and return (Valve1) valves. Valve3 and Valve4 (Valves3, 4,
7-10 for PS-16) are for general purpose use (solar, water feature, in-floor cleaner, etc.). For installations with solar
heating, Hayward offers the AQ-SOL-KIT-xx solar kit that contains a valve, actuator, and extra temperature
sensor. The "xx" indicates the valve type from the 2 choices below:
-1P 1.5" Positive Seal
-2P 2" Positive Seal
The Pro Logic is compatible with standard valve actuators manufactured by Hayward, Pentair/Compool, and
Jandy. See diagram on page 12 for the location of valve connectors.
Heater Control
The Pro Logic allows for independent control of up to 2 heaters plus a solar heating system if applicable. A typical
use for this feature is on a pool that has both a gas heater (for rapid heating of the spa) and a heat pump (for
economical heating of the pool). IMPORTANT: If you chose to use the "Heater2" control output, then you
will not be able to use the "Valve4" output. These 2 functions use the same internal relay and only one can be
enabled. In the configuration menu, if "Heater2" is enabled, then the configuration for "Valve4" will never appear.
The heater interface wiring, as described below, is identical for "Heater1" and "Heater2" except for the terminal
connections at the Pro Logic control.
The Pro Logic provides a set of low voltage dry contacts that can be connected to most gas heaters or heat pumps
with 24V control circuits. Refer to the diagram on the following page for a generic connection. The manuals
supplied with most heaters also include specific wiring instructions for connecting the heater to an external control
(usually identified as "2-wire" remote control). For millivolt or line voltage heaters, contact Hayward Tech support,
908-355-7995. Refer to the diagrams and the information on the following pages for more details on the connec-
tion to several popular heaters.
Generic Heaters
1. Wire heater to 120/240V power source per the instructions in the heater manual. The Pro Logic does NOT
control the power going to the heater.

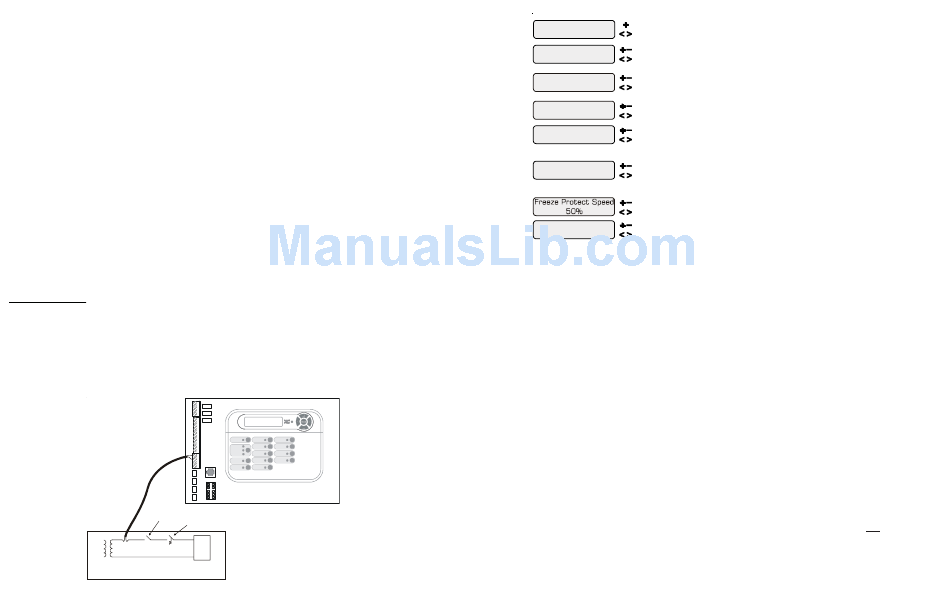

2. Wire the Pro Logic dry contact heater output per the diagram below. Many internal parts of the heater can get
very hot--see the heater manufacturer's recommendations on the minimum temperature rating for wires. If no
guidance is given, use 105°C rated wire.
3. Set any ON/OFF switch on the heater to ON.
4. Set the thermostat(s) on the heater to the maximum (hottest) setting.
Kill Switch
Thermostat
Heater
Ignition/Valve
15
if "Pool & Spa Dual" is selected
Spa Filter Config. Push to access Spa Filter options
+ to view/change
Move to previous/next configuration menu item
Spa Filter Pump Rotates between 1-speed (default), 2-speed and variable speed options
1 Speed
Move to next menu item
if "Variable Speed" is selected
Lowest Speed Adjust the lowest speed desired for variable speed operation
10%
Move to next menu item
if "Variable Speed" is selected
Highest Speed Adjust the highest speed desired for variable speed operation
100%
Move to next menu item
Freeze Protect Toggle between Enabled (default) and Disabled Freeze Protection
Enabled
Move to next menu item or previous/next configuration menu
if "Freeze Protect" is enabled
and "2-speed Filter" is selected
Freeze Protect Toggle between high speed (default) and low speed
High Speed
Move to next menu item
if "Freeze Protect" is enabled
and "Variable Speed" is selected
Select the desired Freeze Protection speed from Spa Filter Lowest to Highest speed
Move to next menu item
External Input Toggle between Enabled and Disabled (default)
Disabled
Move to previous/next configuration menu
Spa Filter Pump
For 2-speed pumps: When a 2-speed pump is configured, one of the AUX relays must also be
configured to control the low speed motor winding on the pump. Refer to the appropriate sections in
the Installation manual for specific information regarding the control logic for 2-speed and variable
speed pump operation.
For the Hayward variable speed pump: The Spa Filter (Aux1) relay is used to supply input power to
the pump. The relay will be on when the filter pump output is on. When the filter pump output is off,
the relay will be off. On , Off and speed is controlled by commands sent to the pump.
Lowest Speed
This is the lowest speed that the variable speed pump is allowed to run at. It is used as the lower limit
in the Spa Low Speed Settings Menu. Set lowest speed from 10% (default) to 50%.
Highest Speed
This is the highest speed that the variable speed pump is allowed to run at. It is used as the upper limit
in the Spa High Speed Settings Menu. Also, this is the speed that the pump will run during the first 3
minutes of operation anytime the pump has been off for more than 30 seconds. Set highest speed from
20% to 100% (default).
Freeze Protection
Freeze protection is used to protect the spa and plumbed equipment against freeze damage. If freeze
protection is enabled and the AIR temperature sensor falls below the freeze threshold (selectable in
Filter Configuration Menu - page 26), the Pro Logic will turn on the spa filter pump to circulate the
water.
Freeze Protection Speed
This menu only appears if freeze protection is enabled and the pump is configured for 2-speed or
variable speed pump operation. If the pump turns on due to freeze protection only, the pump will run
at this speed.
2-Speed pumps: Select high (default) or low speed operation.
Variable Speed pumps: Select the desired speed (from Filter Lowest to Filter Highest speed).
