Connecting the Internal
SATA Tape Drive to the
Server

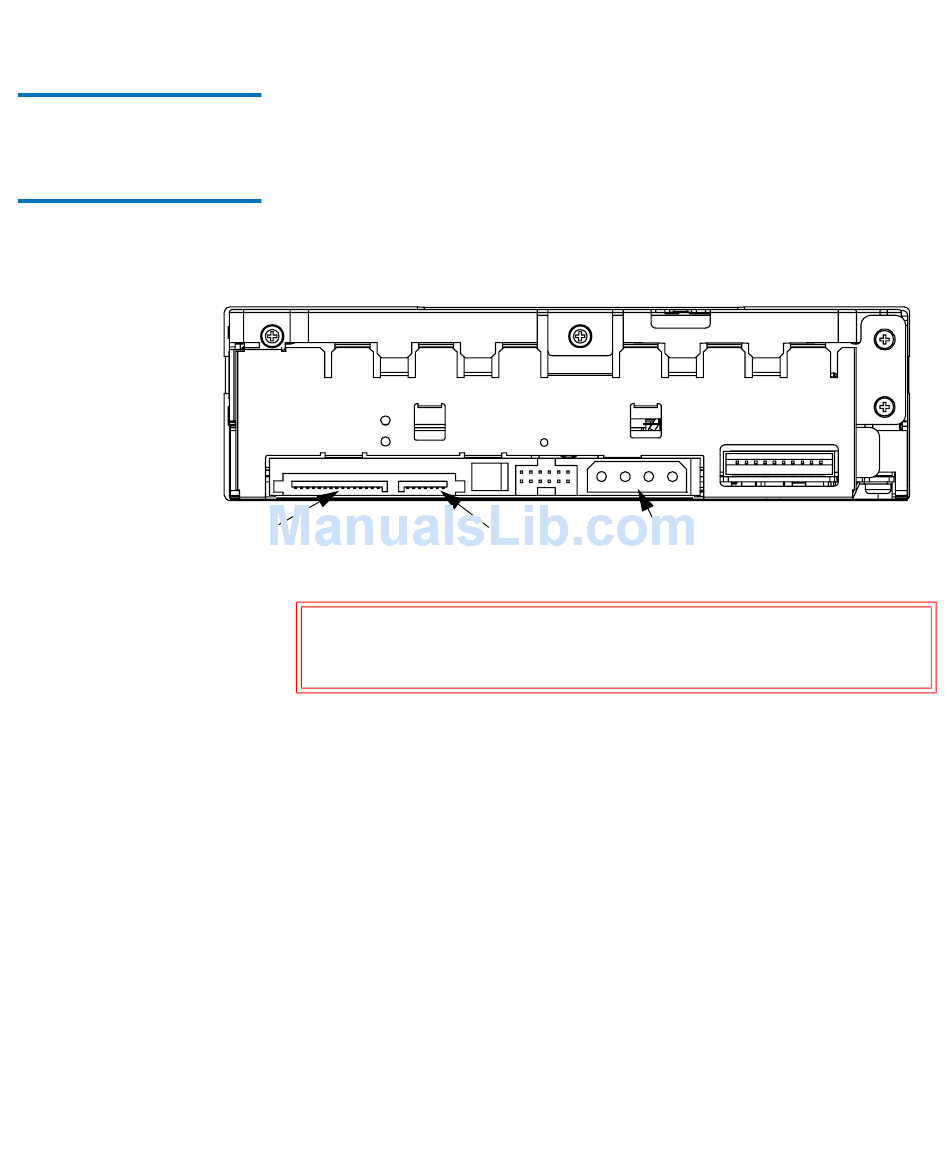

Figure 15 Rear Panel
Connections for the SATA
Internal Tape Drive
DLT-V4 Product Manual
The internal SATA tape drive attaches to the server through a SATA
interface card.
2
SATA power connector
Caution:
Connect one end of the SATA data cable to the tape drive and the
1
other end of the SATA data cable to the SATA host bus adapter.
Connect either the SATA power cable or drive power cable to the tape
2
drive.
SATA data connector
Connect only one power cable to the drive; connecting
both the SATA power cable and the drive power cable to
the tape drive may damage the tape drive.
Chapter 2 Installing the Tape Drive
Installing the Internal SATA Tape Drive
Drive power connector
29
