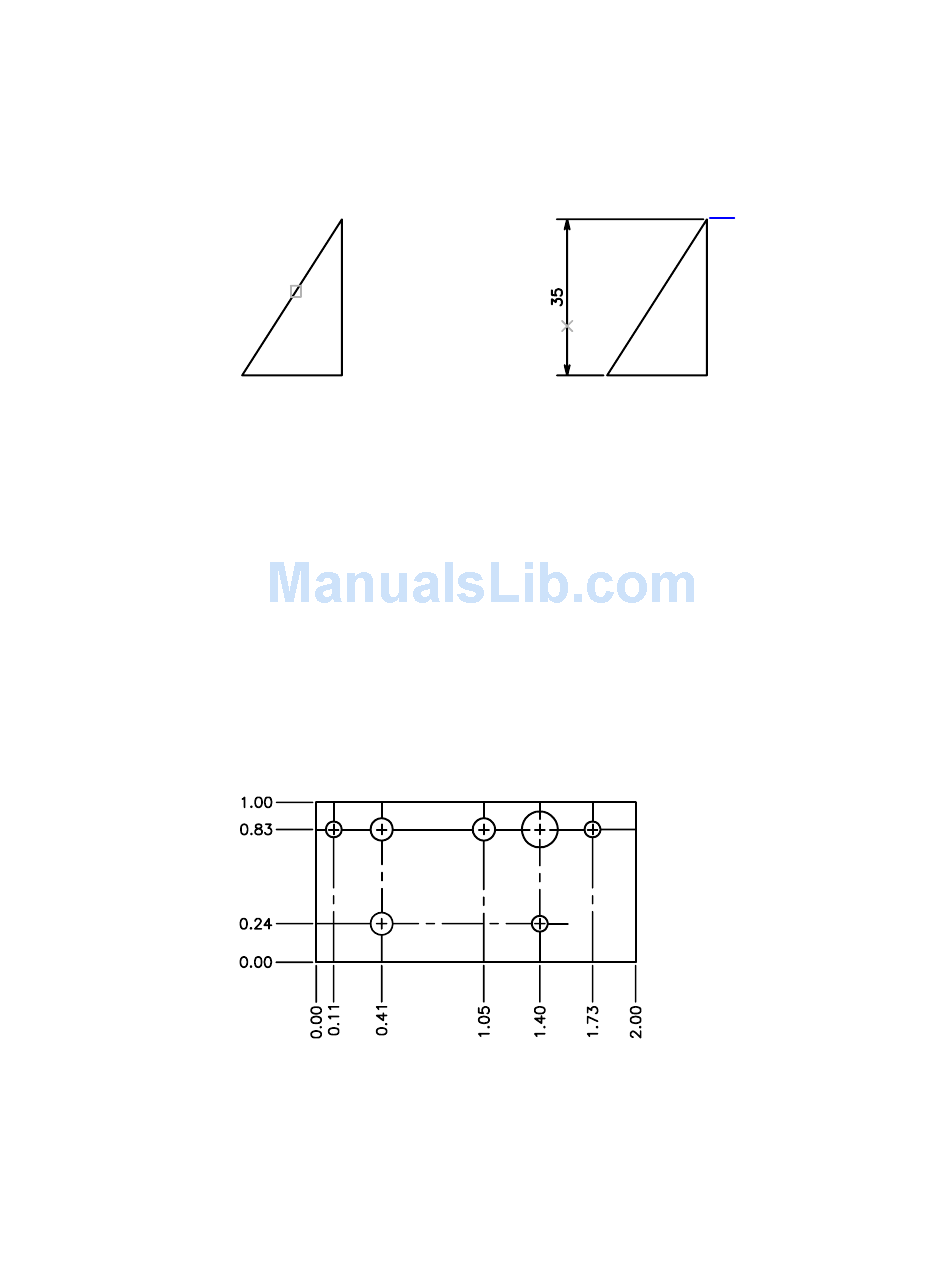

If you select a line or an arc, the line or arc endpoints are used as the origins
of the extension lines. The extension lines are offset from the endpoints by
the distance you specify in Offset from Origin in the Lines and Arrows tab of
the New, Modify, and Override Dimension Style dialog boxes. See DIMSTYLE.
This value is stored in the DIMEXO system variable.
object selected
If you select a circle, the diameter endpoints are used as the origins of the
extension line. When the point used to select the circle is close to the north
or south quadrant point, a horizontal dimension is drawn. When the point
used to select the circle is close to the east or west quadrant point, a vertical
dimension is drawn.

DIMORDINATE

Creates ordinate point dimensions
Dimension toolbar:
dimension line
location designated
Viewpoint Presets Dialog Box | 339
offset from origin
(DIMEXO system
variable)
