9. Remove the nine screws from the server board (see letter "A") and lift the server
board from the server system (see letter "B").
10. Replace the server board. For instructions, see
page
11. Install the processor. For instructions, see
12. Install the DIMMs. For instructions, see
13. Install the PCIe* Riser assembly. For instructions, see

Assembly" on page

14. Reconnect all cables to the server board. For a full cabling diagram, see

on page

15. Install the processor air duct. For instructions, see
Duct" on page
16. Install the server system cover. For instructions, see
Cover".
®
Intel Server System SR1530SH/SR1530HSH User's Guide
A

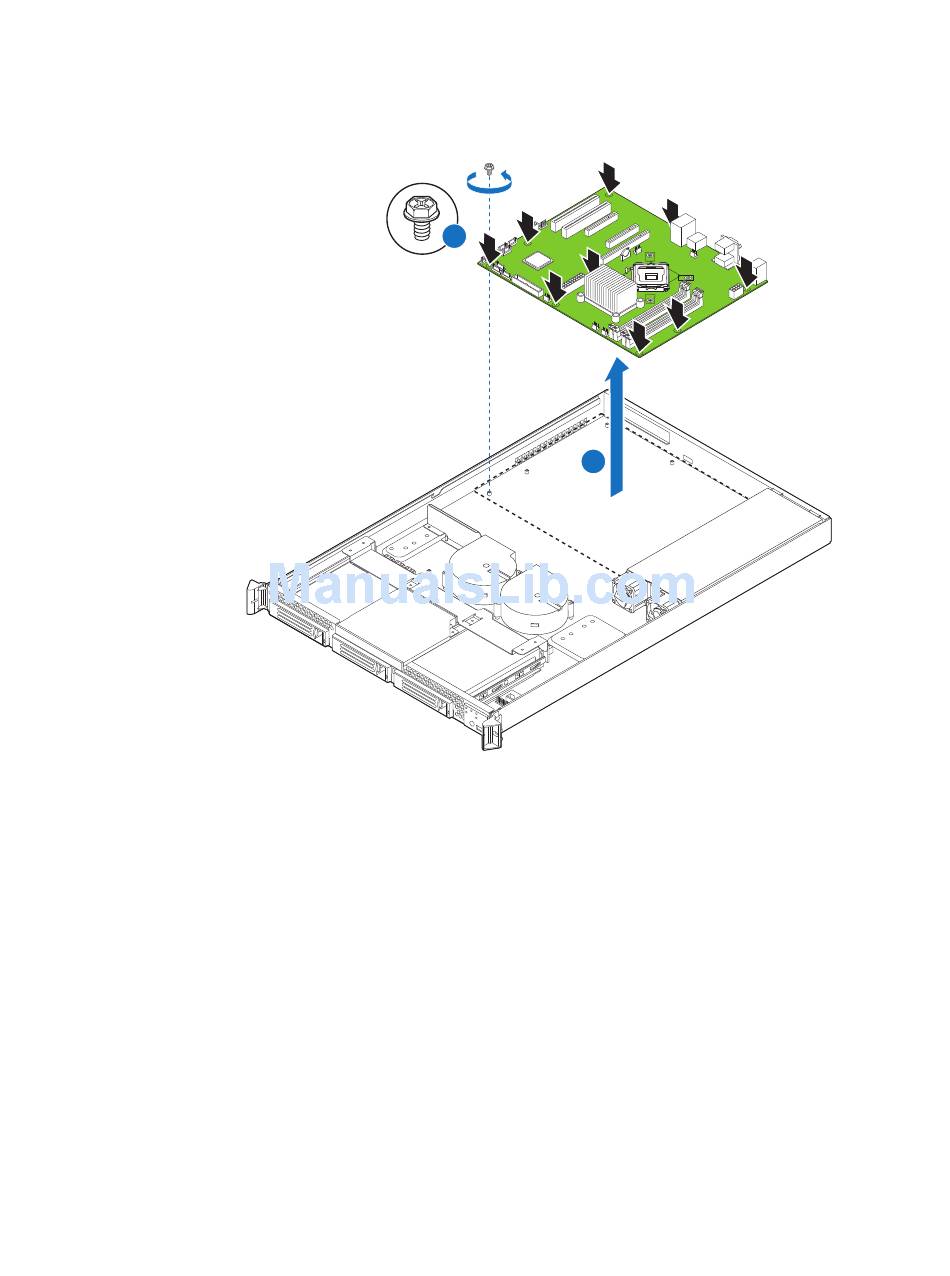

Figure 57. Removing the Server Board

64.
56.
88.
29.
B
"Installing the Server Board" on
"Installing the Processor" on page

"Installing DIMMs" on page

"Installing the PCIe* Riser

"Installing the Processor Air
"Installing the Server System
AF002331
34.
31.
Figure 80
63
