Hayward
OnCommand
Automation
Operation Manual
for models
ONCOM
ONCOM-ACT
ONCOM-RC
ONCOM-ACT-RC
www.hayward.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OnCommand® and is the answer not in the manual?

Questions and answers

Related Manuals for Hayward OnCommand®

Summary of Contents for Hayward OnCommand®

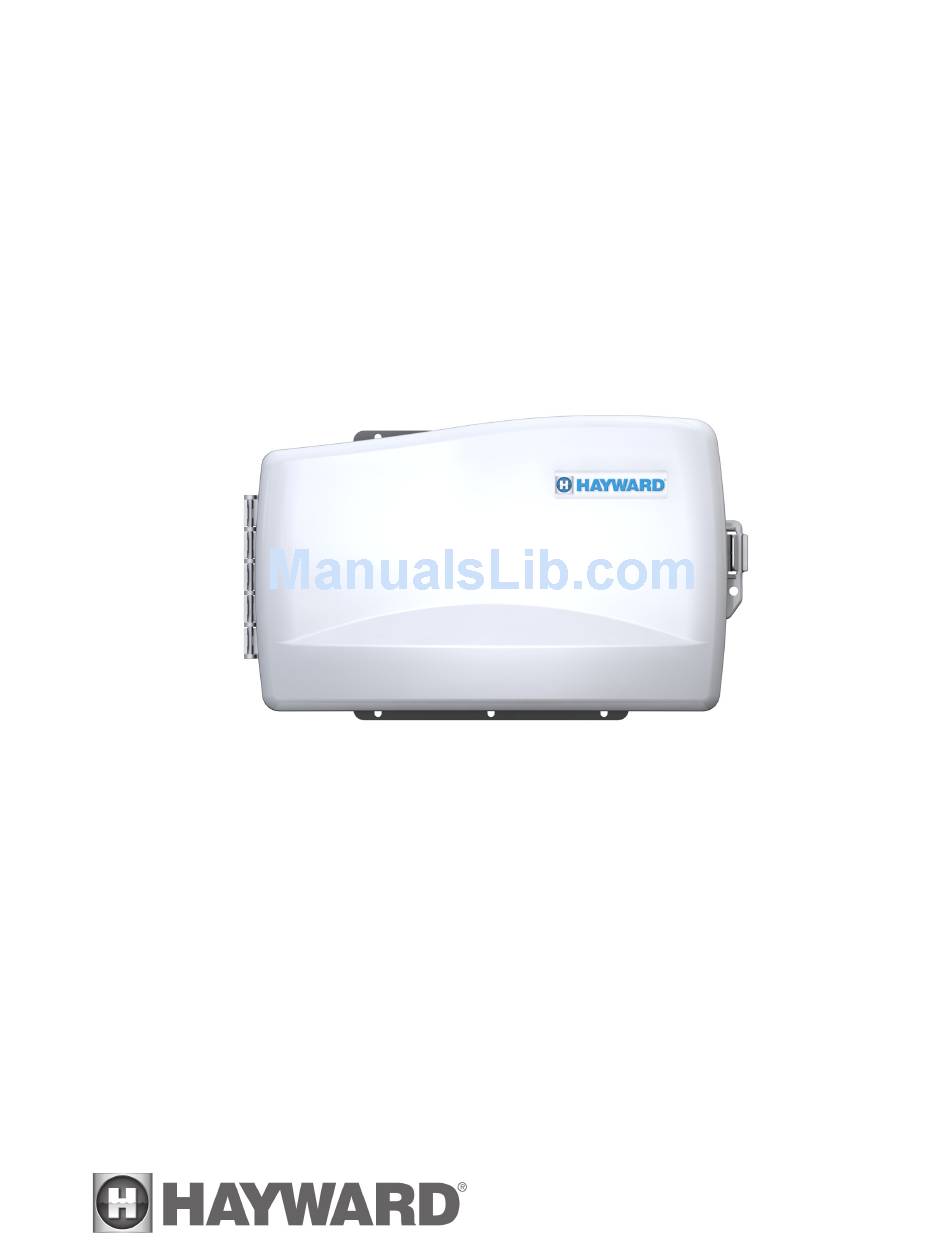

  • Page 1 Hayward OnCommand Automation Operation Manual for models ONCOM ONCOM-ACT ONCOM-RC ONCOM-ACT-RC www.hayward.com...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS When using this electrical equipment, basic safety precautions should always be followed, including the following: READ AND FOLLOW ALL INSTRUCTIONS • • WARNING: Disconnect all AC power during installation. • WARNING: Water in excess of 100 degrees Fahrenheit may be hazardous to your health.

  • Page 3: Table Of Contents

    Table of Contents System Overview Block Diagram............... 1 Automation................1 Manual System Filter Pump................2 Operation Lights and Aux Outputs............3 Pool/Spa Valves..............3 Service..................3 Automatic System Using the Programming Buttons.......... 4 Operation Programming Menu Flow Chart........... 5 (Programming) Settings Menu................

  • Page 4: System Overview Block Diagram

    Both manual and automatic (programmed) operation are available. All of the control functions are programmed at the unit’s display/keypad. Although the OnCommand has no built- in chlorinator feature, it can control an external Goldline Aqua Rite or Hayward Swimpure chlorinator.

  • Page 5: Manual System Filter Pump

    Manual System Operation Turn the power on at the main panel and turn the OnCommand control power circuit breaker on. The keypad will show the default display. The default display alternates between the day/time, air and pool (or spa) temperature. Under certain circumstances, additional displays may be added to the default menu to inform you about system operation.

  • Page 6: Operation Lights And Aux Outputs

    Lights, Aux1 and Aux2 Outputs Standard Relay: Manual operation of all 3 relays is identical. Assuming that the relay is currently off, simply press the appropriate button to turn on the relay. If the relay does not turn on, it probably is due to the “interlock” feature (which was set up in the Configuration Menu) being activated that requires the filter pump to be running and the valves to be in the pool-only position.

  • Page 7: Automatic System Using The Programming Buttons

    Automatic System Operation The OnCommand controls most of your pool equipment automatically in order to minimize the time spent working on your pool. Most of the pool equipment can be programmed to operate on a timeclock basis. In addition, the desired pool and spa temperatures can be programmed.

  • Page 8: Operation Programming Menu Flow Chart

    Programming Menu Flowchart The OnCommand’s five menus have many items that allow you to customize the operation of your pool/spa equipment. The chart below shows the OnCommand’s menus as well as each menu’s specific settings. default menu day and time water temperature air temperature chlorinator setting...

  • Page 9: (Programming) Settings Menu

    The Default Menu is a series of informative displays with nothing to set. The OnCommand will automatically switch to the default menu when no keys have been pressed for 2 minutes and will then scroll through each display. The Settings Menu and the Timers Menu are the menus you will be using most often to adjust the operation of your pool.
  • Page 10 Turn super chlorinate on or off Super Chlorinate Move to previous/next menu item This display only appears if the external chlorinator is enabled. When you have an unusually high bather load, a large amount of rain, a cloudy water condition, or any other condition that requires a large amount of chlorine to be introduced to the pool, activate the OnCommand Super Chlorinate function.
  • Page 11 Pool Low Speed Adjust the desired low speed for variable speed operation Move to previous/next menu item This setting will appear if “spa only” is not selected and variable speed filter pump is enabled. This setting determines the speed of the pump during low speed pool or spillover operation. This value can be set from “Lowest Speed”...

  • Page 12: Timers Menu

    Teach Wireless Push to start process + to start Move to previous/next menu item Press and hold Press any button on wireless remote wireless button Move to previous/next menu item Teach Wireless Move to previous/next menu item Successful Teach Wireless Move to previous/next menu item NOT Successful Teach Wireless...
  • Page 13 T1 and T3 configurations are identical Adjust time setting Set Day and Time Filter T1-all Wednesday 10:37P 8:30A to 4:00P Move between start and stop times & to previous/next menu item Adjust time setting Filter T1-wkend 8:30A to 4:00P Move between start and stop times & to previous/next menu item Adjust time setting Filter T1-wkday 8:30A to 4:00P...
  • Page 14 Adjust time setting Set Day and Time Lights-all Wednesday 10:37P 8:00P to 11:00P Move between start and stop times & to previous/next menu item Adjust time setting Lights-wkend 8:00P to 11:00P Move between start and stop times & to previous/next menu item Adjust time setting Lights-wkday 8:00P to 11:00P...
  • Page 15 Adjust Superchlorination period (1 - 96 hours) Super Chlorinate 24 hours Move to previous/next menu item If external chlorination is enabled. For larger pools or when you have an unusually high bather load, a large amount of rain, a cloudy water condition, or any other condition that requires a large amount of chlorine to be introduced to the pool, adjust the Superchlorination period to provide adequate chlorination.

  • Page 16: Configuration Menu

    Super Chlorinate (requires external chlorinator) If a Hayward Swimpure or Goldline Aqua Rite chlorinator is used, the OnCommand can be programmed to Super Chlorinate the pool or spa while running a group command. When the group starts, the Super Chlorinate cycle will begin.
  • Page 17 Pool/Spa Config. Push to access Pool/Spa options + to view/change Move to previous/next configuration menu Rotates between Pool Only (default), Spa Only and Pool/Spa Setup Pool and Spa Pool and Spa Move to next menu item if “Pool and Spa” is selected Spa - CountDn Adjust time setting (Manual On/Off, 0:05, 0:10, 0:15..., (default is 4:00)) 00:30...
  • Page 18 For the Hayward Tristar variable speed pump: The Filter relay is used to supply input power to the VSC pump control. The relay will be on when the filter pump output is on. When the filter pump output is off, the relay will be off.
  • Page 19 Heater Config. Push to access heater options + to view/change Move to previous/next configuration menu Toggle between Enabled and Disabled (default) Heater Heater Disable Move to next menu item or previous/next configuration menu if “Heater1” is enabled Heater Cooldown Toggle between Enabled and Disabled (default) Heater Cooldown Disabled Move to next menu item if “Heater1”...
  • Page 20 Solar Config. Push to access solar options + to view/change Move to previous/next configuration menu Toggle between Enabled and Disabled (default) Solar Solar Disabled Move to next menu item or previous/next configuration menu if “Solar” is enabled Toggle between Enabled and Disabled (default) Solar Extend Solar-Extend Disabled Move to next menu item...
  • Page 21 Lights Config. Push to access Lights options + to view/change Move to previous/next configuration menu Rotates between Manual On/Off (default), Countdown Timer, Lights Function Low Speed- Filter, Timeclock, Solar, and Super Chlorinate Manual On/Off Move to next menu item for manual on/off, countdown timer and timeclock functions Lights Relay Toggle between Standard (default) and Dimmer...
  • Page 22 Lights Interlock If enabled, this feature will override the function (Manual On/Off, Countdown Timer, Timeclock) selected above and turn the lights relay off when: filter pump is off, first 3 minutes of filter pump operation (allows the pump to prime and get water flowing), when the pool/spa suction return valves are in any position other than “pool only”, or for the first 3 minutes after solar turns on (allows air in the solar panels to be purged).
  • Page 23 Countdown Timer – the aux relay will turn on when the AUX button is pressed and then will turn off automatically after a programmed time (see Timers Menu, Operation Manual). The AUX button can also be used to turn the output off. Low Speed of a 2-speed Filter Pump –...
  • Page 24 Valve3 Config. Push to access Valve3 options + to view/change Move to previous/next configuration menu Rotates between Timecloc (default), Solar, In-floor Cleaner, Valve3 Function Filter, Lights, Aux1 and Aux2 Solar Move to next menu item for all functions except solar and super chlorinate Toggle between Enabled and Disabled (default) Valve3 Interlock Valve3 Interlock Disabled...

  • Page 25: Quick "How To" Operate The Spa - Manually

    Toggle between Enabled (default) and Disabled Remote Menus Remote Menus Enabled Move to previous/next configuration menu This feature will prevent unauthorized access to the Settings, Timers, and Configuration menus from any of the OnCommand’s remote display/keypads. When disabled, the remote display/keypads will only show the default menu and allow on/off control via the pushbuttons.

  • Page 26: Set The Heater Temperature

    Note: During the programmed spa time, the valves will automatically switch to the “spa-only” position, the filter pump will turn on, and, if the spa is not up to the desired temperature, the heater will start. This operation is the highest priority and will take precedence over other automatically programmed operations.

  • Page 27: Enter/Exit Service Mode

    Note: A setting of 0:00 will display as “manual on/off”. The countdown automatic turn off function is disabled but manual operation is still permitted. There may be other automatic or manual operations that prevent the relay/valve from operating—see a more detailed discussion under Automatic System Operation/Timers Menu/Aux Timeclock or in Troubleshooting/Diag- nostic Information.

  • Page 28: Diagnostic Menu

    • Pool VSC Comm -- If variable speed is selected for the Pool Filter and the Hayward VSC is not responding. • Pool VSC Err: x -- If variable speed is selected for the Pool Filter and the Hayward VSC is indicating and error.

  • Page 29: Software Revision

    ID:1234 Move to previous/next menu item Available displays depend on configuration. If you call the Hayward/Goldline Technical Service Dept. for assistance, they may ask for the software revisions of both the main unit and each of the display/keypads or other devices that are attached to the system. Note that it is possible that different display/keypads have different software revision levels.

  • Page 31: Warranty Oncommand Warranty

    (3) years. Hayward also warrants its Aqua Trol chlorination products to be free of defects in materials and workmanship, under normal use and service for a period of one (1) year. These warranties are applicable from the initial date of purchase on private residential swimming pools in the US and Canada.
  • Page 32 620 Division St. 092442A RevB Elizabeth, NJ 07207 Copyright © 2009 Hayward...
