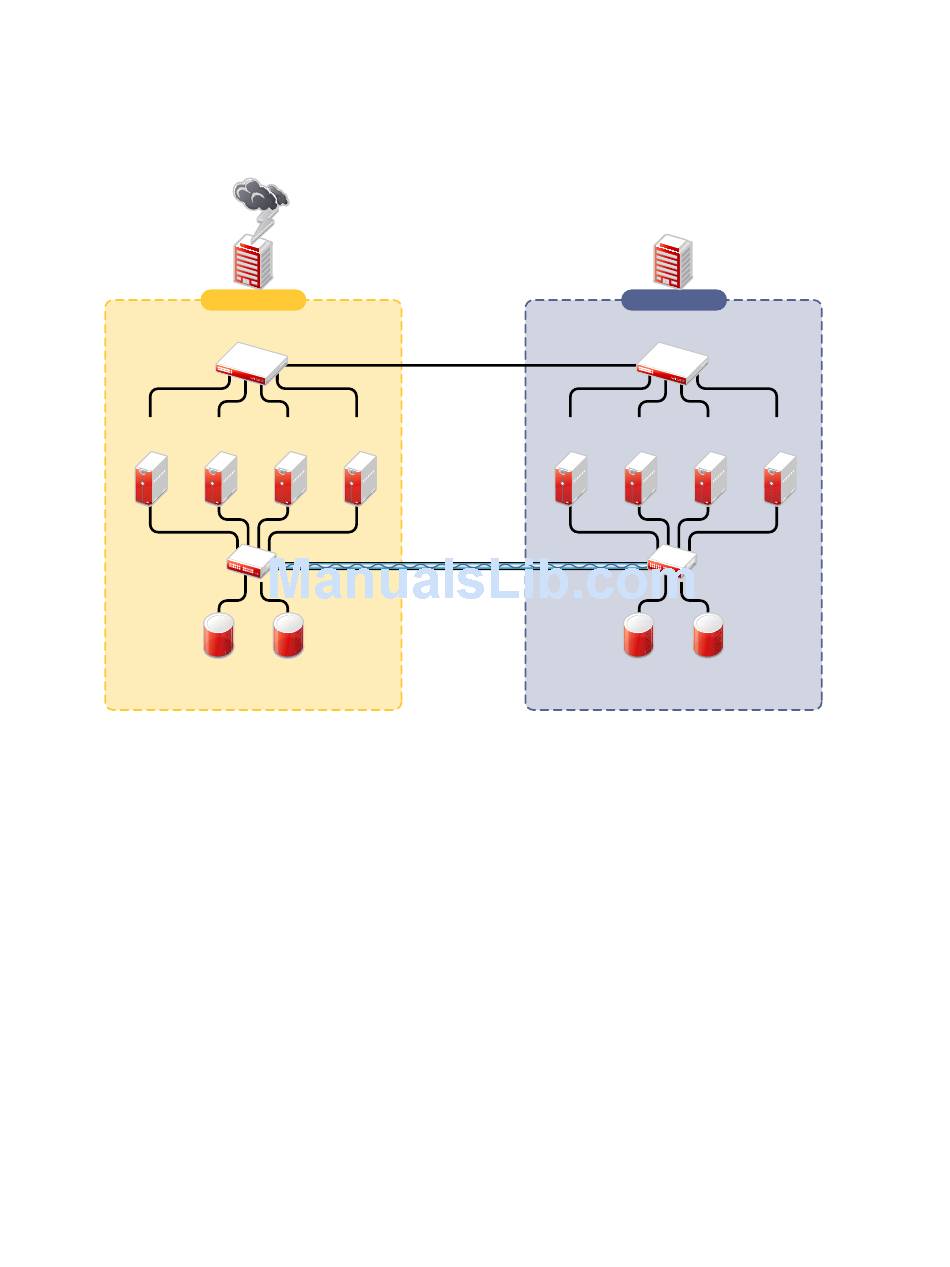

Figure 1-3 shows a two-site business continuity cluster that uses storage-based data replication
between the sites. BCC uses eDirectory and Identity Manager to synchronize cluster information
between the two clusters.
Two-Site Business Continuity Cluster
Figure 1-3
Building A
Ethernet Switch
Server Server Server
1A 2A 3A
Fibre Channel
Switch
Fibre Channel
Disk Arrays
Cluster Site 1

1.4.2 Multiple-Site Business Continuity Cluster Solution

The multiple-site business continuity cluster is a large solution capable of supporting up to four
sites. Each cluster can support up to 32 nodes. Services and applications can do fan-out failover
between sites. Replication of data blocks is typically done by SAN hardware, but it can be done by
host-based mirroring for synchronous replication over short distances up to 10 km.
Two independent clusters at
geographically separate sites
WAN
eDirectory
IDM
Server
4A
SAN
Disk blocks
Building B
Ethernet Switch
Server Server Server
1B 2B 3B
Fibre Channel
Switch
Fibre Channel
Disk Arrays
Cluster Site 2
Server
4B
