Page 1

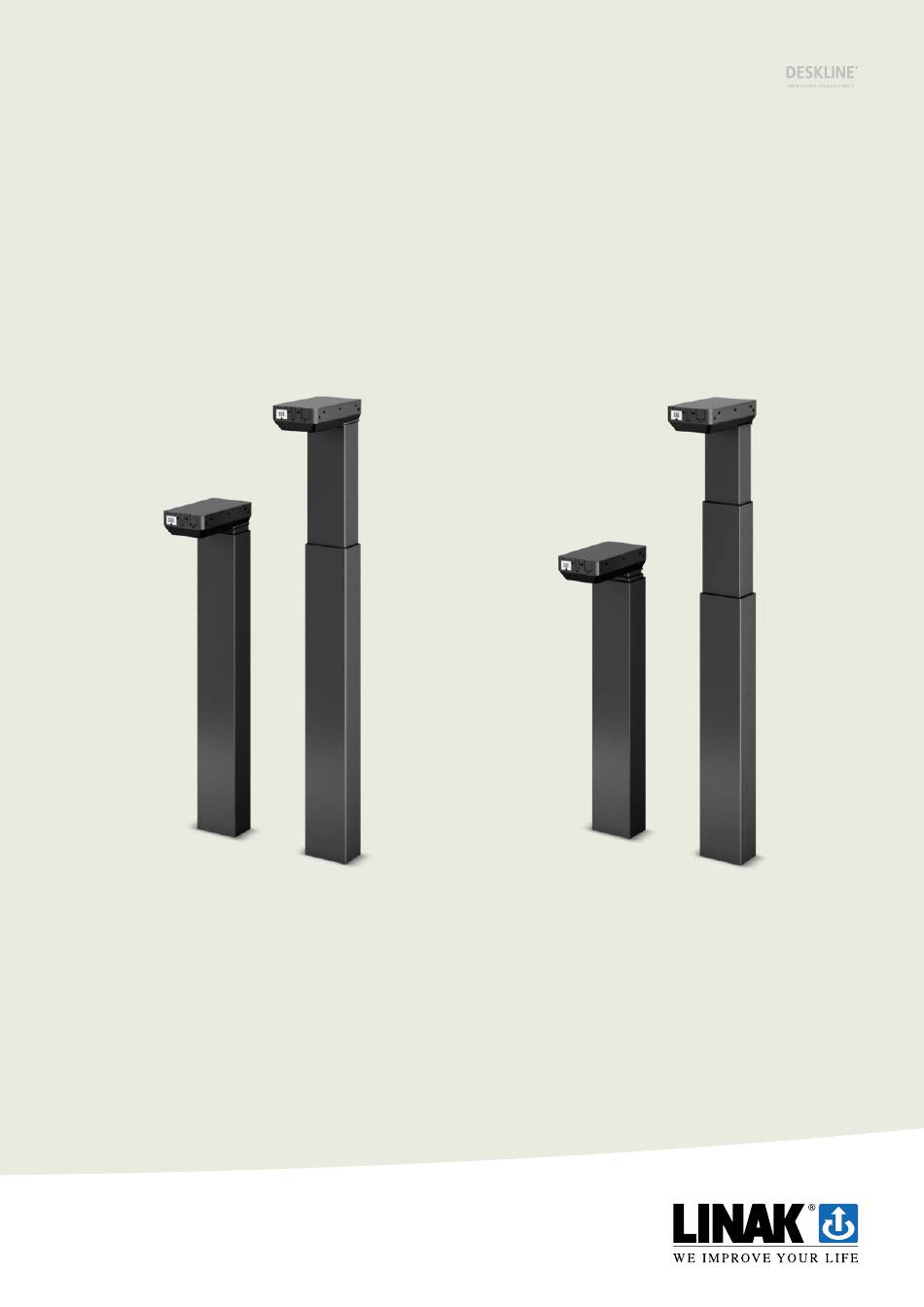

DL20 / DL21 User Manual LINAK.COM/DESKLINE...
Page 2
DL20 / DL21 | Contents Preface ������������������������������������������������������������������������������������������������������������������������������������������ 3 Important safety information ��������������������������������������������������������������������������������������������������������� 4 Informations importantes en matière de sécurité ���������������������������������������������������������������������������� 5 The DESKLINE system ������������������������������������������������������������������������������������������������������������������� 6 ® Intended use ����������������������������������������������������������������������������������������������������������������������������� 6 Warranty ���������������������������������������������������������������������������������������������������������������������������������� 6 Products ������������������������������������������������������������������������������������������������������������������������������������ 7 Safety instructions �������������������������������������������������������������������������������������������������������������������������� 8 Important safety instructions������������������������������������������������������������������������������������������������������...
Page 3
This User Manual does not address the end user� It is intended as a source of information for the equipment or system manufacturer only, and it will tell you how to install, use and maintain your LINAK electronics� The manufacturer of the end product has the responsibility to provide a User Manual, where relevant safety information from this manual is passed on to the end user�...
Page 4
Failure to comply with instructions marked with the ”NOTICE” symbol may result in serious damage to the system or one of its components� Read all instructions before using this product� Important safety information on LINAK products can be found under the following heading(s): ®...
Page 5
Le non-respect des instructions marquées du symbole “AVIS” peut entraîner de graves dommages au système ou à l’un de ses composants� Lisez toutes les instructions avant d’utiliser ce produit� Des informations de sécurité importantes sur les produits LINAK sont disponibles dans la ou les rubriques ®...
Page 6
Altitude Max� 2000 m Do not use outdoors or in wet areas� Do not use it in environments that have to be cleaned with aggressive detergents� Warranty The warranty terms for DESKLINE products are described in this warranty paper: https://cdn�linak�com/-/media/files/warranty/warranty-paper-deskline-eng�pdf...
Page 7
DL20 / DL21 | Products DESKLIFT™ columns DL20 DL21 • 2-part PLUS™ column • 3-part PLUS™ column Control Box CBD6S 200 W 300 W • 230 V AC, 50 Hz • 100-240 V AC, 50-60 Hz (universal) • 120 V AC, 60 Hz Desk panels With up/down drive •...
Page 8
DL20 / DL21 | Safety instructions Important safety instructions General DANGER Plugged-in products Risk of electric shock • Always unplug this product from the electrical outlet before assembling, disassembling, cleaning, or servicing� • Only use the product indoors in dry locations� WARNING General precautions Risk of burns, fire, electric shock, or injury to persons...
Page 9
® In order to avoid the risk of malfunction, all DESKLINE repairs must only be carried out by authorised LINAK ® workshops or repairers, as special tools must be used and special gaskets must be fitted� Lifting units under...
Page 10
DL20 / DL21 | 10 WARNING • This appliance can be used by children aged from 8 years, and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved�...
Page 11
DL20 / DL21 | 11 Consignes importantes de sécurité AVERTISSEMENT • Cet appareil peut-être utilisé par des enfants âgés de 8 ans et plus, ainsi que les personnes dont les capacités physiques, sensorielles ou mentales sont réduites ou ayant un manque d´expérience et de connaissance si elles ont bénéficié...
Page 12
DK - 6430 Nordborg DESKLINE ® Actuator System, model: CBD6S, for use in hereby declares under our sole responsibility that LINAK elevation tables, composed of: Control Box(s) CBD6Sa000b0A-c09, (Where -a: can be P, C or H, -b: can be 2, 3 or 4 and -c: can be 0 or 7)
Page 13
LINAK A/S Smedevænget 8 DK - 6430 Nordborg Herewith declares that LINAK DESKLINE ® products as characterized by the following models and types: Control Boxes: CBD6Sa000b0A-c09 (Where -a: can be P, C or H, -b: can be 2, 3 or 4 and -c: can be 0 or...
Page 14
WARNING Plastic bags Risk of suffocation • Keep the plastic bags away from babies and children� LINAK recommends using the DESKLINE system in push applications with the motor housing ® mounted upwards� Do not bolt the coluimns to the floor so that free movement is obstructed� This could cause serious damage to the columns in fault situations�...
Page 15
DL20 / DL21 | 15 Mounting the feet The bottom plate has four M6 and two M8 threaded holes� 1� Mount the desk foot on the column bottom using four M6 or two M8 screws with the following specifications: Quality: Min�...
Page 16
DL20 / DL21 | 16 1� Mount the feet on the columns using supplied screws� Max� torque:10 Nm� 2� Mount the adjustment screws�...
Page 17
DL20 / DL21 | 17 Click-on The Click-on Feet can only be used with columns with pre-mounted mounting screws and plastic plate� Mounting 1� Align the holes in the foot with the screws on the column� 2� Press down quickly until a ‘Click’ is heard� 3�...
Page 18
DL20 / DL21 | 18 Disassembly 1� Unscrew the two M8 screws until both mounting screws are loosened completely� Switch between the two screws after approximately five turns� 2� Remove the foot from the column�...
Page 19
DL20 / DL21 | 19 Mounting the tabletop The sound from the lifting column spreads as vibrations to the tabletop which amplifies the sound� This can, however, be reduced� 1� Place vibration/shock-absorbing material between tabletop and top frame� Figure 5 Assembled desk Placing the monitor Placement of a monitor directly above the motor housing may cause malfunction of the monitor�...
Page 20
DL20 / DL21 | 20 Assembly of bench systems Assembling the top frames 1� Assemble both top frames and mount them on the tabletops� 2� Mount the columns� 3� Mount the feet 3�1� Mount the bench feet on the columns using two M8 mounting screws� 3�2�...
Page 21
DL20 / DL21 | 21 1�4� Place the cross members on the pins using the guiding holes in the cross members� The opening in the cross member must face upwards� 1�5� Fasten the hex flange nuts by hand and tighten them using an M8 wrench (max� torque 16 Nm)�...
Page 22
DL20 / DL21 | 22 Bench options Cable tray A cable tray can be mounted in a bench system to ease cable management� Be careful not to squeeze cable or fingers when adjusting the cable tray length� 1� Place the hooks on the cable tray bottom part in the slots on one of the cross members� 2�...
Page 23
DL20 / DL21 | 23 Bridge For connecting multiple bench systems, use a bridge� 1� Place the bridge on top of the cross member on two bench systems and press down until a click is heard� The two bench systems are now connected� Privacy screen option The cross members have two M6 holes for mounting a privacy screen between two benched desks�...
Page 24
DL20 / DL21 | 24 Mounting the CBD6S Do not pack the CBD6S in heat-insulating material� Place the CBD6S so it can emit heat through its surface to the surroundings� 1� Plug the mains cable into the CBD6S� 2� Place the mains cable in the groove for cable relief� 3�...
Page 25
The first two times the system moves into end stop in upward direction, the system runs approximately 5 mm back to initialise in upward direction� Operation For operation of the DESKLINE system, please refer to the relevant desk panel operating guide which is ® available on our website: https://www�linak�com/user-manuals/deskline/...
Page 26
The way to minimise the damage to a desk is fast detection of a collision with an object followed by reverse driving of the desk� LINAK offers three types of anti-collision systems� ®...
Page 27
DL20 / DL21 | 27 Gyroscope The gyroscopic sensor reacts on even the smallest tilting in any direction with respect to its position at the beginning of the desk drive� When the desk runs into an object, the tabletop will start tilting and the gyroscopic sensor detects a collision�...
Page 28
DL20 / DL21 | 28 Maintenance Clean dust and dirt from the outside of the system at appropriate intervals and inspect for damage and breaks� Inspect connections, cables, and plugs without disconnecting, and check functioning as well as fixing points� CAUTION Loose screws Risk of loss of stability...
Page 29
LINAK service centre� In order to avoid the risk of malfunction, all product repairs must only be carried out by an authorised LINAK Service shop or repairers, as special tools and parts must be used�...
Page 30
LINAK, LINAK subsidiaries, or LINAK affiliates. the same reason, LINAK cannot guarantee the correctness and actual status of imprinted information on All sales are subject to the ‘Standard Terms of Sale and Delivery for LINAK A/S’ available on LINAK websites. its products.
