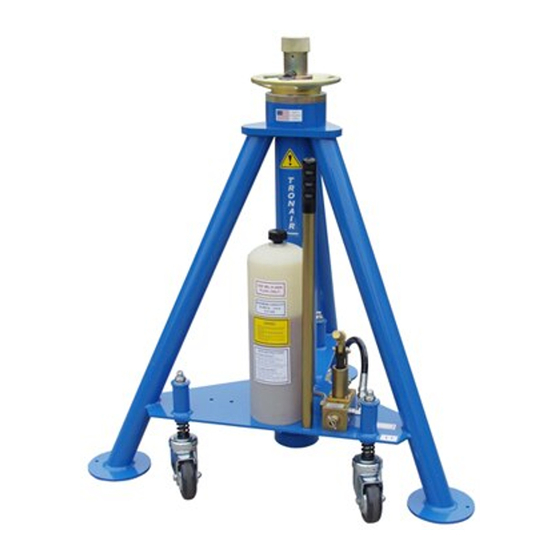

- Page 1 OPERATION & SERVICE MANUAL Models: 02-1248C0112, 02A1248C0112 02A1248C0150 12 Ton (11Metric Ton) Single Stage Jack 03/2020 - Rev. 02 Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
- Page 2 REVISION DATE TEXT AFFECTED 02/2014 Original release 03/2020 Major revision...
- Page 3 Models: 02-1248C0112, 02A1248C0112, 02A1248C0150 12 Ton (11 Metric Ton) Single Stage Jack TABLE OF CONTENTS PAGE PRODUCT INFORMATION .............................. 1 DESCRIPTION..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER .............................. 1 USAGE ................................1 SAFETY INFORMATION ..............................1 USAGE AND SAFETY INFORMATION ......................1 WARNING AND DANGER SIGNS ........................
- Page 4 12 Ton (11 Metric Ton) Single Stage Jack This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., it suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur.
- Page 5 Models: 02-1248C0112, 02A1248C0112, 02A1248C0150 12 Ton (11 Metric Ton) Single Stage Jack SAFETY INFORMATION (continued) NECESSARY PERSONAL PROTECTIVE EQUIPMENT CAUTION! Always wear safety glasses. SAFETY GUIDELINES CAUTION! Do not place hands on top of jack near ram locknuts while lowering jack. Pinch points exist between top of jack and threads on ram.
-
Page 6: Installation
Models: 02-1248C0112, 02A1248C0112, 02A1248C0150 12 Ton (11 Metric Ton) Single Stage Jack ASSEMBLY This product is shipped completely assembled and tested and requires no further assembly before operation. The following sections apply when servicing the unit. GENERAL INSTRUCTIONS This product should be assembled and/or repaired using good workmanship practices and proper tools. Bolts and elastic stopnuts should be tightened to a torque not to exceed industry standards for Grade '5' bolts. -
Page 7: Numerical Values
Models: 02-1248C0112, 02A1248C0112, 02A1248C0150 12 Ton (11 Metric Ton) Single Stage Jack OPERATION OPERATING PARAMETERS The user shall work in accordance with the Operator Manual. At no time shall personnel work under the raised load until it is secured by suitable means, i.e. ram locknut. - Page 8 Load test jacks annually. Only order replacement parts from Tronair. Failure to comply could result in premature failure below certified weight and could cause serious injury including death. Correct Pin Placement 03/2020 | Rev.
- Page 9 Models: 02-1248C0112, 02A1248C0112, 02A1248C0150 12 Ton (11 Metric Ton) Single Stage Jack 6.4.2 Jack Instructions (continued) Incorrect Pin Placements Washer In Ball Lock In Washer On Top Of Locking Pin Not In Ram Protection Ring Ram Protection Ring Ram Protection Ring...
- Page 10 Models: 02-1248C0112, 02A1248C0112, 02A1248C0150 12 Ton (11 Metric Ton) Single Stage Jack 6.4.2 Jack Instructions (continued) Close pump release valve by turning clockwise. NOTE: Turning the pump release valve counter-clockwise lowers the jack. Turning the pump release valve clockwise stops the jack’s descent, and allows it to be raised.
-
Page 11: Troubleshooting
Models: 02-1248C0112, 02A1248C0112, 02A1248C0150 12 Ton (11 Metric Ton) Single Stage Jack TROUBLE SHOOTING TROUBLE PROBABLE CAUSE ACTION Remove piston and pump body. Inspect for Fluid leakage at pump Damaged backup ring, o-ring, piston or damage. Replace defective part(s). Replace... -
Page 12: Maintenance Schedule
Models: 02-1248C0112, 02A1248C0112, 02A1248C0150 12 Ton (11 Metric Ton) Single Stage Jack 10.0 MAINTENANCE 10.1 GENERAL All maintenance and/or repair work should be done using good workmanship practices and proper tools. The work area should be clean and free of dirt. -
Page 13: Pneumatic Pump
GUARANTEES/LIMITATION OF LIABILITY Tronair products are warranted to be free of manufacturing or material defects for a period of one year after shipment to the original customer. This is solely limited to the repair or replacement of defective components. This warranty does not cover the... - Page 14 Models: 02-1248C0112, 02A1248C0112, 02A1248C0150 12 Ton (11 Metric Ton) Single Stage Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description H-1009-01 Assembly, Handle H-1252 Spring K-3469 Kit, Jack Weldment Replacement; consists of:...
- Page 15 Models: 02-1248C0112, 02A1248C0112, 02A1248C0150 12 Ton (11 Metric Ton) Single Stage Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description TF-1043-06*18.0 Assembly, Hose N-2002-05-S Elbow, Swivel Nut, SAE #6...
- Page 16 Models: 02-1248C0112, 02A1248C0112, 02A1248C0150 12 Ton (11 Metric Ton) Single Stage Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description K-3792 Kit, Reservoir Replacement; consists of: N-2412-09 Connector, Straight Male, 1/8 NPT...
- Page 17 Models: 02-1248C0112, 02A1248C0112, 02A1248C0150 12 Ton (11 Metric Ton) Single Stage Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description K-1685 Kit, Repair Fluid Seal (Ref: Appendix II Haskel Literature)
- Page 18 Models: 02-1248C0112, 02A1248C0112, 02A1248C0150 12 Ton (11 Metric Ton) Single Stage Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. For 02-1248C0112 and 02A1248C0112 ONLY Item Part Number Description K-3333 Kit, Blow Gun Replacement; consists of:...
- Page 19 Models: 02-1248C0112, 02A1248C0112, 02A1248C0150 12 Ton (11 Metric Ton) Single Stage Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description HJ-553 Ring, Ram Protection H-2331 Stopnut G-1151-107206 Screw, Socket Head Cap, 3/8-16 x 3/4" long...
- Page 21 APPENDIX I Hydraulic Schematic...
-
Page 23: Hydraulic Schematic
Hydraulic Schematic... - Page 25 APPENDIX II Haskel Air Pump Technical Specifications and Performance Data...
- Page 53 APPENDIX III HC-1961 Hand Pump Parts List...
- Page 55 HC-1961 3250 psi Hand Pump Installation Instructions and Parts List 05/2005 – Rev. OR Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
-
Page 57: Installation Instructions
3250 psi Hand Pump This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., its suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. - Page 58 HC-1961 3250 psi Hand Pump Parts List Illustrations WARNING! Item 10 (H-2606) is a preset relief valve. Do Not disassemble this valve. Replacement parts are available as a preset relief valve assembly 05/2005 | Rev. OR Page | 2...
- Page 59 APPENDIX IV Declaration of Conformity...
-
Page 61: Declaration Of Conformity
Relevant standards complied with by the machinery: prEN 1494:1994 Identification of person empowered to sign on behalf of the Manufacturer: Quality Assurance Representative Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558... - Page 63 APPENDIX V Safety Data Sheet MIL-PRF-5606 Hydraulic Fluid...
- Page 77 APPENDIX VI Maintenance Schedule...
