Summary of Contents for Tronair 02A7874C0110

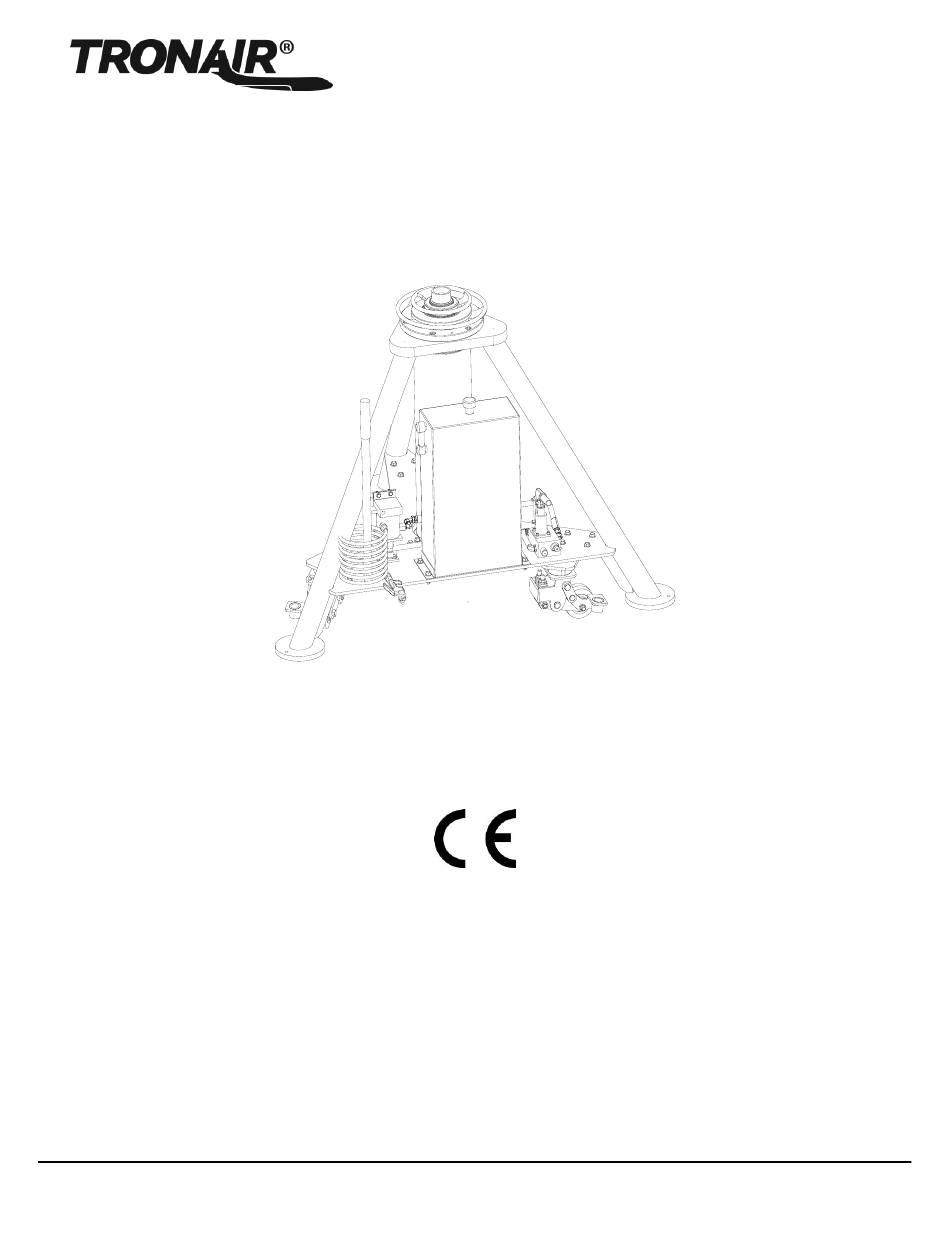

- Page 1 OPERATION & SERVICE MANUAL Model: 02A7874C0110 20 Ton Two Stage Jack 10/2012 - Rev. 02 Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
- Page 2 REVISION DATE TEXT AFFECTED 10/2010 Original Release 10/2012 Modified Parts List...
- Page 3 Model: 02A7874C0110 20 Ton Two Stage Jack TABLE OF CONTENTS PAGE PRODUCT INFORMATION ............................1 USAGE ..................................1 LIST OF DRAWINGS ..............................1 SAFETY INFORMATION............................... 1 ALARM AND WARNING SYSTEMS .......................... 1 WARNING AND DANGER SIGNS ..........................1 COMPONENT SAFETY FEATURES ......................... 1 FUNCTIONAL SAFETY FEATURES: ........................
- Page 4 20 Ton Two Stage Jack This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., it suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur.
- Page 5 Model: 02A7874C0110 20 Ton Two Stage Jack SAFETY INFORMATION (continued) SAFETY GUIDELINES CAUTION! Do not place hands on top of jack near ram locknuts while lowering jack. Pinch points exist between top of jack and threads on ram. Never put hands between the aircraft and the jack pad; as after aircraft has been lowered, struts may have hung up.
-
Page 6: Installation
Model: 02A7874C0110 20 Ton Two Stage Jack PACKAGING AND STORAGE (continued) STORAGE ENVIRONMENT Store jacks between -20C and +50C/-4 F and 122 F. Always store jack with ram all the way down. Suitable for outdoor storage by using a full coverage waterproof tarp or canvas. -
Page 7: Numerical Values
Model: 02A7874C0110 20 Ton Two Stage Jack OPERATION OPERATING PARAMETERS The user shall work in accordance with the Operator Manual It is not allowed to work under the raised load until it is secured by suitable means, i.e. Ram Locknut ... - Page 8 Model: 02A7874C0110 20 Ton Two Stage Jack OPERATION (continued) OPERATING INSTRUCTIONS The user should be familiar with the following statements prior to using the jack(s): CAUTION! Never put hands between the aircraft and the jack pad; as after aircraft has been lowered, struts may have hung up.
-
Page 9: Maintenance Schedule
Model: 02A7874C0110 20 Ton Two Stage Jack OPERATING INSTRUCTIONS (continued) 7.4.3 Jack Instructions To Raise Aircraft: Place jack on a hard, level surface. Hydraulic ram must be completely retracted before operating the jack. Release caster levers and maneuver jack into jacking position. -
Page 10: Troubleshooting
Model: 02A7874C0110 20 Ton Two Stage Jack MAINTENANCE SCHEDULE (continued) 9.2.1 Storage/Low Usage If jack is unused for 90 days, raise ram to full hydraulic extension, spray ram with DoALL RPM, LPS or equivalent water repellant, BUNA N compatible lubricant. - Page 11 GUARANTEES/LIMITATION OF LIABILITY Tronair products are warranted to be free of manufacturing or material defects for a period of one year after shipment to the original customer. This is solely limited to the repair or replacement of defective components. This warranty does not cover the...
- Page 12 Model: 02A7874C0110 20 Ton Two Stage Jack Parts List When ordering Replacement Parts/Kits, please specify Model, Color and Serial Number of your Unit. Item Part Number Description K-3333 Assembly, Blowgun H-1009-01 Assembly, Handle Z-6154 Air Pump HC-2338 Gauge, Level H-2888...
- Page 13 Model: 02A7874C0110 20 Ton Two Stage Jack Parts List When ordering Replacement Parts/Kits, please specify Model, Color and Serial Number of your Unit. Item Part Number Description G-1202-1055 Stopnut, ¼ - 28 Elastic G-1250-1050N Flatwasher, ¼ Narrow J-3415-01 Bracket, Air Pump Mounting Hose 3/8 Push-On 24”...
- Page 14 Model: 02A7874C0110 20 Ton Two Stage Jack Parts List When ordering Replacement Parts/Kits, please specify Model, Color and Serial Number of your Unit. Item Part Number Description TR-1971-00 Ram, First Stage R-2281 Ram, Second Stage TR-1970-01 Cylinder, Machined R-2284-01 Cap, Top...
- Page 15 Model: 02A7874C0110 20 Ton Two Stage Jack Parts List When ordering Replacement Parts/Kits, please specify Model, Color and Serial Number of your Unit. Item Part Number Description HC-2023-343 Backup, O-Ring, 2 Stage Ram G-1395-57 Ring, External Retaining G-1397-525 Ring, External Retaining...
- Page 17 APPENDIX I Hydraulic Schematic...
- Page 19 Hydraulic Schematic...
- Page 21 APPENDIX II Haskel Air Pump Manufacturer Data...
- Page 49 APPENDIX III HC-1961 Hand Pump Parts List...
- Page 51 Model: HC-1961 3250 psi Hand Pump Parts List With Illustrations 05/2005 – Rev. OR Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
-
Page 53: Installation Instructions
3250 psi Hand Pump This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., its suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. - Page 54 HC-1961 3250 psi Hand Pump Parts List When ordering Replacement Parts/Kits, please specify Model and Serial Number of your Unit. Item Part Number Description K-3441 Kit, Seal Replacement; consists of: Wiper, Rod Ring, Backup O-ring, Piston O-ring, Valve Body O-ring, Tube Seal O-ring, Relief Screw O-ring, Release Screw O-ring, Outlet Check...
- Page 55 APPENDIX IV Declaration of Conformity...
-
Page 57: Declaration Of Conformity
DECLARATION of CONFORMITY The design, development and manufacture is in accordance with European Community guidelines Tripod Jack 02A7874C0110 Relevant provisions complied with by the machinery: 2006/42/EC Relevant standards complied with by the machinery: EN ISO 12100-1 Identification of person empowered to sign on behalf of the Manufacturer: Quality Assurance Representative Tronair, Inc. - Page 59 APPENDIX I Safety Data Sheet MIL-PRF-5606 Hydraulic Fluid...
- Page 73 APPENDIX VI Maintenance Schedule...
