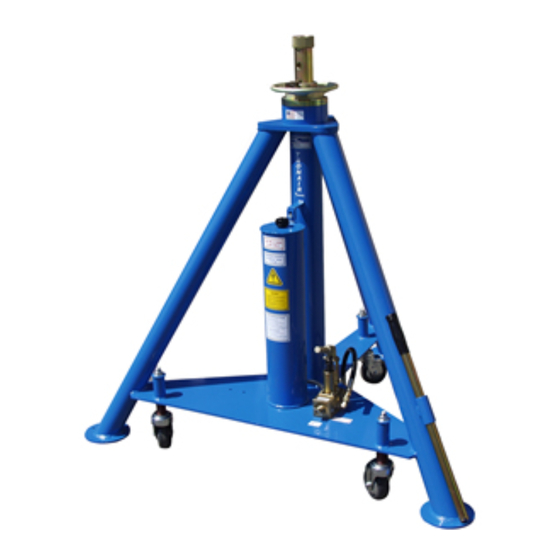

- Page 1 Operation & Service Manual Model: 02A1248-0112 12 Ton Single Stage Jack with Air Pump 11/2004 - Rev. 04 Includes Illustrated Parts Lists Tronair, Inc. 1740 Eber Rd Phone: (419) 866-6301 Holland, OH 43528-9794 www.tronair.com 800-426-6301 Email: sales@tronair.com Fax: (419) 867-0634...
- Page 2 REVISION DATE TEXT AFFECTED 01/2004 Major Revision 11/2004 5.1 Added warning and illustrations...
-
Page 3: Table Of Contents
Model: 02A1248-0112 12 Ton Single Stage Jack with Air Pump TABLE OF CONTENTS PAGE DESCRIPTION ................................1 USAGE ..................................1 SPECIFICATIONS ................................. 1 ASSEMBLY INSTRUCTIONS ............................1 GENERAL INSTRUCTION ............................1 PRE-USE CHECKS ..............................1 OPERATING INSTRUCTIONS ............................2 JACK INSTRUCTIONS .............................. 2 MAINTENANCE ................................ -
Page 4: Description
12 Ton Single Stage Jack with Air Pump This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., it suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. -
Page 5: Operating Instructions
• Load test jacks annually. • Only order replacement parts from Tronair. • Failure to comply could result in premature failure below certified weight and could cause serious injury including death. 5.1 Jack instructions continued on following page. - Page 6 Model: 02A1248-0112 12 Ton Single Stage Jack with Air Pump JACK INSTRUCTIONS (continued) Correct Pin Placement Incorrect Pin Placements Washer In Ball Lock In Washer On Top Of Locking Pin Not In Ram Protection Ring Ram Protection Ring Ram Protection Ring...
-
Page 7: Maintenance
Model: 02A1248-0112 12 Ton Single Stage Jack with Air Pump JACK INSTRUCTIONS (continued) Ram Protection Ring Damage Deformation Deformation Acceptable Condition Unacceptable Condition Close pump release valve by turning clockwise. NOTE: Turning the pump release valve counter-clockwise lowers the jack. Turning the pump release valve clockwise stops the jack’s descent, and allows it to be raised. -
Page 8: Servicing Jack
Model: 02A1248-0112 12 Ton Single Stage Jack with Air Pump MAINTENANCE (continued) SERVICING JACK To Disassemble Jack: Remove mounting plate (Item 40) by unscrewing five (5) socket head cap screws (Item 39). Raise ram assembly (Item 42) to the point where it can be lifted from the jack cylinder. -
Page 9: Provision Of Spares
GUARANTEES/LIMITATION OF LIABILITY Tronair products are warranted to be free of manufacturing or material defects for a period of one year after shipment to the original customer. This is solely limited to the repair or replacement of defective components. This warranty does not cover the... -
Page 10: Parts List
Model: 02A1248-0112 12 Ton Single Stage Jack with Air Pump Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description H-1009-01 Handle, Hydraulic Pump H-1252 Spring K-2800 Kit, Caster Replacement; consists of:... - Page 11 Model: 02A1248-0112 12 Ton Single Stage Jack with Air Pump Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description TF-1043-06*18.0 Assembly, Hose N-2016-05-S Tee, Swivel Nut Run N-2004-15-S Elbow, Extra Long 90° Male K-1685 Kit, Repair Fluid Seal (Ref.
- Page 12 Model: 02A1248-0112 12 Ton Single Stage Jack with Air Pump Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. 11/2004 | Rev. 04 Page | 9...
- Page 13 Model: 02A1248-0112 12 Ton Single Stage Jack with Air Pump Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description K-2787 Kit, Reservoir Replacement; consists of: N-2412-04 Connector, Barbed Hose...
- Page 14 Model: 02A1248-0112 12 Ton Single Stage Jack with Air Pump Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description HJ-553 Ring, Ram Protection H-2331 Stopnut, Ram G-1151-107206 Screw, Hex Socket Head Cap, 3/8-16 x 3/4" long...
- Page 15 APPENDIX I HC-1751 3,250 psi Hand Pump Parts List...
- Page 17 3250 Hand Pump Parts List With Illustrations 08/2001 – Rev. OR When ordering replacement parts/kits, please specify model, serial number and color of your unit. Tronair, Inc. 1740 Eber Rd Phone: (419) 866-6301 Holland, OH 43528-9794 www.tronair.com 800-426-6301 Email: sales@tronair.com...
- Page 19 Model: HC-1751 3250 Hand Pump Parts List This pump is compatible with MIL-PRF-5606/MIL-H-83282 Hydraulic Fluids only. Reference Parts List Illustration on following page. Item Part Number Description 5M1-000-001 Body, Pump 506-000 Half, Flange 18-000 Screw, Socket Head Cap Not Shown H-1009-01 Handle K-1001...
-
Page 20: Parts List Illustration
Model: HC-1751 3250 Hand Pump Parts List Illustration This pump is compatible with MIL-PRF-5606/MIL-H-83282 Hydraulic Fluids only. WARNING Item 2 is a preset relief valve. Do Not disassemble this valve. Replacement parts are available as a preset relief valve assembly. 08/2001 | Rev. -
Page 21: Appendix Ii
APPENDIX II Haskel Air Pump Technical Specifications & Performance Data Drawing 28550... -
Page 49: Appendix Iii
APPENDIX III MSDS Hydraulic Fluid (MIL-PRF-5606)
