BENDIX EC-16 ANTILOCK CONTROLLER Manual page 30

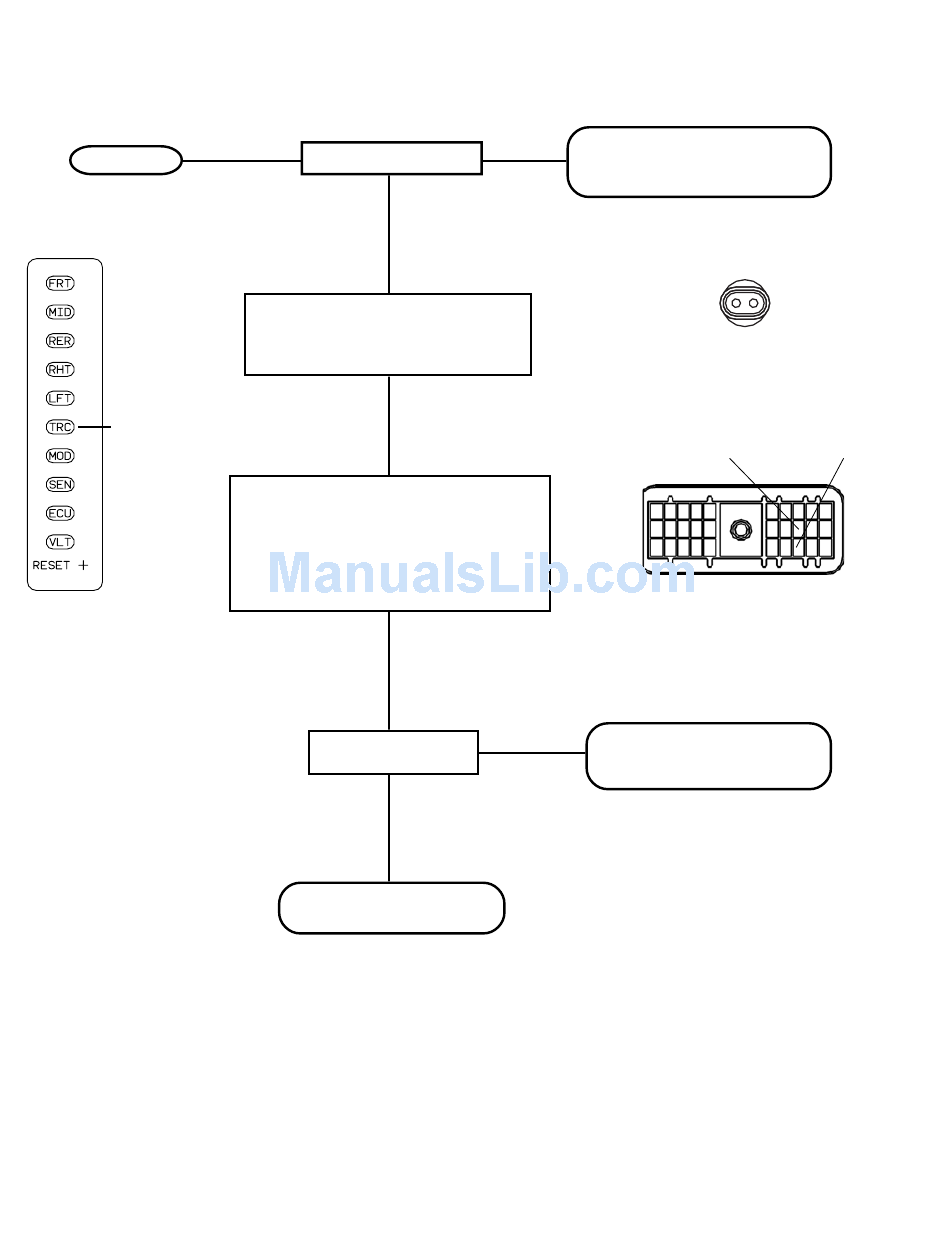

SECTION XII- TESTING ENGINE CONTROL MODULE WIRE HARNESS
START HERE
Illuminated?
30
TRC ONLY RED LED ON?
YES
TURN IGNITION OFF. DISCONNECT 30 PIN
CONNECTOR FROM EC-16 ™
& 2 PIN CONNECTOR AT ENGINE
ELECTRONIC CONTROL MODULE.
CHECK WIRE CONTINUITY BETWEEN 30 PIN
CONNECTOR AT EC-16 ™ CONTROLLER AND 2
PIN CONNECTOR AT ENGINE CONTROL
MODULE. PINS B2 & B3 ON 30 PIN
CONNECTOR CORRESPOND TO THE WIRES
LEADING TO 2 PIN CONNECTOR AT ENGINE
CONTROL MODULE.
WIRE CONTINUITY OK?
NO
REPAIR OR REPLACE
VEHICLE WIRE HARNESS
NO
PASS MAGNET OVER EC-16
CONTROLLER RESET & REPEAT
"INITIAL START-UP PROCEDURE"
CONTROLLER
YES
TEST ENGINE CONTROL MODULE
USING ENGINE MANUFACTURER'S
™
CONNECTOR AT ENGINE
ELECTRONIC CONTROL
MODULE.
B2
K J H G F E D C B A
30 PIN CONNECTOR
PROCEDURE.
B3
1
2
3
