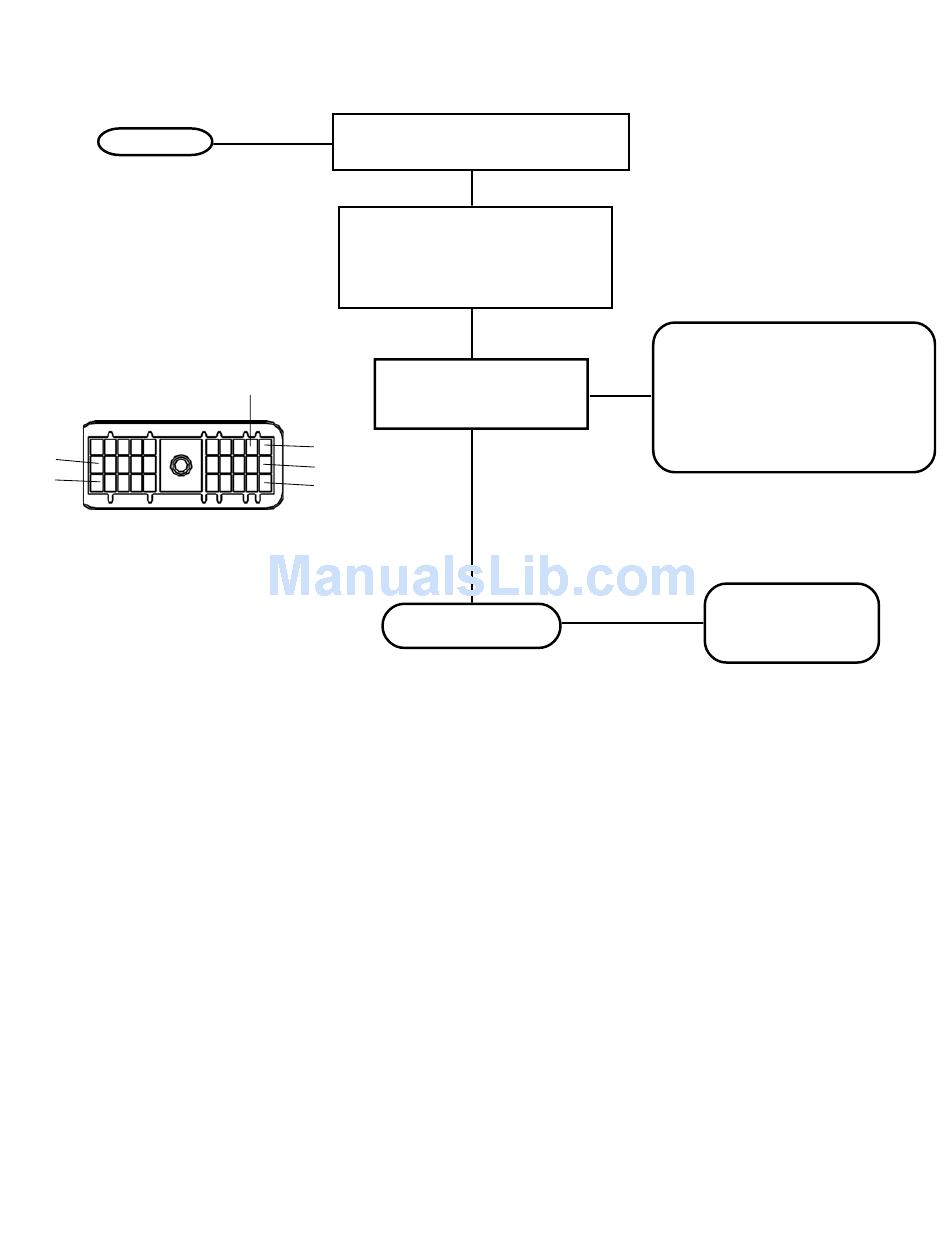

SECTION V - TESTING FOR POWER TO THE EC-16
START HERE
K2
K3
30 PIN CONNECTOR
TURN IGNITION OFF, DISCONNECT 30 PIN
CONNECTOR FROM EC-16
TURN IGNITION ON AND MEASURE
VOLTAGE BETWEEN BATTERY PINS B1,
K2, K3 AND GROUND PINS A1, A2, A3
ON WIRE HARNESS CONNECTOR
VOLTAGE SAME AS BATTERY
B1
VOLTAGE. MUST BE
BETWEEN 11 AND 17 VOLTS.
A1
A2
A3
REPLACE EC-16
CONTROLLER
™
™
CONTROLLER
NO
YES
™
CONTROLLER
RECONNECT CONNECTOR TO EC-16
CONTROLLER. CHECK THE VEHICLE
WIRING FOR CONTINUITY. REFER TO
THE VEHICLE SERVICE MANUAL AND
CHECK THE BATTERY VOLTAGE.
REPAIR OR REPLACE WIRING AS
NECESSARY AND RETEST
REPEAT THE
"INITIAL START-UP
PROCEDURE"
™
