Installing the RAID Controller

To install the RAID Controller, follow these steps:
1. Power off the computer, all drives, enclosures, and system components. Remove
the power cord from the computer.
2. Remove the chassis cover and access the PCI Express add-in card slots. For
instructions, see your server chassis documentation.
3. Align the controller's connector with a x4 PCI Express* slot on the server board.
4. Press down gently but firmly to ensure that the card is properly seated in the slot, as
shown in
6
Figure 1. Secure the bracket to the computer chassis.
Bracket Screw
Main Board

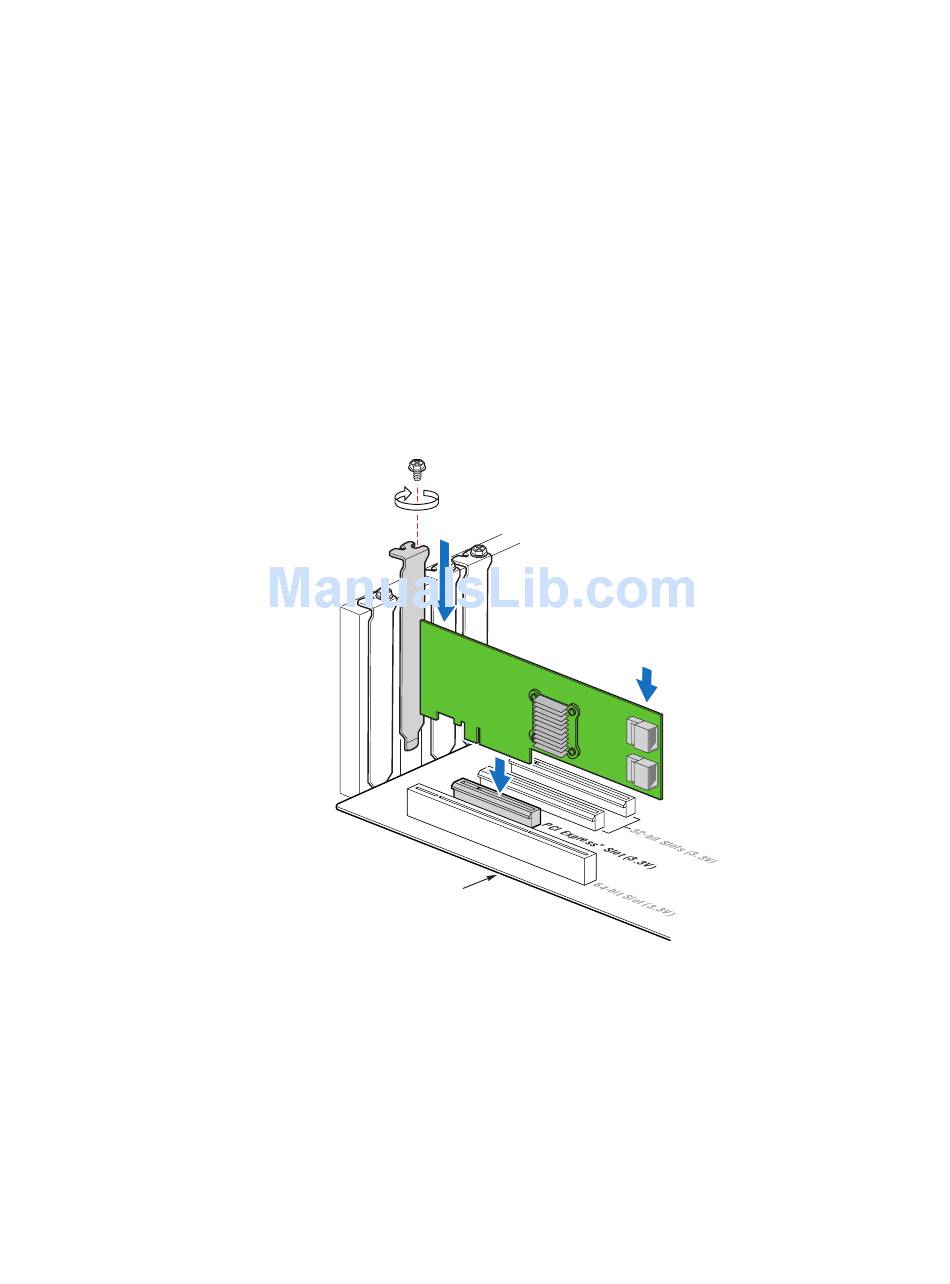

Figure 1. Inserting the Intel
P r e
s s
H e r
e
Edge of
®
RAID Controller SASMF8I into a
PCI Express* Slot
Intel® RAID Controller SASMF8I Hardware User's Guide
