User Guide for Intel® Compute Stick
STK2m3W64CC

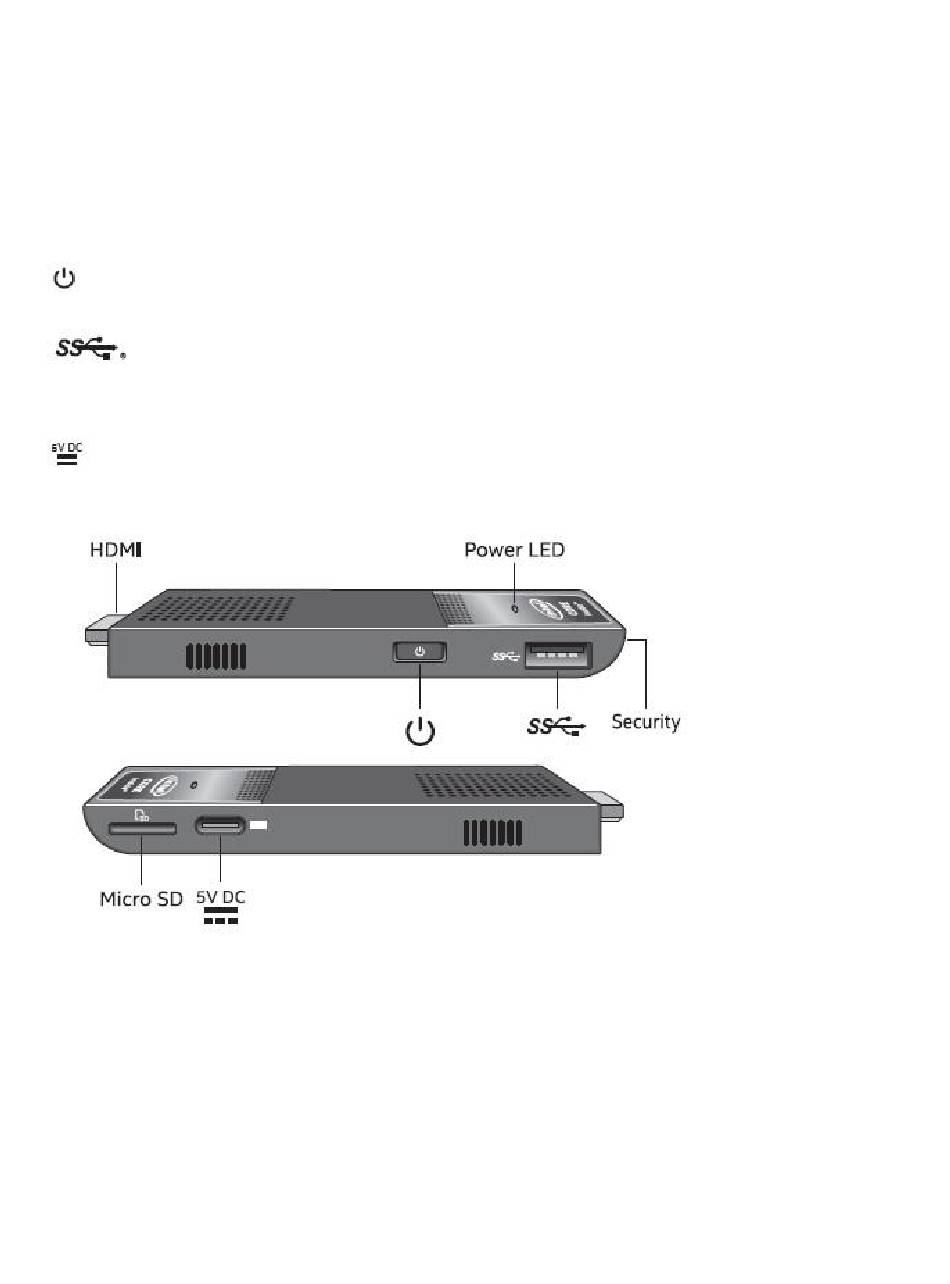

Product Description
Symbol
Description
HDMI*
HDMI connector
Power button
Power LED Power LED—blue
USB 3.0 port
Security
Security cable opening
MicroSD* MicroSD memory card slot
Power connector
Choose the Power Plug
Select the power plug attachment for your region. All plug attachments may not be included in
the box.
Country
Plug Attachment
Advertisement
Related Manuals for Intel Compute Stick STK2m3W64CC
Summary of Contents for Intel Compute Stick STK2m3W64CC
- Page 1 User Guide for Intel® Compute Stick STK2m3W64CC Product Description Symbol Description HDMI* HDMI connector Power button Power LED Power LED—blue USB 3.0 port Security Security cable opening MicroSD* MicroSD memory card slot Power connector Choose the Power Plug Select the power plug attachment for your region. All plug attachments may not be included in the box.
- Page 2 United States, Japan United Kingdom Argentina Australia China European Union India...
- Page 3 South Korea Slide the plug attachment onto the power adapter. The included power adapter and cable must be used to power the Intel® Compute Stick. Use of any other power adapter, power source, or cable isn't supported. Connect a Keyboard and Mouse...
- Page 4 USB wired keyboard (A) and mouse (B), connected to the ports on the power adapter. USB wireless keyboard and mouse, using a USB dongle.
- Page 5 Intel Product Compatibility Tool. Connect Directly to a Display Plug the Intel® Compute Stick directly into a standard HDMI port on a television or monitor. The Intel Compute Stick will extend about 4.5 inches (113 mm) out from the HDMI port.
- Page 6 HDMI port of the television or monitor. 1. Plug the Intel Compute Stick into the female end of the extender cable (A). 2. Plug the male end of the extender cable into the HDMI port on the television or monitor...
- Page 7 Find compatible televisions and monitors at the Intel Product Compatibility Tool. Powering the Device Connect the power cable (A) to the power adapter. Plug the power adapter into an AC power source (B). Connect the power cable (C) to the Intel® Compute Stick as shown.
- Page 8 The Intel Compute Stick is designed to use up to 10W of power. USB ports on televisions or monitors do not supply enough power for the Intel Compute Stick. If you try to use a USB port on the television to power the Intel Compute Stick, here are the likely symptoms: Note ...
- Page 9 Find compatible microSD cards at the Intel Product Compatibility Tool. Secure the Intel® Compute Stick Install a security cable loop in the security opening on the edge of the Intel® Compute Stick. The security opening is 3 mm × 3 mm.
- Page 10 Security cable loop isn't included. To build one, insert a length of quality wire rope (< 3 Note mm) through the security opening. Then, crimp the ends together with a cable sleeve. First Boot-UpThe first time you start the Intel® Compute Stick STK1AW32SC, Windows® 10 guides you through the following steps: 1. Select your language.
- Page 11 Operating System Recovery There is a Windows* recovery partition on the Intel® Compute Stick. You can use this to refresh, reset, or restore Windows. Here is what each of these actions do: If your PC isn't performing as well as it once did, and you don't know why, you can refresh your PC without deleting any of your personal files or changing your settings.
- Page 12 The latest BIOS updates are available on Intel® Download Center. Refer to BIOS Update Instructions for information on updating the Intel® Compute Stick's BIOS. Drivers Graphics, wireless, and Bluetooth® drivers are available on Download Center. HDMI audio drivers are included in the graphics driver package.
