6-8___________________________________________________________Data Details Tables
Note: To download/upload the X-10 device settings, you need to select this table and press
the download/upload table button. For further information, see Chapter 8:Data.
Note: When the X-10 device settings table is uploaded, the PowerMax Remote Programmer
will also load the PGM table. However, this does not occur the other way around.

6.16 RF Diagnostics

This screen displays the results of the diagnostic test, performed on-site. The diagnostic test
measures the reception levels of PowerMax sensors installed throughout the protected area.
The table includes the zone names, the previously uploaded RF level and the RF level
received in the last test performed.
The RF Level columns display the reception levels: Strong; Good; Poor; or Not OK.
When connecting to a particular PowerMax for the first time, both of the RF level columns
will display NOT OK in all the cells, as the site file does not include any information about
tests previously performed by the PowerMax control panel.
When uploading data from the PowerMax after a walk test has been carried out, the Last
RF Level column will display the results of this test and the Previously Uploaded RF Level
column will continue to display NOT OK.
When uploading test results from the PowerMax control panel after results have already
been uploaded, the previously uploaded results will be displayed in the Previously
Uploaded RF Level column, and the uploaded results of the test last performed will be
displayed in the Last RF Level column.

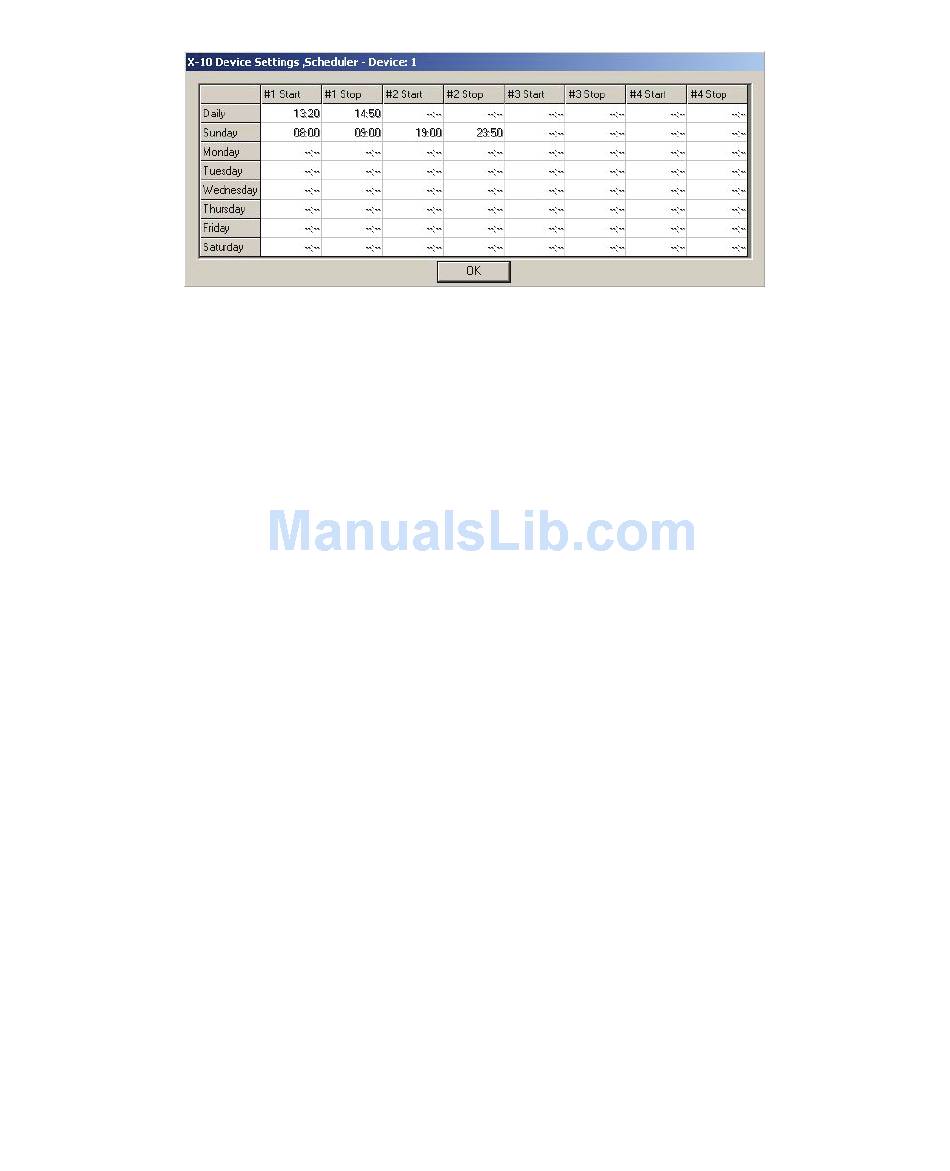

Figure 6-1: Scheduler
