4-6______________________________________________________________________ Sites
4.
Enter the Phone Number and the Download Code located in the control
panel (for further details, see PowerMax User Guide).
The Login button will become enabled.
5.
Click Login. The Modem Dial Up... window will appear and attempt connecting.
Working Offline
Work Offline only if you know the PowerMax model you want to connect to.
1.
Select the Work Offline tab. The following screen will be displayed:
2.
Select the relevant PowerMax model.
Note: The Work Offline dialog box first lists all existing PowerMax models.
Select each PowerMax model you do not require and click the Remove button to
delete the PowerMax model from the list. To reset the list, click the Load button.
3.
Click OK.

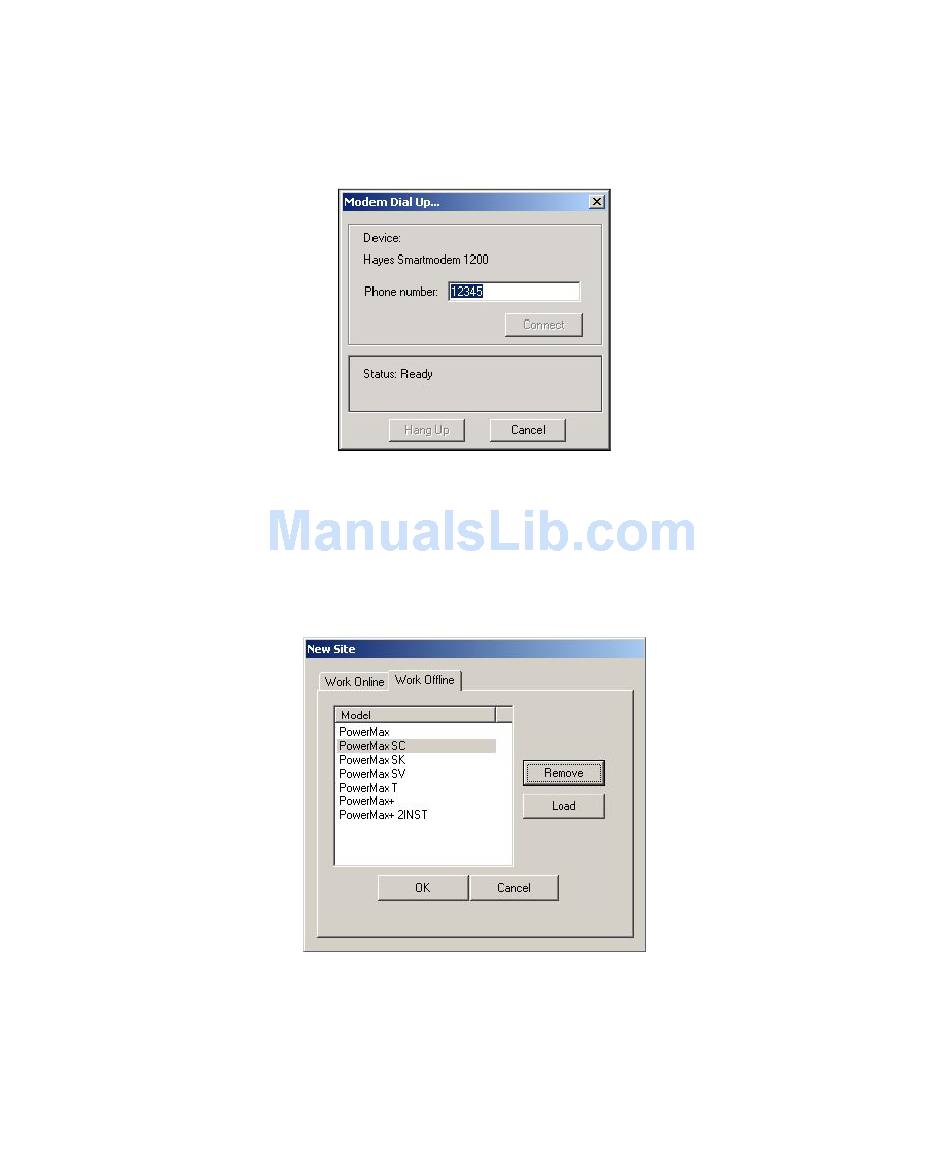

Figure 4-7: Modem Dial Up...
Figure 4-8: New Site Window - Work Offline
