- Page 1 Powerware Series ® Eaton Internal Battery Instructions For use with the Eaton 9155 or Eaton 9355 (10/15 kVA) UPS...
- Page 2 (WEEE) in the trash. For proper disposal, contact your local recycling/reuse or hazardous waste center. Eaton and Powerware are registered trademarks of Eaton or its subsidiaries and affiliates. All other trademarks are property of their respective companies. ECopyright 2006–2015 Eaton, Raleigh, NC, USA. All rights reserved. No part of this document may be reproduced...
-
Page 3: Table Of Contents
..............Internal Battery Instructions for the Eaton 9155 or 9355 (10/15 kVA) UPS... - Page 4 TABLE OF CONTENTS Internal Battery Instructions for the Eaton 9155 or 9355 (10/15 kVA) UPS 164201628 Rev B...
-
Page 5: Internal Battery Installation
Proper disposal of batteries is required. Refer to your local codes for disposal requirements. Never dispose of batteries in a fire. Batteries may explode when exposed to flame. Internal Battery Instructions for the Eaton 9155 or 9355 (10/15 kVA) UPS 164201628 Rev B... - Page 6 L'onduleur est conçue pour fonctionner seulement avec les batteries installées. Lorsque les batteries ne sont pas installées, il existe un risque de chute pouvant engendrer des dommages corporels. Internal Battery Instructions for the Eaton 9155 or 9355 (10/15 kVA) UPS 164201628 Rev B...
- Page 7 Ne pas produire de flamme ou d’étincelle dans la zone de l’accumulateur. Dissiper l'électricité statique de votre corps en touchant une surface reliée à la terre avant de toucher les accumulateurs. Internal Battery Instructions for the Eaton 9155 or 9355 (10/15 kVA) UPS 164201628 Rev B...
- Page 8 Es necesario desechar las baterías de un modo adecuado. Consulte las normas locales para conocer los requisitos pertinentes. Nunca deseche las baterías en el fuego. Las baterías pueden explotar si se las expone a la llama. Internal Battery Instructions for the Eaton 9155 or 9355 (10/15 kVA) UPS 164201628 Rev B...
-
Page 9: Battery Type

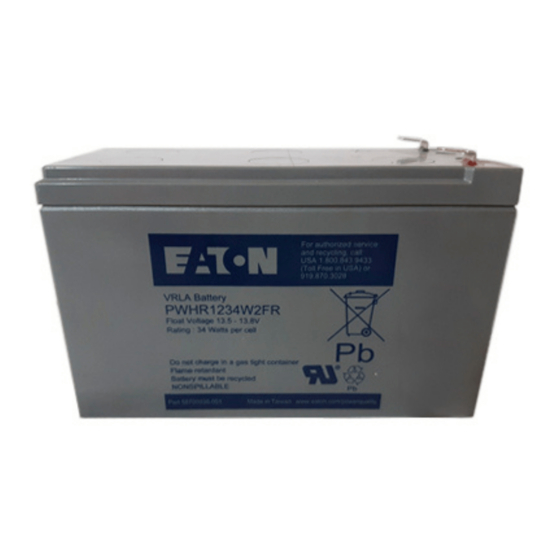

NP7-12 and NP7-12FR or PX12090 and or PWHR1234W2FR NPX-35 and NPX-35FR PE12V7.2 Battery Quantity 16 per string 16 per string 16 per string 16 per string Internal Battery Instructions for the Eaton 9155 or 9355 (10/15 kVA) UPS 164201628 Rev B... -
Page 10: Installing The Internal Batteries
2. Remove the 10 M4 screws from the battery cover panel and remove the panel on each battery cabinet (see Figure 2). Figure 2. Removing the Battery Cover Panel Internal Battery Instructions for the Eaton 9155 or 9355 (10/15 kVA) UPS 164201628 Rev B... - Page 11 4. Insert the batteries into the battery trays. 5. Connect seven jumper wires between the batteries in each tray (see Figure 3). ‒ Jumper Wires Figure 3. Connecting the Battery Jumper Wires Internal Battery Instructions for the Eaton 9155 or 9355 (10/15 kVA) UPS 164201628 Rev B...
- Page 12 ‒ Back End of Tray Tray Slots Left Tray Right Tray ‒ Front End of Tray Figure 4. Sliding the Battery Trays into the Cabinet Internal Battery Instructions for the Eaton 9155 or 9355 (10/15 kVA) UPS 164201628 Rev B...
- Page 13 7. Verify that the UPS battery circuit breaker is in the OFF position (see Figure 5). Battery Circuit Breaker Figure 5. UPS Rear View (Eaton 9155 UPS Shown) Internal Battery Instructions for the Eaton 9155 or 9355 (10/15 kVA) UPS 164201628 Rev B...
- Page 14 Repeat until all connections are made. Figure 6. Connecting the Battery Circuit Breaker Wires 9. Reinstall the battery cover panel(s). 10. Replace the front cover(s). Internal Battery Instructions for the Eaton 9155 or 9355 (10/15 kVA) UPS 164201628 Rev B...
-
Page 15: Service And Support
Please have the following information ready when you call for service: Model number Serial number Firmware version number Date of failure or problem Symptoms of failure or problem Customer return address and contact information Internal Battery Instructions for the Eaton 9155 or 9355 (10/15 kVA) UPS 164201628 Rev B... - Page 16 INTERNAL BATTERY INSTALLATION Internal Battery Instructions for the Eaton 9155 or 9355 (10/15 kVA) UPS 164201628 Rev B...
