IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*DRILLING MAY BE REQUIRED
*TRIMMING NOT REQUIRED

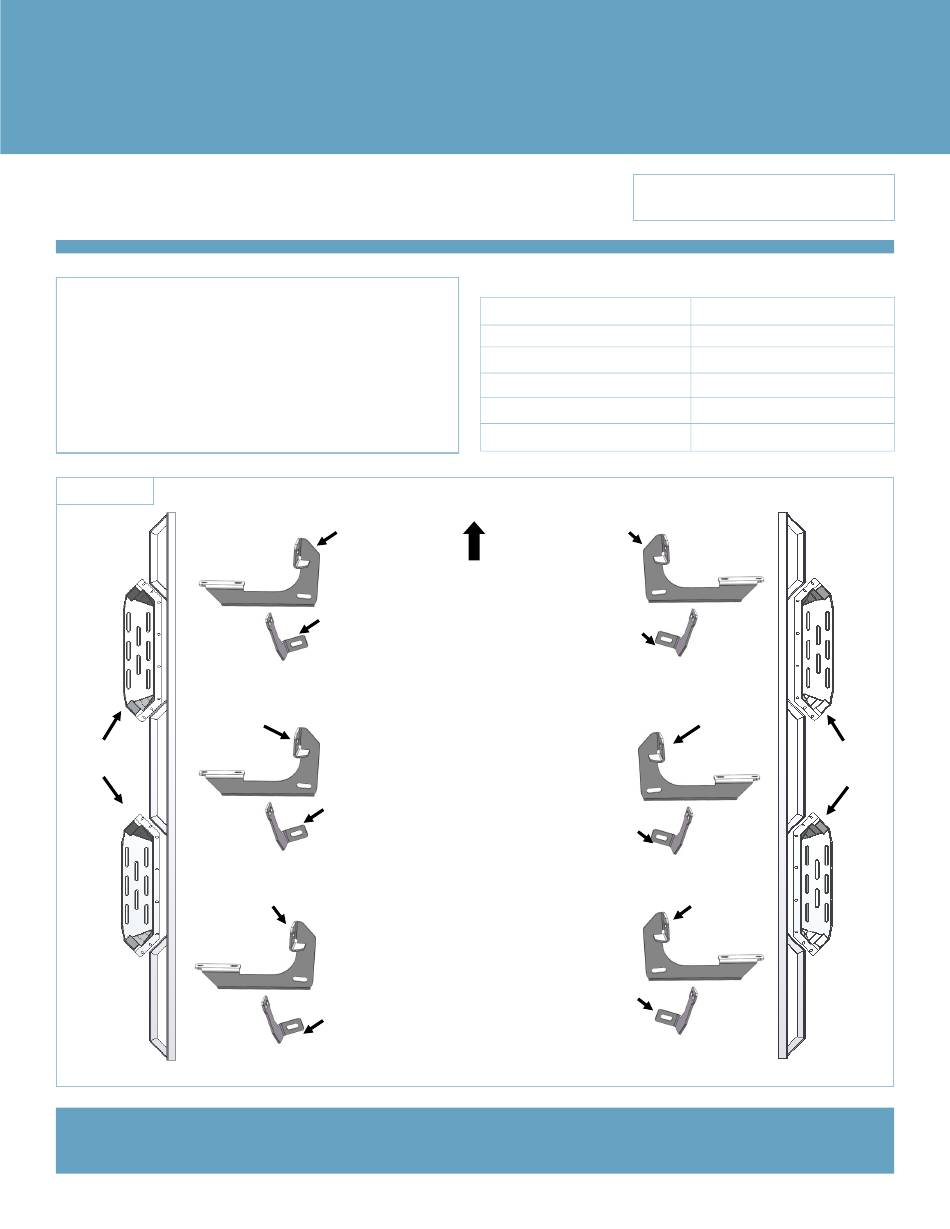

PART LIST
Driver Center Mounting
Bracket (DFM/DCM/DRM)
Step Pad
Driver Rear Mounting
Bracket (DFM/DCM/DRM)
Driver Side Step Bar
iArmor
Driver Front Mounting
Bracket (DFM/DCM/DRM)
Driver Front Support
Bracket (DFS/DCS/DRS)
Driver Center Support
Bracket (DFS/DCS/DRS)
Driver Rear Support
Bracket (DFS/DCS/DRS)
Customer Support: info@iarmorauto.com
1
Fastener Size
6mm
8mm
10mm
12mm
14mm
Front
Passenger Front Mounting
Bracket (PFM/PCM/PRM)
Passenger Front Support
Bracket (PFS/PCS/PRS)
Passenger Center Mounting
Bracket (PFM/PCM/PRM)
Passenger Center Support
Bracket (PFS/PCS/PRS)
Passenger Rear Mounting
Bracket (PFM/PCM/PRM)
Passenger Rear Support
Bracket (PFS/PCS/PRS)
®
PART#: IA-N179&N208
Tightening Torque (ft-lbs)
6-7
16-18
31-32
56-58
92-94
Passenger Side Step Bar
Rev. 20200801
Step Pad
Advertisement
Related Manuals for iArmor IARMOR EDGE IA-N179&N208
Summary of Contents for iArmor IARMOR EDGE IA-N179&N208
- Page 1 ® IARMOR EDGE™ PART#: IA-N179&N208 BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE 16-18 STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- ED. THANK YOU FOR CHOOSING OUR PRODUCT! 10mm...
- Page 2 ® 1.25-30 M8X1.25 Nylon M8 Lock Washer Plastic Washer M8 Flat Washer Hex Bolt Lock Nut M8 Bolt/Nut Plate M6X1-25 Hex M6X1 Nylon M6 Large Flat M6X1-20 T- M6X1 -20 Flat Bolt Lock Nut Washer Bolt Sunk Head Bolt The instruction here is for your reference only.
- Page 3 ® M8 Bolt/Nut Plate STEP 3 (1) M8 Flat Washer (1) M8 Lock Washer (1) M8X1.25-30 Hex Bolt Determine the correct procedure to attach (1) Driver Front Mounting Bracket (DFM/DCM/DRM) for your model/year: Models without factory threaded inserts in body panel: Front a.
- Page 4 ® STEP 4 STEP 5 Attach the Driver Front Support Bracket (DFS/DCS/DRS) to Move to the Driver Side Center Mounting location, (Fig 8). the Driver Front Mounting Bracket (DFM/DCM/DRM) with (1) Repeat Step 3 to install the Driver Center Mounting Bracket.
- Page 5 ® STEP 8 STEP 7 Once all (3) Brackets have been installed, attach the Assem- Properly level and adjust the Step Bar and fully tighten all bled Driver Side Step Bar to the Mounting Brackets using (6) hardware. M6X1-20 T-Bolts, (6) M6 Flat Washers and (6) M6X1 Nylon Models requiring drilling for driver side Support Brackets: Lock Nuts (Fig 10).
