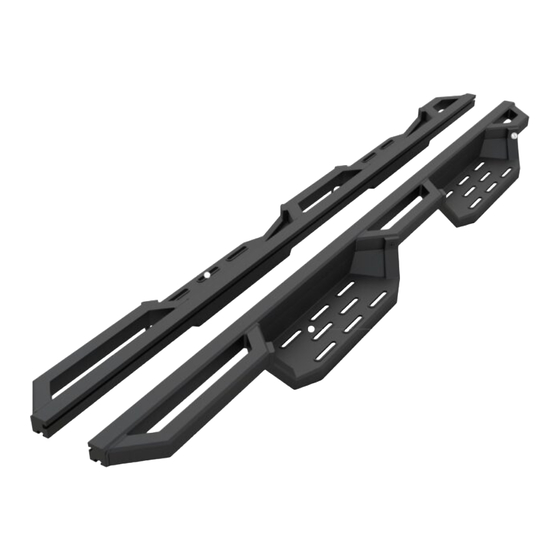

IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS
ARE PRESENT. READ INSTRUCTIONS CAREFULLY
BEFORE STARTING INSTALLATION. ASSISTANCE IS
RECOMMENDED. THANK YOU FOR CHOOSING OUR
PRODUCT!
*DRILLING NOT REQUIRED
*TRIMMING NOT REQUIRED

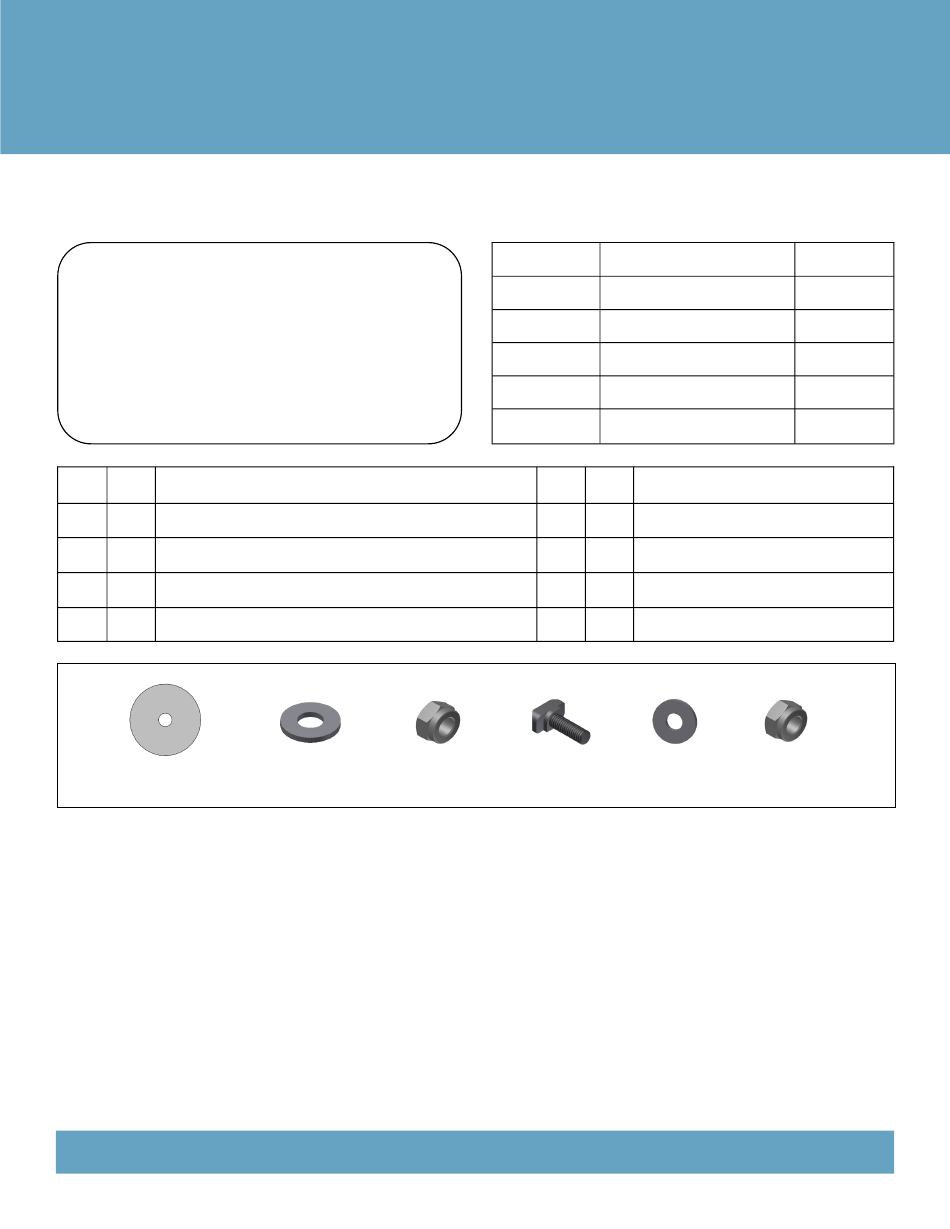

Item
QTY
1#
3
Driver Front / Passenger Center & Rear Mounting Brackets
2#
3
Passenger Front / Driver Center & Rear Mounting Brackets
3#
18
M8 Plastic Washers
4#
18
M8 Flat Washers
3 #
iArmor
Description
4 #
5 #
Customer Support: info@iarmorauto.com
®
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Item
QTY
5#
18
M8X1.25 Nylon Lock Nuts
6#
44
M6X1-20mm T-Bolts
7#
44
M6 Large Flat Washers
8#
44
M6X1 Nylon Lock Nuts
6 #
1
PART#: IA-N175
Required
√
6-7
16-18
√
31-32
X
56-58
X
92-94
X
Description
7 #
8 #
Rev. 20211001
Advertisement
Related Manuals for iArmor EDGE IA-N175
Summary of Contents for iArmor EDGE IA-N175
- Page 1 ® IARMOR EDGE™ PART#: IA-N175 Fastener Size Tightening Torque (ft-lbs) Required BEFORE INSTALLATION REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS √ ARE PRESENT. READ INSTRUCTIONS CAREFULLY 16-18 √ BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMENDED. THANK YOU FOR CHOOSING OUR...
- Page 2 ® Front Driver Passenger 11.6” 11.6” Step Pad Step Pad 13.6” 13.6” Customer Support: info@iarmorauto.com Rev. 20211001...
- Page 3 ® The instruction here is for your reference only. We strongly recommend the professional installer for best result. We are not responsible for any damage caused by the installation. STEP 1 Install the Step Pads onto the step bars with (32) M6x1-20mm T-Bolts, (32) M6 Flat Washers and (32) M6x1 Nylon Lock Nuts.
- Page 4 ® STEP 5 STEP 6 Once all (3) Brackets have been installed, attach the Assem- Repeat Step 4 to install the Driver center Mounting Bracket and bled Driver Side Step Bar to the Mounting Brackets with (6) Driver Rear Mounting Bracket, (Fig 4).
