IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*BODY FRAME MOUNT
*DRILLING/TRIMMING NOT REQUIRED

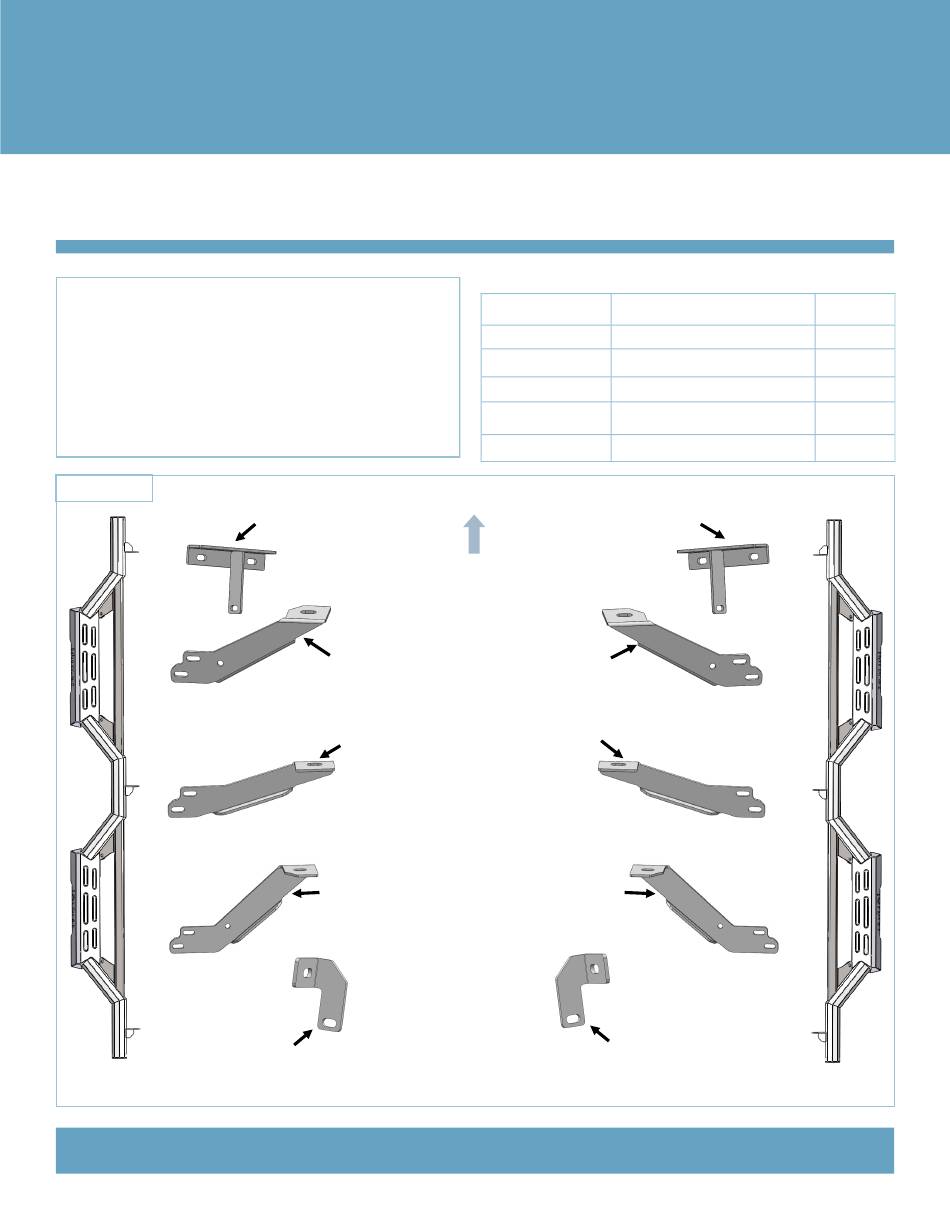

PART LIST
Driver Front Support Bracket (DFS)
Driver Rear Support Bracket (DRS)
Driver Side
iArmor
Front
Driver Front Mounting
Bracket (DFM)
Driver Center Mounting
Bracket (DCM)
Driver Rear Mounting
Bracket (DRM)
Customer Support: info@iarmorauto.com
®
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Passenger Front Support Bracket (PFS)
Passenger Front
Mounting Bracket
(PFM)
Passenger Center
Mounting Bracket
(PCM)
Passenger Rear
Mounting Bracket
(PRM)
Passenger Rear Support Bracket (PRS)
1
PART#: IA-W002
Required
6-7
X
16-18
X
31-32
√
56-58
√
92-94
X
Passenger Side
Rev. 20220701
Advertisement
Related Manuals for iArmor EDGE IA-W002
Summary of Contents for iArmor EDGE IA-W002
- Page 1 ® IARMOR EDGE™ PART#: IA-W002 Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 16-18 ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 ® Hardware Package (For Brackets & Step Bars Installation) Item Description Item Description Spacer Plates M10X1.5-35 Hex Bolts M10X35 Bolt Plates M10 Flat Washers Plastic Washers M10 Lock Washers M10X1.5 Hex Nuts M12X1.75-120 Hex Bolts M10X1.5 Nylon Lock Nuts...
- Page 3 ® The instruction here is for your reference only. We strongly recommend the professional installer for best result. We are not responsible for any damage caused by the installation. M10 Bolt Plate with Plastic Washer STEP 1 Start installation from the passenger side front of the vehicle.
- Page 4 ® STEP 4 STEP 5 Move to Passenger side Center Mounting Location, (Fig 5). Remove the body mount bolt and washer. Insert (1) Spacer Attach the Passenger Front Support Bracket (PFS) to the in- Plate between Front Center Mounting Bracket and factory rub- stalled M10 Bolt Plates with (2) M10 Flat Washers, (2) M10 ber bushing.
- Page 5 ® STEP 6 Move to Passenger Side Rear Mounting Location, (Fig 7). Only (1) Oval hole on the rocker panel will be used. Repeat Steps 1- 4 to install Passenger Side Rear Mounting Brackets (PRM & PRS), (Fig 8-10). Don’t fully tighten hardware at this time.
- Page 6 ® STEP 7 STEP 8 Once all (3) Mounting Brackets have been installed, attach the Passenger Side Bar to the assembled Bar Brackets with (6) M10X1.5-25 Hex Bolts, (12) M10 Flat Washers and (6) Move to the other side of the vehicle. Repeat Steps 1-7 for the M10X1.5 Nylon Lock Nuts, (Fig 11).
