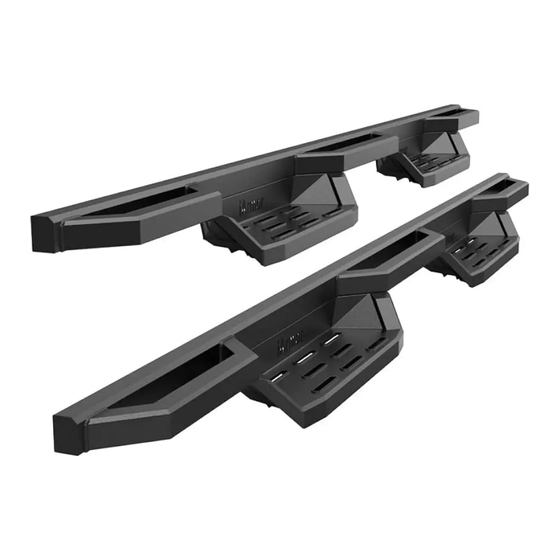

IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*DRILLING MAYBE REQUIRED
*TRIMMING NOT REQUIRED

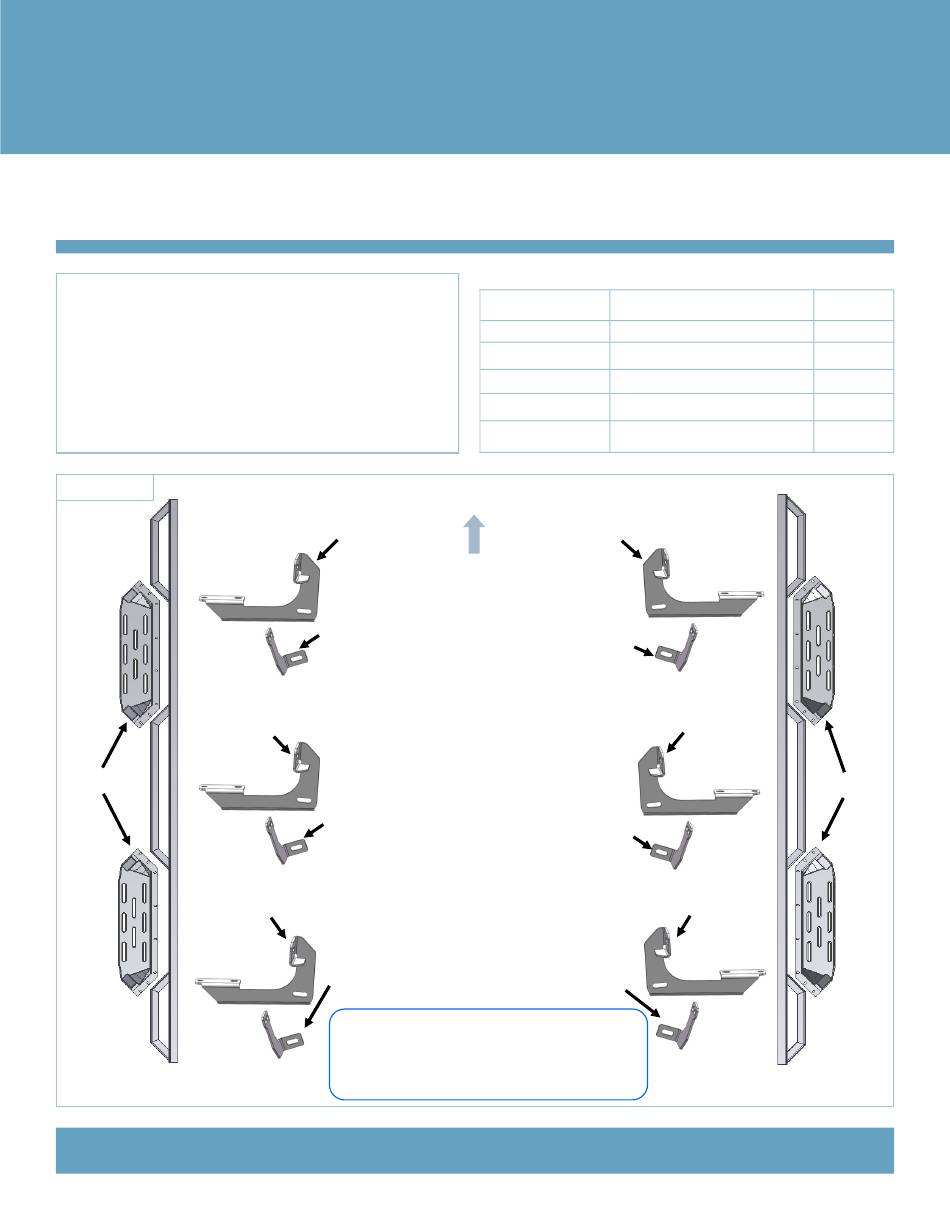

PART LIST
Driver Center Mounting
Bracket (DFM/DCM/DRM)
Step Pad
Driver Rear Mounting
Bracket (DFM/DCM/DRM)
Driver Side Step Bar
iArmor
Driver Front Mounting
Bracket (DFM/DCM/DRM)
Driver Front Support
Bracket (DFS/DCS/DRS)
Driver Center Support
Bracket (DFS/DCS/DRS)
Driver Rear Support
Bracket (DFS/DCS/DRS)
*All Driver Mounting Brackets are universal.
*All Driver Support Brackets are universal.
*All Passenger Mounting Brackets are universal.
*All Passenger Support Brackets are universal.
Customer Support: info@iarmorauto.com
PART#: IA-N179&N208&N209
Torque Value
Fastener Size
6mm
8mm
10mm
12mm
14mm
Front
Passenger Front Mounting
Bracket (PFM/PCM/PRM)
Passenger Front Support
Bracket (PFS/PCS/PRS)
Passenger Center Mounting
Bracket (PFM/PCM/PRM)
Passenger Center Support
Bracket (PFS/PCS/PRS)
Passenger Rear Mounting
Bracket (PFM/PCM/PRM)
Passenger Rear Support
Bracket (PFS/PCS/PRS)
1
®
Tightening Torque (ft-lbs)
6-7
16-18
31-32
56-58
92-94
Passenger Side Step Bar
Rev. 20210801
Required
√
√
X
X
X
Step Pad
Advertisement
Table of Contents
Related Manuals for iArmor EDGE
Summary of Contents for iArmor EDGE
- Page 1 ® IARMOR EDGE™ PART#: IA-N179&N208&N209 Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE √ PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE 16-18 √ STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 ® M8X1.25-30 M8 Lock Washer Plastic Washer M8 Bolt/Nut Plate M8 Flat Washer Hex Bolt M6X1-25 Hex M8X1.25 Nylon M6X1 Nylon M6 Large Flat M6X1-20 T- Bolt Lock Nut Lock Nut Washer Bolt The instruction here is for your reference only. We strongly recommend the professional installer for best result.
- Page 3 ® M8 Bolt/Nut Plate Models without factory threaded inserts in body panel: (1) M8 Flat Washer a. Select (1) M8 Bolt/Nut Plate (Fig 2). Use the welded bolt as (1) M8 Lock Washer a handle, insert the welded nut end through the oval factory (1) M8X1.25-30 Hex Bolt...
- Page 4 ® STEP 4 STEP 5 Attach the Driver Front Support Bracket (DFS/DCS/DRS) to the Driver Front Mounting Bracket (DFM/DCM/DRM) with (1) Move to the Driver Side Center Mounting location, (Fig 8). Re- peat Steps 3-4 to install and assemble the Driver Center M8x1.25-30 Hex Bolt, (2) M8 Flat Washers and (1) M8X1.25...
- Page 5 Adjust the Brackets as necessary to bled Driver Side Step Bar to the Mounting Brackets using (6) move the slots up the body panel away from the edge. Drill the M6X1-20 T-Bolts, (6) M6 Flat Washers and (6) M6X1 Nylon holes toward the outside of the marked slots.
