Woodhaven 7280 Owner's Manual

Band saw fence

Advertisement

Quick Links

7280V2 Hdw. List:

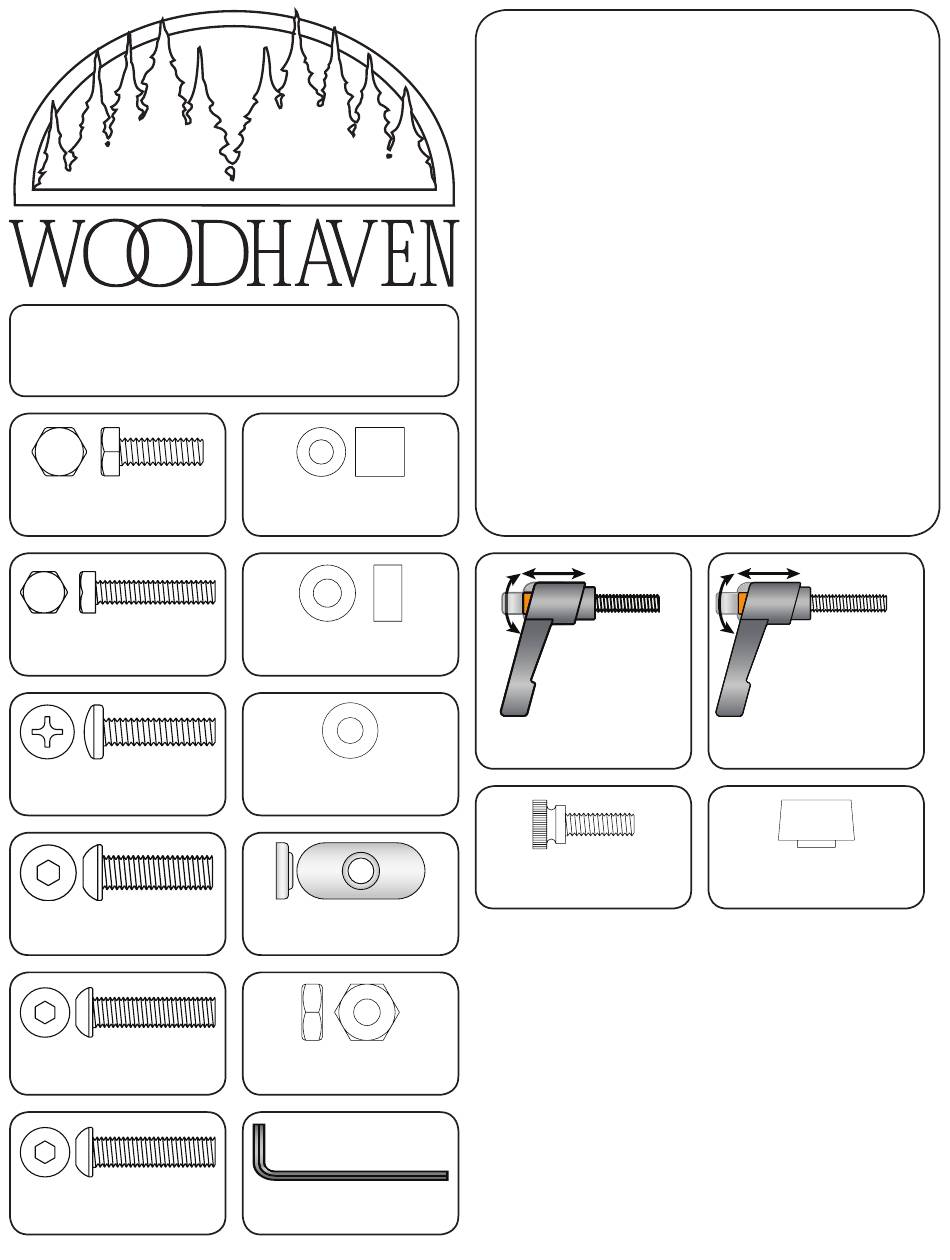

Identify and verify that you have all of the
hardware shown below prior to assembly.
Part#
Description
Qty.
HB020
3/4" Bolt
4
Part#
Description
Qty.
HB040
1-1/4" Bolt
2
Part#
Description
Qty.
5772B
1" Screw
4
Part#
Description
Qty.
MB006 M6 x 20mm Screw 4
Part#
Description
Qty.
MB007 M6 x 25mm Screw 4
Part#
Description
Qty.
MB008 1/4-28 x 1" Screw 4
Part#
Description
Qty.
BUSH5050 1/2" Spacer
2
Part#
Description
Qty.
BUSH525
1/4" Spacer
4
Part#
Description
Qty.
WB002
Washer
18
Part#
Description
Qty.
5760B
Oval Nut
6
Part#
Description
Qty.
NUT015 1/4-20 Nut
4
Part# Description
Qty.
5785 5/32" Allen Wrench 1
Band Saw Fence
Owners Manual
Please Read Carefully!
Additional Parts List:
Parts listed below are not shown in the hardware
drawings. Refer to photos in the instructions:
Part
Description
7280D
Brackets, front and back . . . . . . . . . . . . . . . . 1 pair
7280E
Guides, front and back . . . . . . . . . . . . . . . . . 1 pair
7280C
Angle Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
4024
24" Double Track . . . . . . . . . . . . . . . . . . . . . . . . . .2
4424
24" Ultra Track . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
4575
Track Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Ratchet Handles
adjust to clear
obstructions
Part#
Description
Qty.
5859
Ratchet Handle
4
Part#
Description
Qty.
5505
Thumb Screw
BEFORE BEGINNING
Read the instructions at least once, familiarizing yourself with the
parts before beginning. This Fence bolts directly to existing holes in the
14" Delta, Jet, Ridgid, Powermatic (without extension table) & Porter
Cable band saws. The table must not be over about 16" square. The front
& back table edges must be square to the table top, parallel to each other
and have pre-tapped holes. For assembly, you'll need a 7/16" wrench and
a #3 Phillips screwdriver.
The Band Saw Fence may be able to be adapted to fit other band
saws by drilling four holes in the front and rear Brackets (7280D) to
match the mounting holes in your band saw, and/or in the band saw table
edge. Make sure there are no ribs under the table to interfere.
7280
Quantity
Ratchet Handles
adjust to clear
obstructions
Part#
Description
5863
Ratchet Handle
Part#
Description
5540
Knob
2
Qty.
2
Qty.
2
