Summary of Contents for Woodhaven Angle Ease 1425

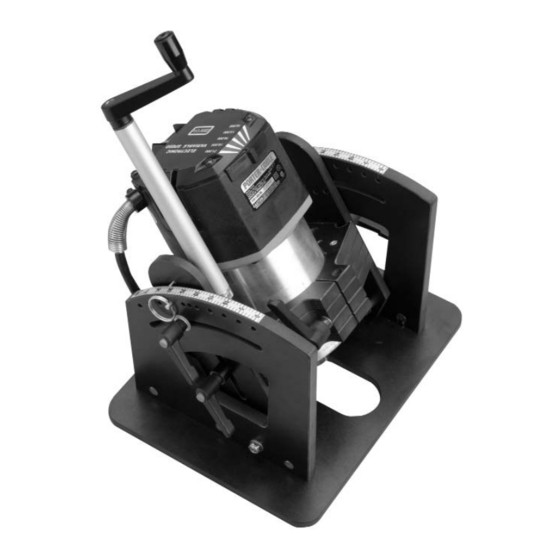

- Page 1 1425 ™ Angle Ease Owners Manual U.S. Patent #6,742,558 Please read carefully 1425 shown with optional 1426 Height Adjuster Knob Tools needed for assembly: Phillips screwdriver Flat head screwdriver...
- Page 2 1425H Hardware Before beginning, identify and verify that you have all the hardware shown List of additional parts not shown in hardware drawings - refer to photos in instructions: Description 1425AS Side/Arm assembly, pair Qty Part# Description Qty Part# Description PS001 spacer WN001...
- Page 3 BEFORE BEGINNING Identify and verify that you have all the parts listed. Read Fig. 1 Ringpin1 the instructions at least once, familiarizing yourself with the parts, before beginning assembly. ASSEMBLY INSTRUCTIONS Set one of the Side/Arm assemblies upright on a bench with the 45º...
- Page 4 Make sure your bit is locked securely in the router collet and that the two height knobs and two angle knobs are tightened securely before using. HEIGHT ADJUSTMENT ACCESSORY Our optional 1426 Height Adjustment Knob makes height adjustments easier. ©Copyright WOODHAVEN INC. 8/4/04 (800)344-6657 or WWW.WOODHAVEN.COM...
