Woodhaven 204 Owner's Manual

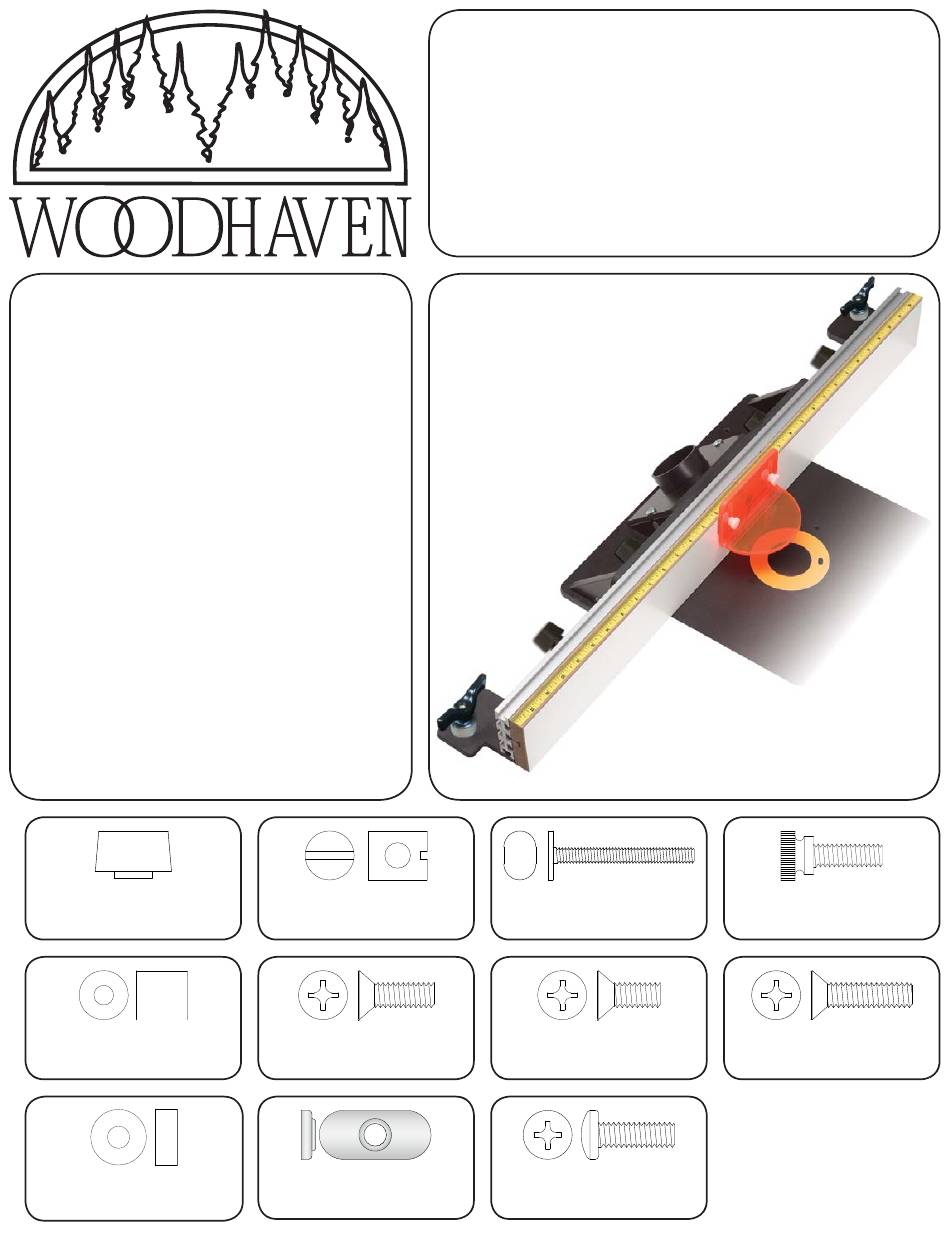

Parts List:

Please identify and verify that you have all of the
parts listed and shown on this page prior to assembly.
Parts listed in this box are shown in photos in the
instructions.
Part Description
204A 48" Aluminum Fence . . . . . . . . . . . . . . 1
204B 24" Fence faces, pair . . . . . . . . . . . . . . . 1
200C Fence Base, set of 2 pcs. . . . . . . . . . . . . 1
200E End Blocks . . . . . . . . . . . . . . . . . . . . . . . . 2
200D Dust Port Blocks . . . . . . . . . . . . . . . . . . 2
281 Dust Port . . . . . . . . . . . . . . . . . . . . . . . . . 1
200F Dust Port Plate . . . . . . . . . . . . . . . . . . . . 1
202G Guard Insert . . . . . . . . . . . . . . . . . . . . . . 1
3724RL Tapes, L & R . . . . . . . . . . . . . . . . . . . . . . . 1
224 Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
200FS Shims . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
200SC Fence Clamps for 202 & 203, pr. . . . . . 1
240 Hold-Down. . . . . . . . . . . . . . . . . . . . . . . . 1
242 Hold-In . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Part# Description
5540 Knob
Part# Description
BUSH004 5/8" Spacer
Part# Description
BUSH002 1/4" Spacer
Quantity
Qty. Part# Description
5793B Barrel Nut
6
Qty. Part# Description
4 MF010 3/4" Screw
Part# Description
Qty.
5760B Oval Nut
2
Router Fence
Owners Manual
Please Read Carefully!
202 Router Fence
shown
Qty. Part# Description
8 5720 2-1/4" T-Bolt
Qty. Part# Description
6 MF006 5/8" Screw
Qty. Part# Description
5 5771B 3/4" Screw
204
Qty. Part# Description
6 5505 Thumb Screw
Qty. Part# Description
4 MF015 1" Screw
Qty.
2
Qty.
2
Qty.
1
