Additional Parts List:
Parts listed below are not shown in the hardware
drawings. Refer to photos in the instructions:
Part
Description
1470AS
Side/Arm Assembly, pair . . . . . . . . . . . . . . . . 1
1470C
7-1/2" Double Track . . . . . . . . . . . . . . . . . . . . . 2
1475A1
Adjuster Arm . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1475A2
Arm Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1475B
Height Adjuster . . . . . . . . . . . . . . . . . . . . . . . . 1
Ringpin1
Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
5863
1-1/8" Knob . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
5864
1-5/8" Knob . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
In addition, you will get ONE of the motor
blocks and plates below, depending on the
Angle-Ease model you purchased:
1470B
3 .5" Motor Block . . . . . . . . . . . . . . . . . . . . . . . . 1
1472B
4 .2" Motor Block . . . . . . . . . . . . . . . . . . . . . . . . 1
1470P
Angle Ease Router Table Plate . . . . . . . . . . . 1
6000PA
Horizontal Table Angle-Ease Plate . . . . . . . . 1
Part#
Description
Qty.
MF010
3/4" Screw
8
Part#
Description
Qty.
5760B
Oval Nut
12
Part#
Description
Qty.
5791B
Barrel Nut
3
Quantity
Part#
Description
Qty.
MF015
1" Screw
6
Part#
Description
Qty.
BUSH002 1/4" Spacer
4
Part#
Description
Qty.
WN001
Nylon washer
4

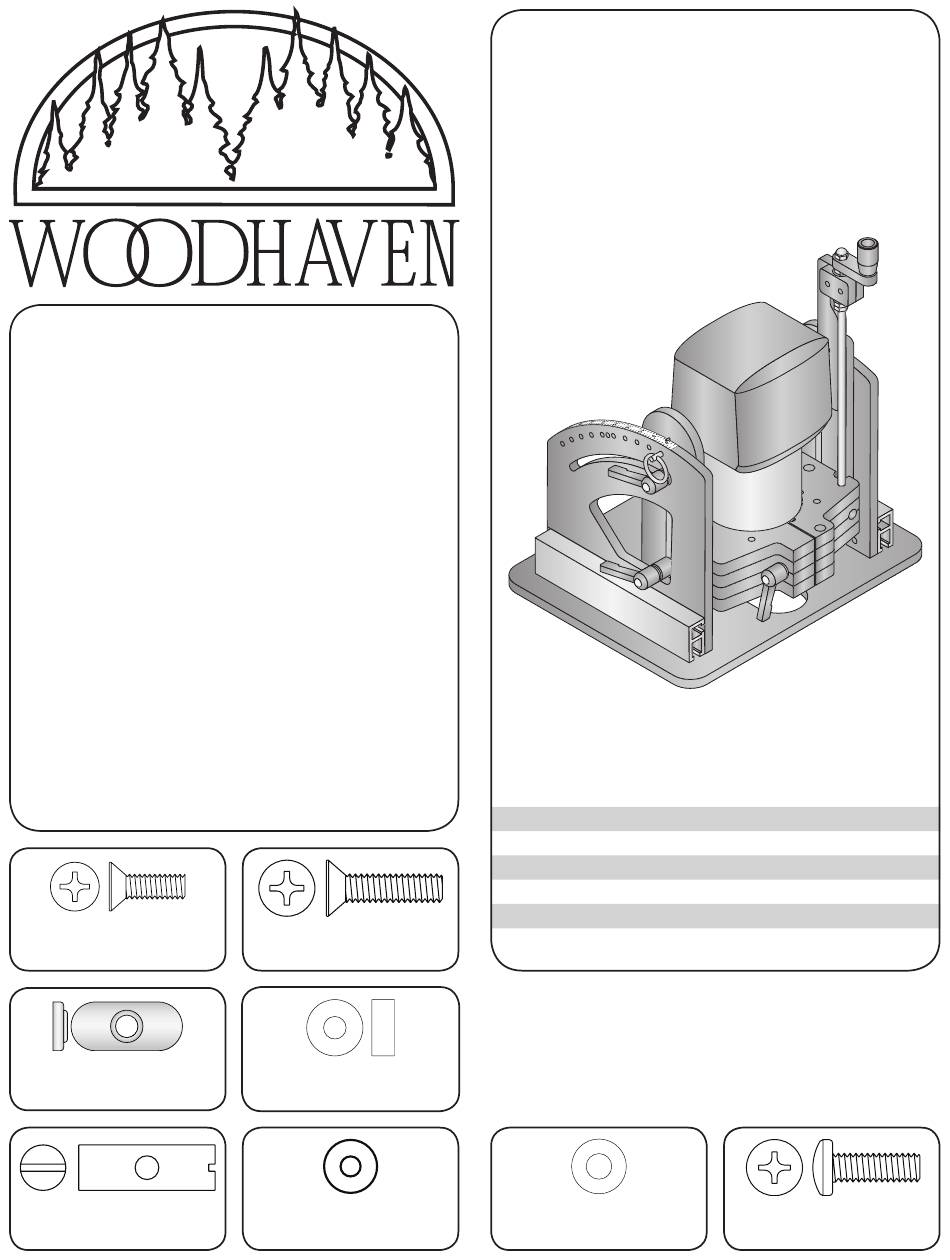

1470 & 1472 Angle-Ease
6002 & 6004 Angle-Ease
Owners Manual
Please Read Carefully!

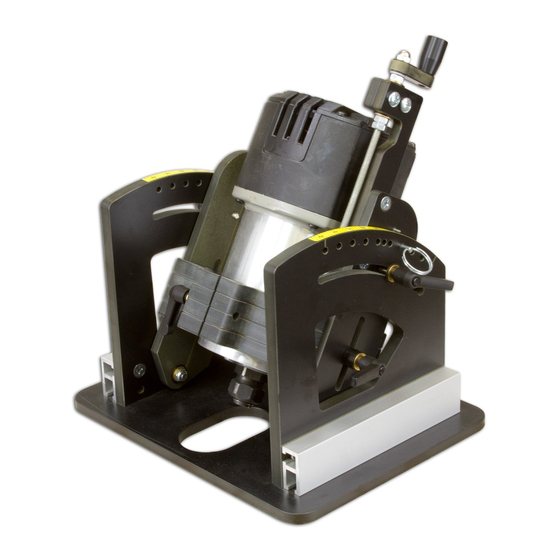

The Angle-Ease fits
motors from these routers:
Router Model
ANGLE-EASE
Porter Cable 7518
Milwaukee 5625
Porter Cable 892
Porter Cable 690
DeWalt 616/618
Bosch 1617/1618
BEFORE BEGINNING
Identify and verify that you have all the parts listed.
Read the instructions at least once, familiarizing yourself with
the parts, before beginning assembly. You'll need two 7/16"
wrenches, a #3 Phillips screwdriver and a flat blade screwdriver.
Part#
Description
WB002
Washer
or
FITS 3.5"
FITS 4.2"
ANGLE-EASE
No
No
W/ Shim
Yes
W/ Adapter R1
Yes
W/ Adapter R1
Yes
W/ Adapter R1
Yes
W/ Adapter R1
Qty.
Part#
Description
4
5771B
3/4" Screw
™
Yes
Qty.
2
Advertisement
Related Manuals for Woodhaven Angle-Ease 1470
Summary of Contents for Woodhaven Angle-Ease 1470
- Page 1 1470 & 1472 Angle-Ease ™ 6002 & 6004 Angle-Ease Owners Manual Please Read Carefully! Additional Parts List: Parts listed below are not shown in the hardware drawings. Refer to photos in the instructions: Part Description Quantity 1470AS Side/Arm Assembly, pair . . . . . . . . . . . . . . . . 1 1470C 7-1/2”...
- Page 2 INSTALL HEIGHT ADJUSTER ARM Select the side/arm assembly (1470AS) that has the arm with the squared-off corner and attach the adjuster arm (1475A1) to it using two 3/4” screws (MF010). MF010 x2 Pivot the arm as necessary to access the lower mounting hole in the arm. ATTACH HARDWARE Align the pointer in the arm on both side/arm assemblies with the 10º mark on the scale. Insert a pin (Ringpin1) through the 10º hole in the side and into the WN001 hole in the arm. Install a washer (WB002) and a nylon washer (WN001) on the stud of the knobs (5863). Lay the side/arm assembly flat on the arm and slide Ringpin1 another nylon washer (WN001) between the arm and the side. Use a credit card or putty knife to align the washer with the curved slot in the side and the threaded hole in the arm. Insert the stud of the knob thru the curved slot in the side, screwing it into the arm, then tighten the knob. 5863 WB002 Insert 1” screws (MF015) thru the three countersunk holes in each side and WN001 start an oval nut (5760B - flat side first) on each screw. Slide a 7-1/2” double track (1470C) on to the oval nuts on each side. Center the double track end-to-end on the side, check the side for square on a flat surface and tighten the screws.
- Page 3 ATTACH ASSEMBLY TO PLATE Insert 3/4” screws (MF010) thru the six countersunk holes in the router plate (1470P or 6000PA) and start oval nuts (5760B - flat side first) on the ends of the screws. Line the oval nuts up with the T-slot in the double tracks ” f and slide the assembly on to the oval nuts. / 1 6 If you have the 1470P plate, position the assembly so the front edge of the sides are 15/16” from the front edge of the plate and tighten the screws. The opening in the router block should be over the bit opening in the router plate. If you have the 6000PA plate (not shown), position the assembly so the back edge of the sides are flush with the back MF010 x6 edge of the plate and tighten the screws. The opening in the 5760B x6 router block should be over the bit opening in the router plate. 1475B INSTALL REMAINDER OF HEIGHT ADJUSTER Install a barrel nut (5791B) in the hole in the front of the router block. Use a flat blade screwdriver to align the threaded 5771B x2 hole in the barrel nut with the cross hole in the router block.
- Page 4 Height Adjuster first, then retighten opposite knob. Turn the crank handle on the Height Adjuster to move the router up or down. If you cannot achieve the desired height, you may have to reposition the router in the router block (see router installation section above). USING THE ANGLE EASE There are two ratchet knobs for locking the height and two for locking the angle. Perform one of these adjustments at a time instead of attempting both adjustments at the same time. Make sure your bit is locked securely in the router collet and that all knobs are tightened securely before using. Depending on your table opening size, you may have to set the Angle-Ease at 0º degrees to insert it in your router table. To reduce the risk of injury we recommend that you tilt the cutter into the fence (or table) hiding more of the cutter compared to tilting the cutter away from the fence (or table) and exposing more of the cutter. ©Copyright WOODHAVEN INC. 5/15/15 (800) 344-6657 or WWW.WOODHAVEN.COM...
