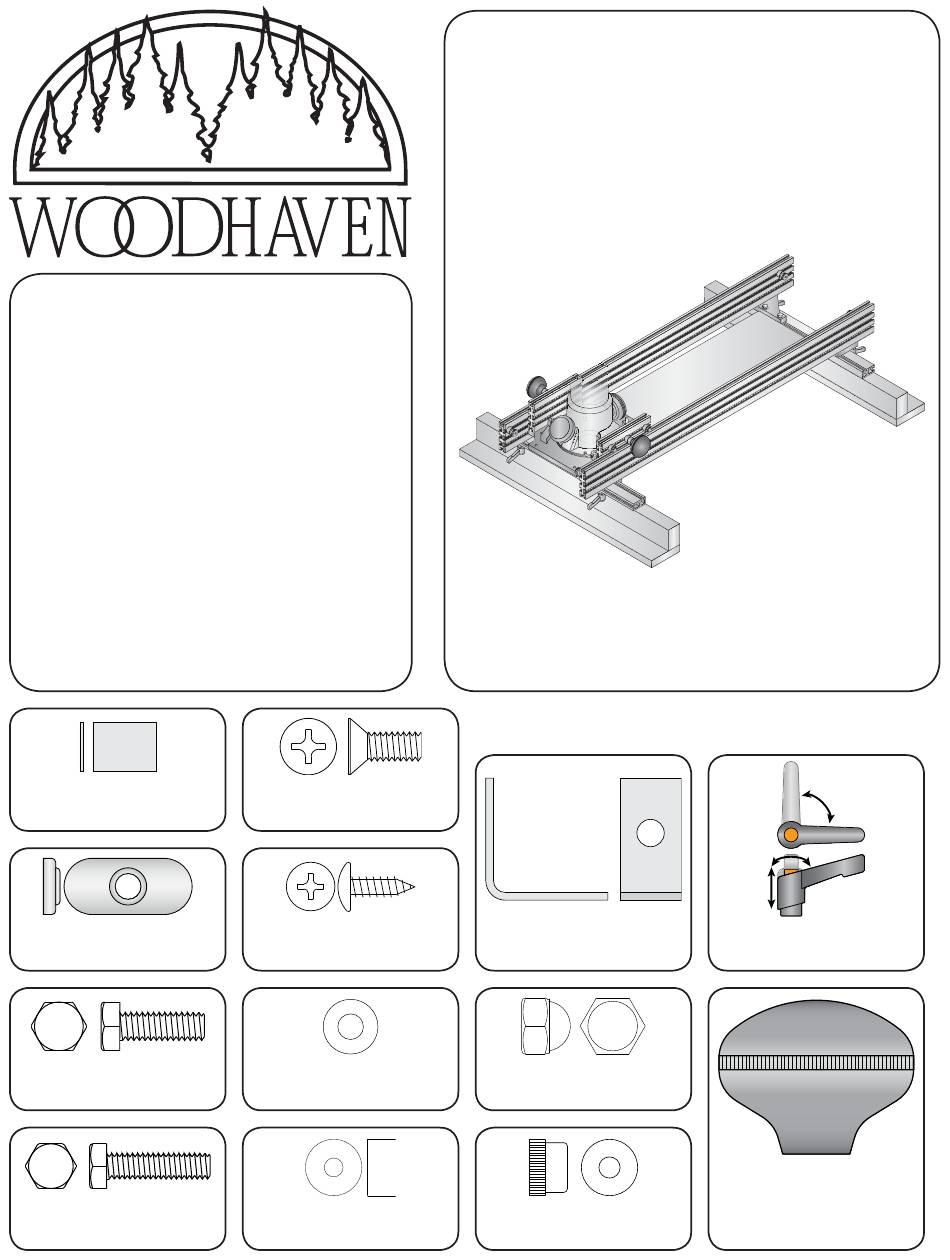

Parts List:
Please identify and verify that you have all of
the hardware shown. Please refer to photos in the
instructions for the parts listed below:
Part
Description
3000B
Brackets, 4 pc. set (2 pairs) . . . . . . . . . . . . . 1
3000P
NoDrill Plate . . . . . . . . . . . . . . . . . . . . . . . . . 1
4973
NoDrill Plate Hdw. . . . . . . . . . . . . . . . . . . . . 1
4406
6" Ultra Track . . . . . . . . . . . . . . . . . . . . . . . . 2
Model 3000 also includes the parts below:
4436
36" Ultra Track . . . . . . . . . . . . . . . . . . . . . . . 2
4016
16" Double Track . . . . . . . . . . . . . . . . . . . . . 2
Model 3002 also includes the parts below:
4448
48" Ultra Track . . . . . . . . . . . . . . . . . . . . . . . 2
4024
24" Double Track . . . . . . . . . . . . . . . . . . . . . 2
Model 3004 also includes the parts below:
4460
60" Ultra Track . . . . . . . . . . . . . . . . . . . . . . . 2
4032
32" Double Track . . . . . . . . . . . . . . . . . . . . . 2
Part#
Description
Qty.
PAD1
Glide Pad
8
Part#
Description
Qty.
5760B
Oval Nut
12
Part#
Description
Qty.
HB020
3/4" Bolt
6
Part#
Description
Qty.
HB030
1" Bolt
14
Quantity
Part#
Description
Qty.
MF006
5/8" screw
4
Part#
Description
Qty.
STP004
1/2" Screw
16
Part#
Description
Qty.
WS002
Washer
22
Part#
Description
Qty.
BUSH050 3/8" Spacer
10
3000, 3002 & 3004

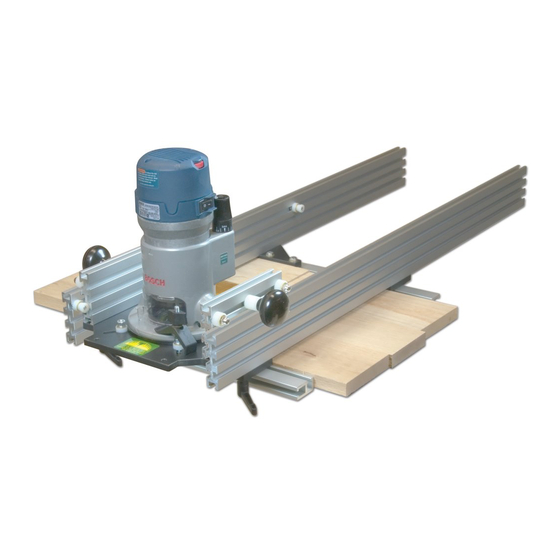

Planing Sled
Owners Manual
Please Read Carefully!
BEFORE BEGINNING
The Planing Sled must be setup and used on a flat surface.
Identify and verify that you have all the parts listed. You'll need a
7/16" wrench for assembly. Read the instructions carefully at least
once before beginning.
Part#
Description
CAB015
Angle Bracket
Part#
Description
NUT006
Acorn Nut
Part#
Description
5521
1/4" Knob
Qty.
Part#
Description
8
5860
Ratchet Handle
Qty.
4
Part#
Description
5590
Knob
Qty.
2
Qty.
4
Qty.
2
Advertisement
Table of Contents
Related Manuals for Woodhaven 3000
Summary of Contents for Woodhaven 3000
- Page 1 4406 6" Ultra Track ......2 Model 3000 also includes the parts below: 4436 36" Ultra Track ..... . . 2 4016 16"...
- Page 2 ASSEMBLY - ROUTER SLED Follow the directions in the 4973 Plate Hardware and attach your router to the Router Plate (3000P). The router does not need to be perfectly centered on the plate. Position your router on the plate so the router handles (if you haven't removed them) are parallel to one of the router plate edges and position the router to take the best advantage of the plates mounting slots...
- Page 3 ASSEMBLY - BRACKETS & RAILS Install a washer (WS002) on eight of the 1" bolts HB030 x2 per bracket (HB030). From the ribbed side of the Sled Bracket, insert WS002 x2 per bracket the bolts through the holes in the Sled Brackets 5760B x2 per bracket (3000B - 4 brackets - 2 pairs) and start an oval nut (5760B), flat side first, on the end of each...
- Page 4 The rails must be straight and longer than part and the rails so the & the part length by at least 12" (for the 3000 Planing Sled) rails remain flat on or 16-20" (for the 3002 & 3004 Planing Sleds).
- Page 5 12" (for the a good choice for odd shaped parts that do not have parallel 3000 Planing Sled) or 16-20" (for the 3002 & 3004 Planing sides. Maximum depth of cut without repositioning the part Sleds).
- Page 6 12" (for the 3000 Planing Sled) or 16-20" (for the necessary so they're parallel, for this method to work. Fasten 3002 &...
- Page 7 PLANING Install the necessary bit (must have at least a 2-1/2" Here we describe how to plane a part using Option A overall length) in your router and attach the router to the described earlier. Make adjustments as necessary if using Router Sled.
- Page 8 CUT ISSUE FIX - STEPPED CUT If you experience a stepped cutting pattern, rotate the router/base slightly left-to-right by loosening and slightly raising or lowering the left or right side spacers/glides. ©Copyright WOODHAVEN INC. 4/6/16 (800) 344-6657 or WWW.WOODHAVEN.COM...
